购物车通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWR221T-30-3000FRES 300 OHM 1% 30W TO220-2 Bourns Inc. |
4,573 |
|
规格书 |
PWR221T-30 | Tube | Active | 300 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
W1M1000JRES 100 OHM 5% 1W AXIAL Bourns Inc. |
795 |
|
规格书 |
W | Cut Tape (CT) | Active | 100 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±300ppm/°C | -55°C ~ 200°C | Axial | - | - | 2 | - |
|
W3M47R0JRES 47 OHM 5% 3W AXIAL Bourns Inc. |
676 |
|
规格书 |
W | Cut Tape (CT) | Active | 47 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±300ppm/°C | -55°C ~ 200°C | Axial | 0.217" Dia x 0.610" L (5.50mm x 15.50mm) | - | 2 | - |
|

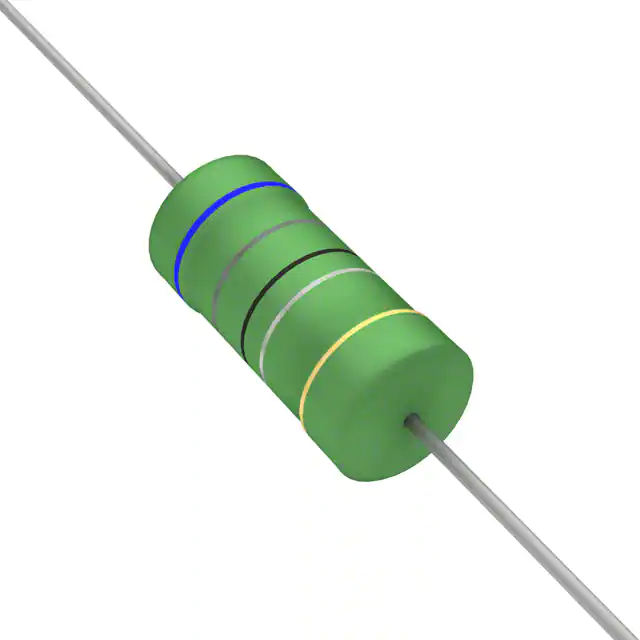

FW20A6R80JARES 6.8 OHM 5% 2W AXIAL Bourns Inc. |
1,770 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 6.8 Ohms | ±5% | 2W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - | 2 | - |
|

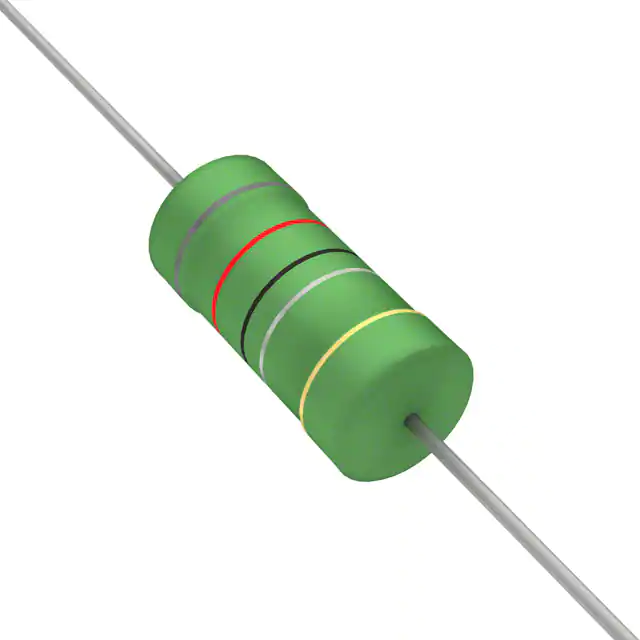

FW20A8R20JARES 8.2 OHM 5% 2W AXIAL Bourns Inc. |
533 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 8.2 Ohms | ±5% | 2W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - | 2 | - |
|

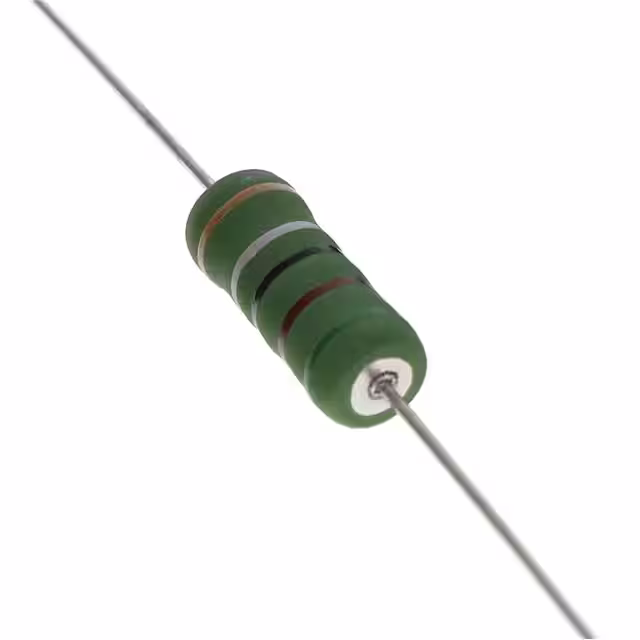

FW50A5R10JARES 5.1 OHM 5% 5W AXIAL Bourns Inc. |
226 |
|
规格书 |
FWxxA | Tape & Reel (TR) | Active | 5.1 Ohms | ±5% | 5W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
PWR220T-35-1502JRES 15K OHM 5% 35W TO220-2 Bourns Inc. |
3,501 |
|
规格书 |
PWR220T-35 | Tube | Active | 15 kOhms | ±5% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR221T-30-12R0FRES 12 OHM 1% 30W TO220-2 Bourns Inc. |
2,001 |
|
规格书 |
PWR221T-30 | Tube | Active | 12 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
PWR220T-20-5R60JRES 5.6 OHM 5% 20W TO220-2 Bourns Inc. |
3,377 |
|
规格书 |
PWR220T-20 | Tube | Active | 5.6 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR221T-30-3300FRES 330 OHM 1% 30W TO220-2 Bourns Inc. |
4,634 |
|
规格书 |
PWR221T-30 | Tube | Active | 330 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
