购物车通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WS5M22R0JRES 22 OHM 5% 5W AXIAL Bourns Inc. |
1,088 |
|
规格书 |
WS | Cut Tape (CT) | Active | 22 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|
W5M39R0JRES 39 OHM 5% 5W AXIAL Bourns Inc. |
332 |
|
规格书 |
W | Cut Tape (CT) | Active | 39 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±300ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|
WS3M47R0JRES 47 OHM 5% 3W AXIAL Bourns Inc. |
702 |
|
规格书 |
WS | Cut Tape (CT) | Active | 47 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 200°C | Axial | 0.217" Dia x 0.610" L (5.50mm x 15.50mm) | - | 2 | - |
|

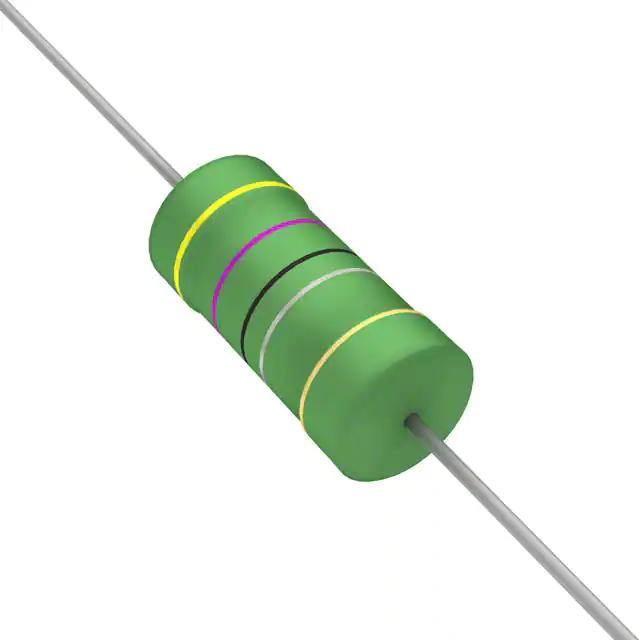

FW20A4R70JARES 4.7 OHM 5% 2W AXIAL Bourns Inc. |
975 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 4.7 Ohms | ±5% | 2W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - | 2 | - |
|
PWR220T-35-30R0JRES 30 OHM 5% 35W TO220-2 Bourns Inc. |
4,973 |
|
规格书 |
PWR220T-35 | Tube | Active | 30 Ohms | ±5% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-1R00JRES 1 OHM 5% 35W TO220-2 Bourns Inc. |
100 |
|
规格书 |
PWR220T-35 | Tube | Active | 1 Ohms | ±5% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-50R0JRES 50 OHM 5% 35W TO220-2 Bourns Inc. |
4,584 |
|
规格书 |
PWR220T-35 | Tube | Active | 50 Ohms | ±5% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
PWR220T-20-1001FRES 1K OHM 1% 20W TO220-2 Bourns Inc. |
2,003 |
|
规格书 |
PWR220T-20 | Tube | Active | 1 kOhms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-4R00FRES 4 OHM 1% 35W TO220-2 Bourns Inc. |
3,755 |
|
规格书 |
PWR220T-35 | Tube | Active | 4 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-R100FRES 0.1 OHM 1% 35W TO220-2 Bourns Inc. |
1,989 |
|
规格书 |
PWR220T-35 | Tube | Active | 100 mOhms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
