购物车散热器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

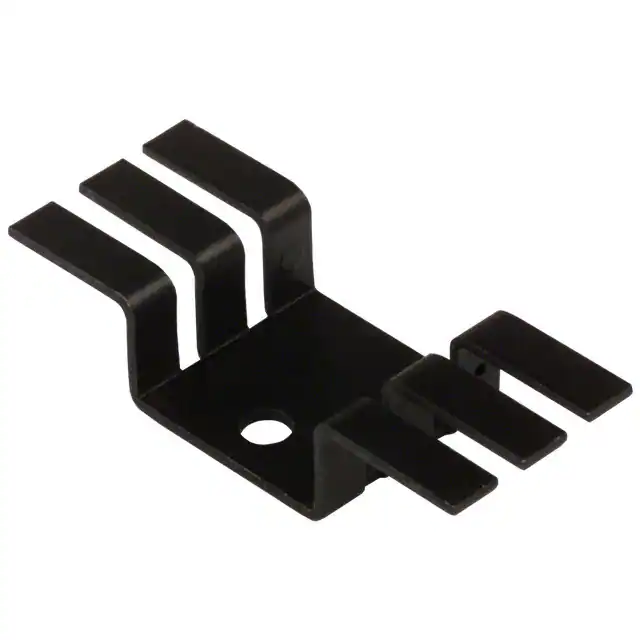

507002B00000GHEATSINK TO-220 BLK |
866 |
|
规格书 |
Hat Section 5070 | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | 15.60°C/W | Aluminum | Black Anodized |
|
V5618BHEATSINK ALUM ANOD |
617 |
|
规格书 |
- | Bulk | Active | Top Mount | 14-DIP and 16-DIP | Press Fit | Rectangular, Fins | 0.748" (19.00mm) | 0.250" (6.35mm) | - | 0.189" (4.80mm) | - | - | 46.00°C/W | Aluminum | Black Anodized |
|
634-10ABPEHEATSINK TO-220 VERT MT BLK 1" |
17,022 |
|
规格书 |
634 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | - | - | - | Aluminum | Black Anodized |
|

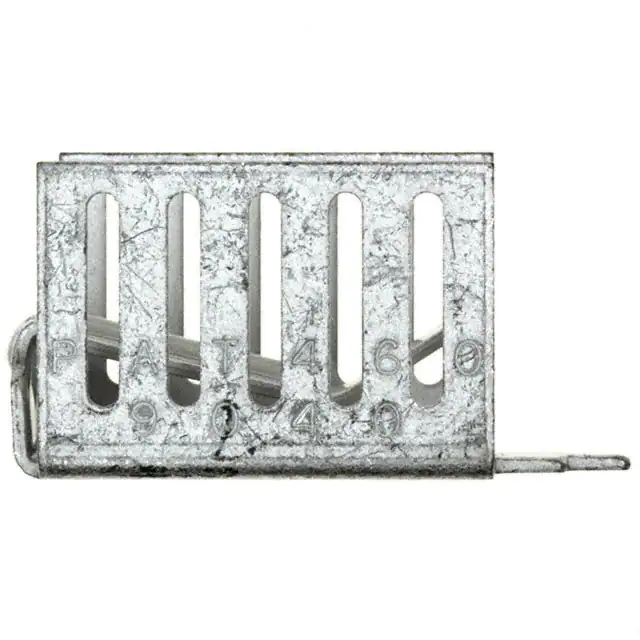

7141DGBOARD LEVEL HEATSINK .515"TO-220 |
409 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.780" (19.81mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | 1.0W @ 30°C | 10.00°C/W @ 200 LFM | 20.30°C/W | Copper | Tin |
|

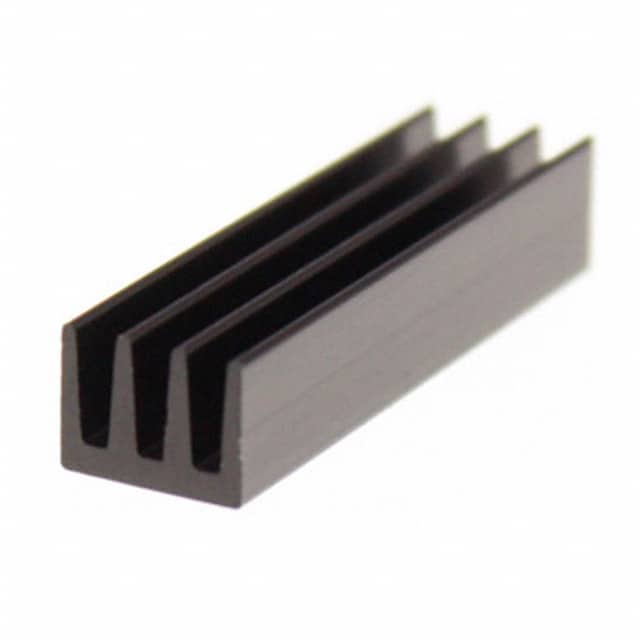

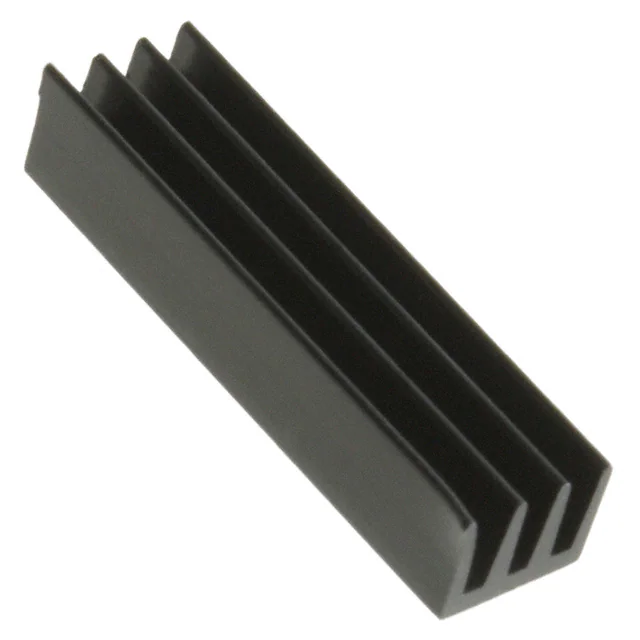

V5618CHEATSINK ALUM ANOD |
400 |
|
规格书 |
- | Bulk | Active | Top Mount | 18-DIP | Press Fit | Rectangular, Fins | 0.900" (23.00mm) | 0.250" (6.35mm) | - | 0.189" (4.80mm) | - | - | 40.00°C/W | Aluminum | Black Anodized |
|
7-338-1PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
375 |
|
规格书 |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 3.0W @ 40°C | - | 12.70°C/W | Aluminum | Black Anodized |
|

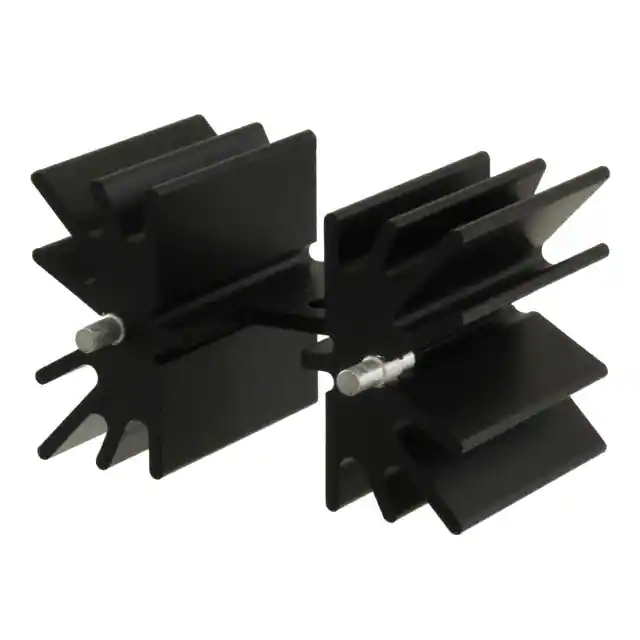

647-10ABEPHEATSINK TO-220 W/PINS BLK 1" |
1,978 |
|
规格书 |
647 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | 6.0W @ 42°C | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
580200B00000GHEATSINK 14-16 DIP BLK ANODIZED |
1,694 |
|
规格书 |
- | Bag | Active | Top Mount | 14-DIP and 16-DIP | Press Fit, Slide On | Rectangular, Fins | 0.890" (22.61mm) | 0.600" (15.24mm) | - | 0.410" (10.42mm) | 1.0W @ 20°C | 12.00°C/W @ 200 LFM | 20.00°C/W | Aluminum | Black Anodized |
|
|
HSB36-353510HEAT SINK, BGA, 35 X 35 X 10 MM, |
610 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | 5.9W @ 75°C | 4.30°C/W @ 200 LFM | 12.72°C/W | Aluminum Alloy | Black Anodized |
|
TGH-0130-01ALUMINIUM HEAT SINK 13X13MM |
6,817 |
|
规格书 |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 0.512" (13.00mm) | 0.512" (13.00mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | Clean Anodized |
|

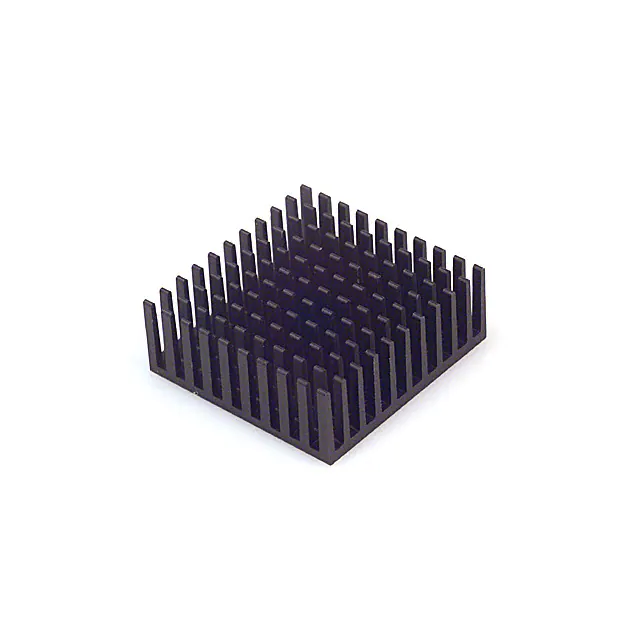

628-65ABHEATSINK CPU 43MM SQ BLK H=.65" |
1,181 |
|
规格书 |
628 | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.750" (44.45mm) | 1.700" (43.18mm) | - | 0.650" (16.51mm) | 3.0W @ 20°C | 2.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
|
HSB35-272725HEAT SINK, BGA, 27 X 27 X 25 MM, |
214 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.984" (25.00mm) | 8.6W @ 75°C | 2.90°C/W @ 200 LFM | 8.74°C/W | Aluminum Alloy | Black Anodized |
|

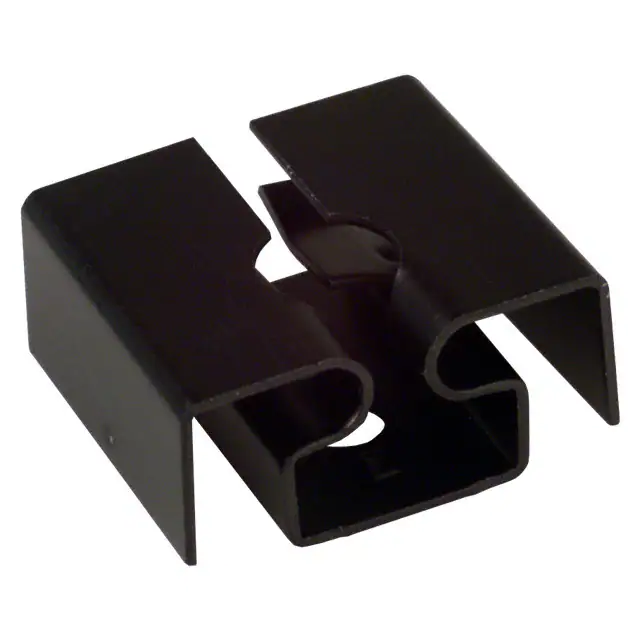

574102B00000GHEATSINK TO-220 CLIP-ON BLK |
3,951 |
|
规格书 |
- | Bag | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 1.5W @ 40°C | 8.00°C/W @ 500 LFM | 23.20°C/W | Aluminum | Black Anodized |
|

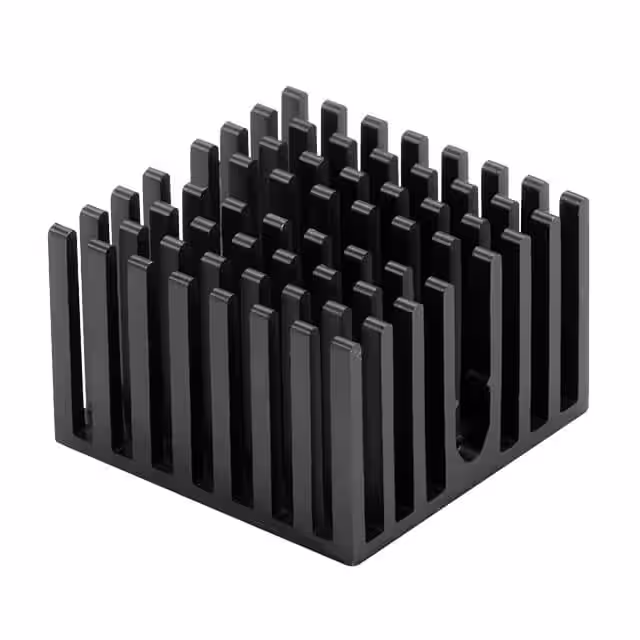

HSB19-272718HEAT SINK, BGA, 27 X 27 X 18 MM |
490 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.709" (18.00mm) | 6.8W @ 75°C | 4.50°C/W @ 200 LFM | 11.11°C/W | Aluminum Alloy | Black Anodized |
|

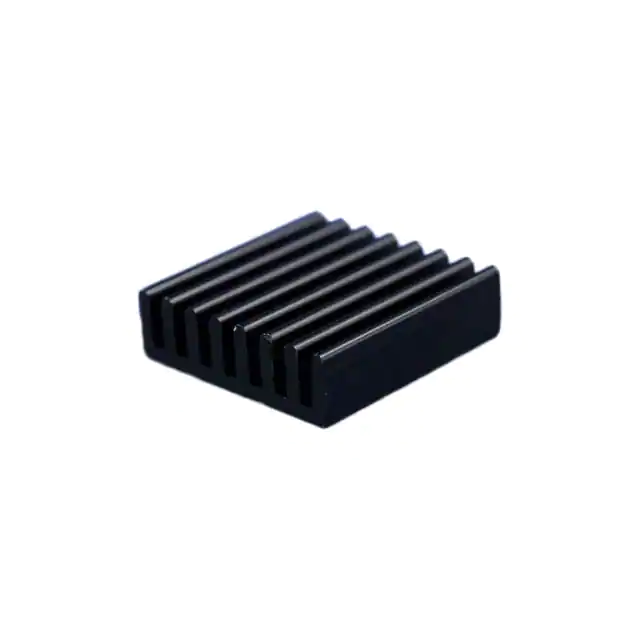

TGH-0200-02ALUMINIUM HEAT SINK 20X20MM |
899 |
|
规格书 |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | Black Anodized |
|

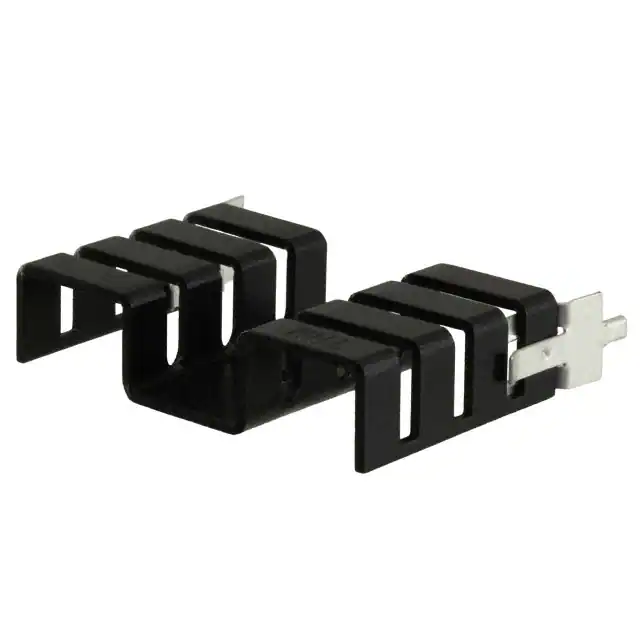

7019B-MTGHEATSINK TO-220 TAB FOLD 25.4MM |
2,514 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.550" (39.37mm) | - | 0.375" (9.52mm) | 3.0W @ 40°C | 8.00°C/W @ 100 LFM | 11.00°C/W | Aluminum | Black Anodized |
|

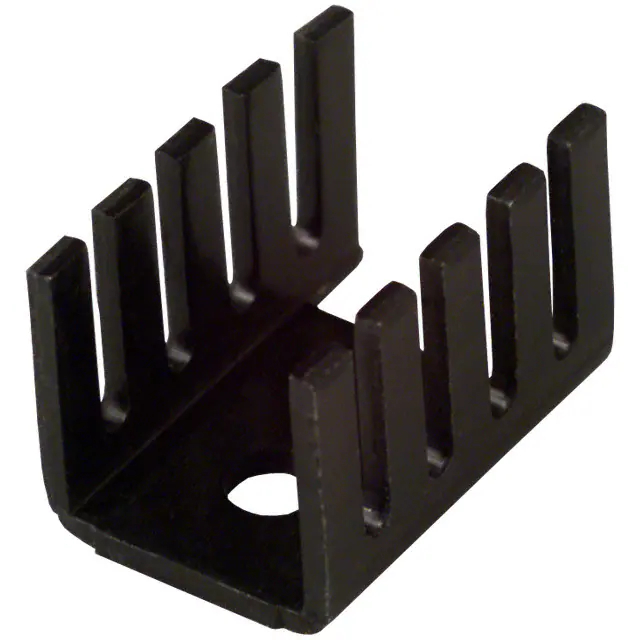

577404B00000GHEATSINK TO-202 LOW PROFILE .5" |
5,333 |
|
规格书 |
- | Bag | Active | Board Level | TO-202 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | 2.0W @ 50°C | 10.00°C/W @ 200 LFM | 24.00°C/W | Aluminum | Black Anodized |
|
634-20ABPEHEATSINK TO-220 VERT MT BLK 2" |
47,767 |
|
规格书 |
634 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | - | - | - | Aluminum | Black Anodized |
|
624-45ABHEATSINK CPU 21MM SQ W/OUT ADH |
936 |
|
规格书 |
624 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.450" (11.43mm) | - | 15.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS015015004-SF-4CHEATSINK 15X15X4MM |
189 |
|
规格书 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.157" (4.00mm) | - | 47.08°C/W @ 200 LFM | - | Aluminum | Black Anodized |
