| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

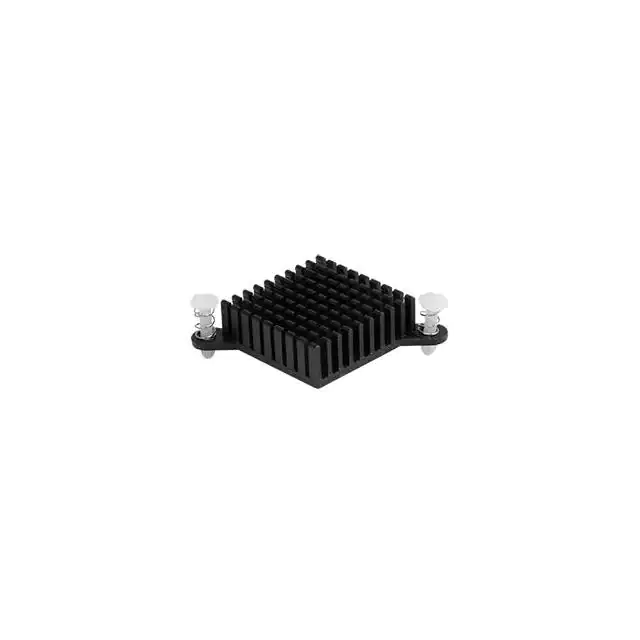

HSB25-282810HEAT SINK, BGA, 28.5 X 28.5 X 10 |
1,544 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.122" (28.50mm) | 1.122" (28.50mm) | - | 0.394" (10.00mm) | 4.87W @ 75°C | 5.10°C/W @ 200 LFM | 15.41°C/W | Aluminum Alloy | Black Anodized |
|

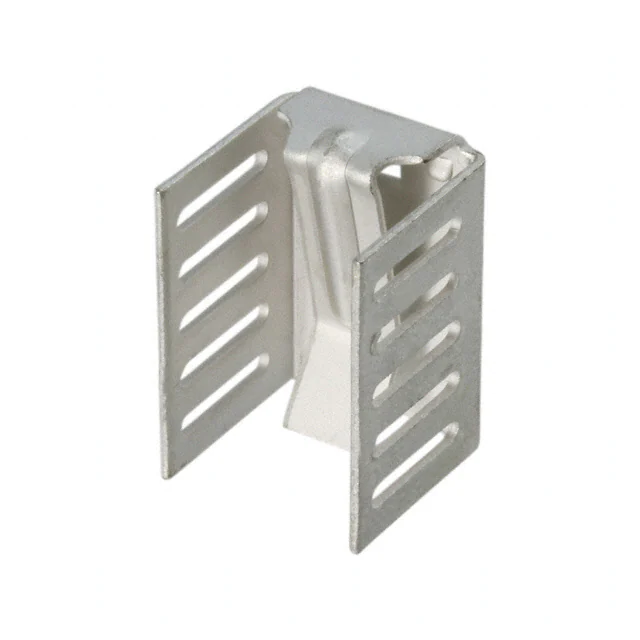

7139DGHEATSINK TO-220 TIN CLIP-ON 13MM |
3,129 |
|
规格书 |
- | Bulk | Active | Board Level | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.780" (19.81mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | 1.5W @ 50°C | 8.00°C/W @ 500 LFM | 28.30°C/W | Copper | Tin |
|

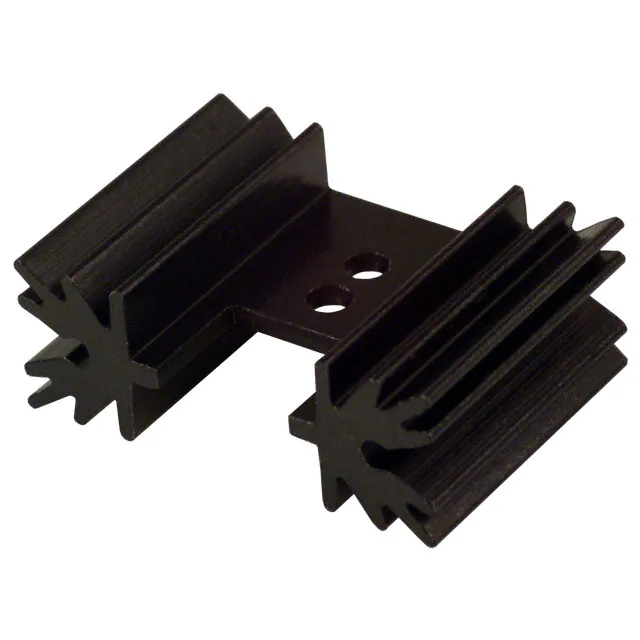

531002B00000GHEATSINK TO-220 BLACK 1" |
2,312 |
|
规格书 |
- | Box | Active | Board Level, Vertical | TO-220, TO-202 | Bolt On | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 3.0W @ 40°C | 4.00°C/W @ 400 LFM | 13.40°C/W | Aluminum | Black Anodized |
|

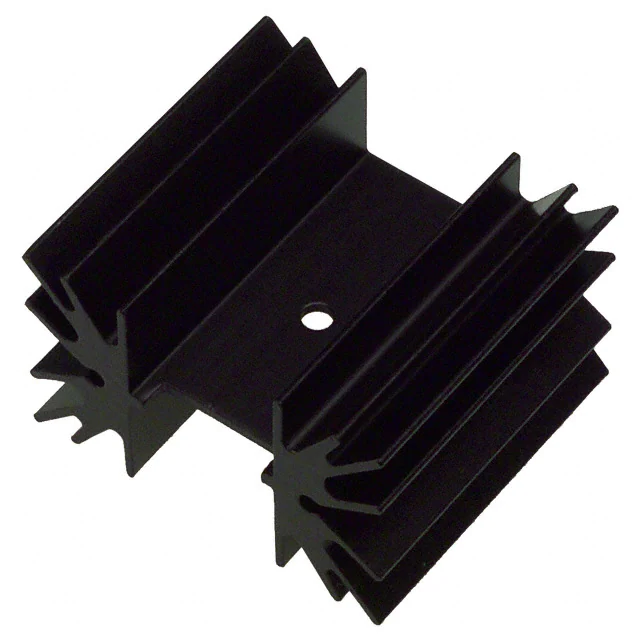

529802B00000GHEATSINK TO-220 10W H=1.5" BLK |
8,427 |
|
规格书 |
- | Box | Active | Board Level, Vertical | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 8.0W @ 40°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

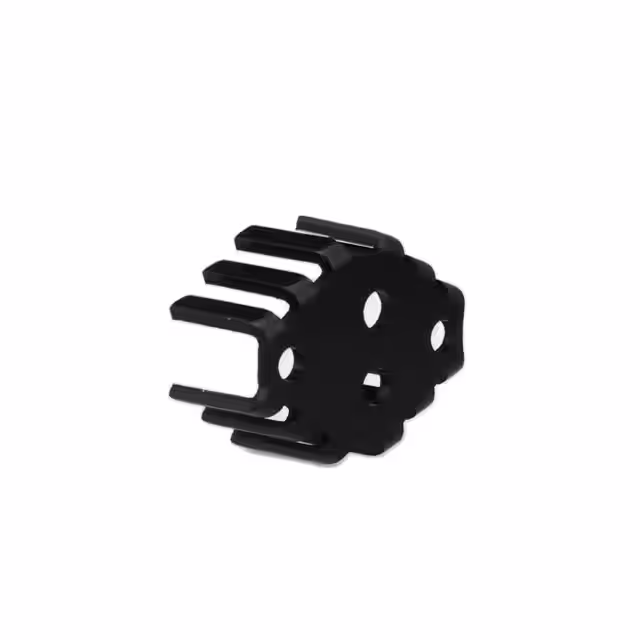

575703B00000GBOARD LEVEL HEAT SINK |
2,133 |
|
规格书 |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 0.750" (19.05mm) | 2.0W @ 30°C | 4.00°C/W @ 200 LFM | 13.40°C/W | Aluminum | Black Anodized |
G.jpg)
|

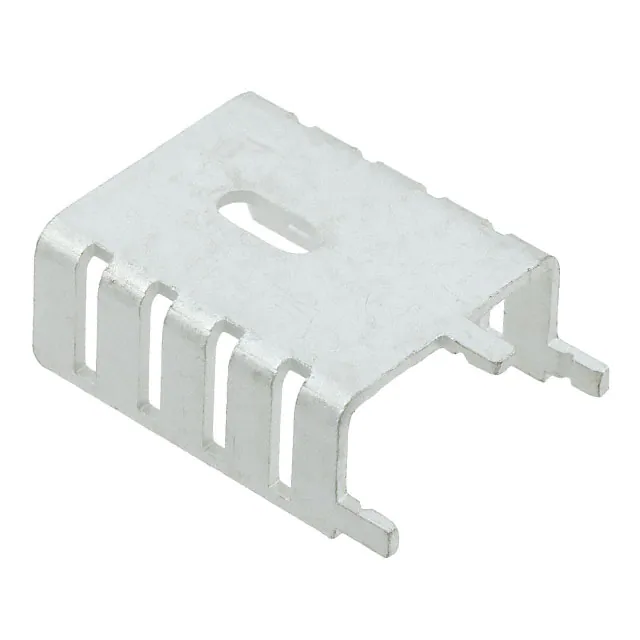

6030D(COPPER)GBOARD LEVEL HEAT SINK |
432 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 12.50°C/W | Copper | Tin |
|
V5220XHEATSINK ANOD ALUM W/PIN TO-220 |
606 |
|
规格书 |
- | Tray | Active | Board Level, Vertical | TO-220 | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 1.260" (32.00mm) | - | 0.787" (19.99mm) | - | - | 8.00°C/W | Aluminum | Black Anodized |
|
TGH-0130-03ALUMINIUM HEAT SINK 35X13MM |
297 |
|
规格书 |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 1.378" (35.00mm) | 0.512" (13.00mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-PCB1074HEATSINK TO-263 COPPER |
11,043 |
|
规格书 |
- | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | - | Rectangular, Fins | 0.500" (12.70mm) | 1.031" (26.20mm) | - | 0.401" (10.20mm) | - | 9.50°C/W @ 200 LFM | 18.00°C/W | Copper | Tin |
|
V2277E1CPU HEATSINK, CROSS CUT, AL6063, |
292 |
|
规格书 |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | - | 26.00°C/W | Aluminum Alloy | Black Anodized |
|
576802B03100GHEAT SINK HORIZ PLUG-IN TO-220 |
13,633 |
|
规格书 |
- | Bulk | Active | Board Level | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.0W @ 30°C | 7.00°C/W @ 400 LFM | 27.30°C/W | Aluminum | Black Anodized |
|
625-45ABHEATSINK CPU 25MM SQ H=.45" BLK |
2,168 |
|
规格书 |
625 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.450" (11.43mm) | - | 8.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|

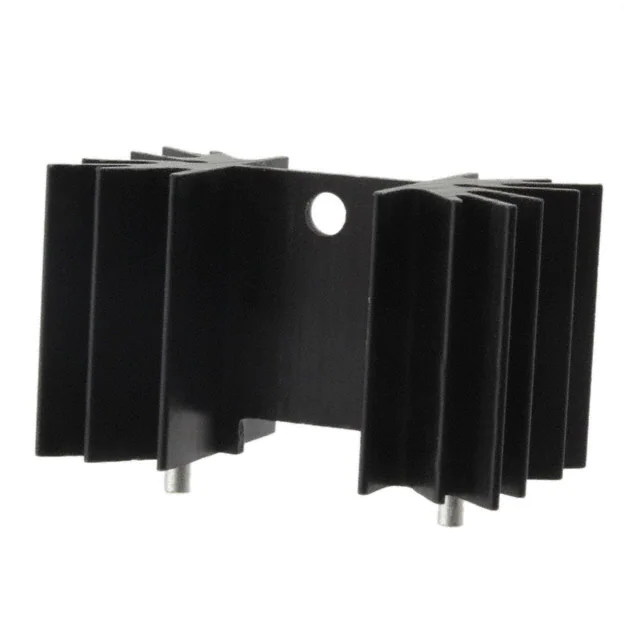

529701B02500GHEATSINK TO-218 SOLDER PIN |
16,835 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 12.0W @ 70°C | 4.00°C/W @ 200 LFM | 5.50°C/W | Aluminum | Black Anodized |
|

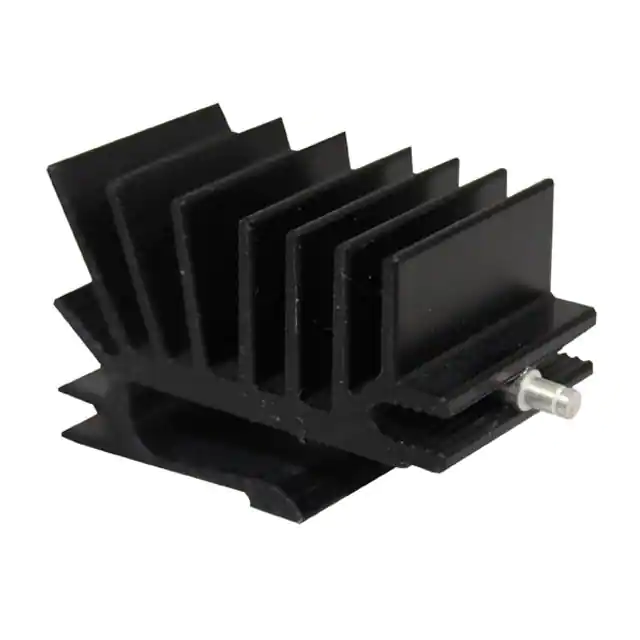

M47118B011000GMAX CLIP HEATSINK |
607 |
|
规格书 |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 1.180" (29.97mm) | 0.764" (19.40mm) | - | 1.240" (31.50mm) | - | - | - | Aluminum | Black Anodized |
|

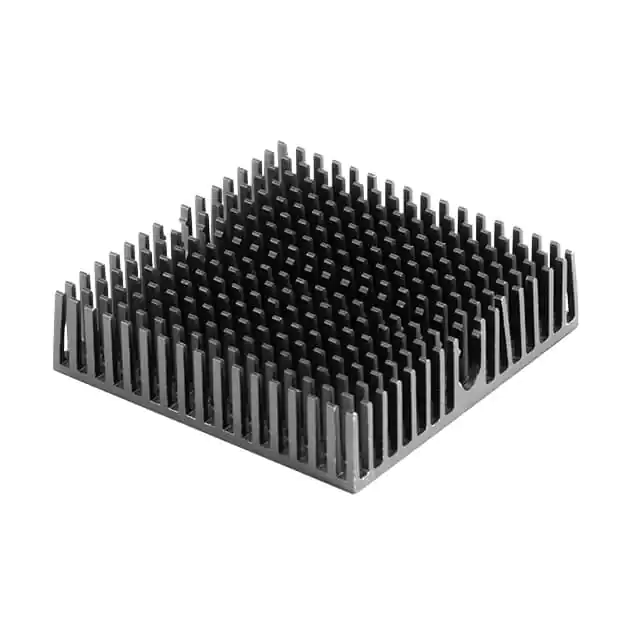

HSB15-404010HEAT SINK, BGA, 40 X 40 X 10 MM |
202 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | 6.3W @ 75°C | 3.90°C/W @ 200 LFM | 11.84°C/W | Aluminum Alloy | Black Anodized |
|

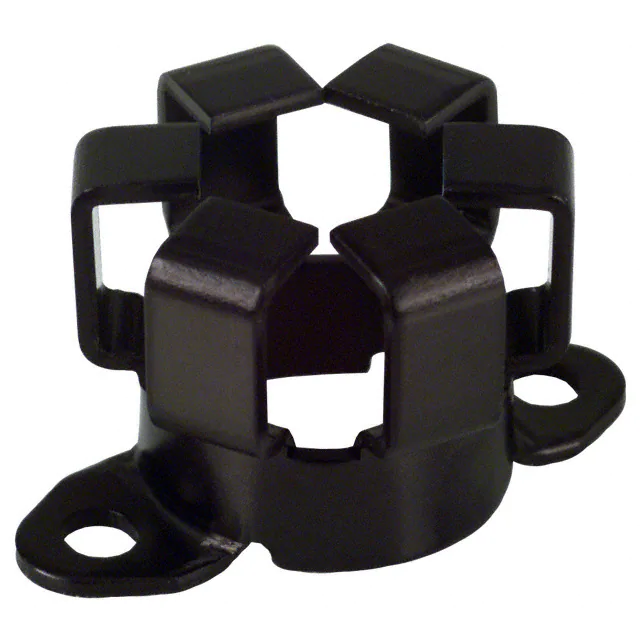

579103B00000GHEATSINK TO-3 BLACK .87" |
1,075 |
|
规格书 |
- | Bag | Active | Top Mount | TO-3 | Bolt On | Rhombus | 1.540" (39.12mm) | - | 1.125" (28.57mm) OD | 0.870" (22.10mm) | 2.5W @ 40°C | 4.00°C/W @ 600 LFM | 12.50°C/W | Aluminum | Black Anodized |
|

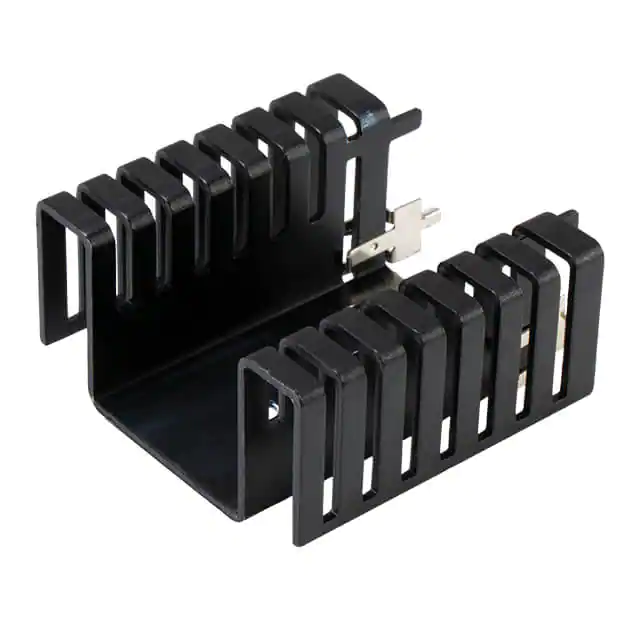

HSS01-B20-CPHEAT SINK, STAMPING, TO-220, 49. |
975 |
|
规格书 |
HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.941" (49.31mm) | 1.900" (48.26mm) | - | 0.950" (24.13mm) | 9.9W @ 75°C | 3.70°C/W @ 200 LFM | 7.59°C/W | Aluminum Alloy | Black Anodized |
|

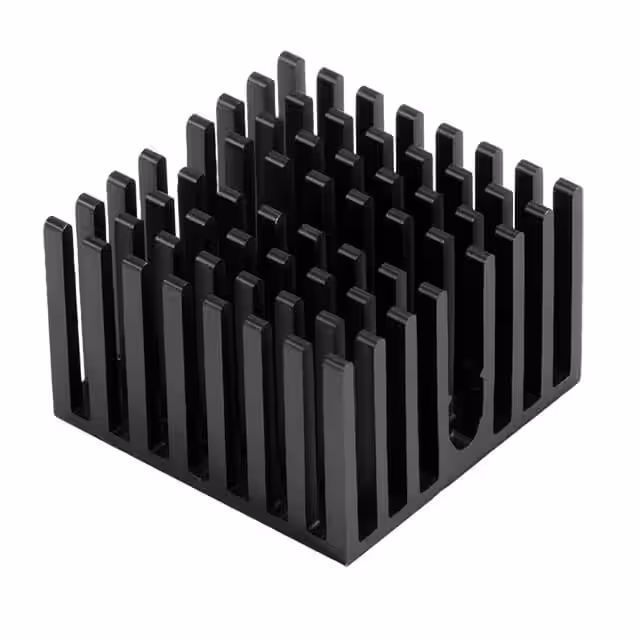

HSB14-353518HEAT SINK, BGA, 35 X 35 X 18 MM |
681 |
|
规格书 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.709" (18.00mm) | 8.4W @ 75°C | 3.60°C/W @ 200 LFM | 8.97°C/W | Aluminum Alloy | Black Anodized |
|
TGH-0220-06ALUMINIUM HEAT SINK 27X22MM |
229 |
|
规格书 |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Pin Fins | 1.063" (27.00mm) | 0.866" (22.00mm) | - | 0.354" (9.00mm) | - | - | - | Aluminum | Black Anodized |
|

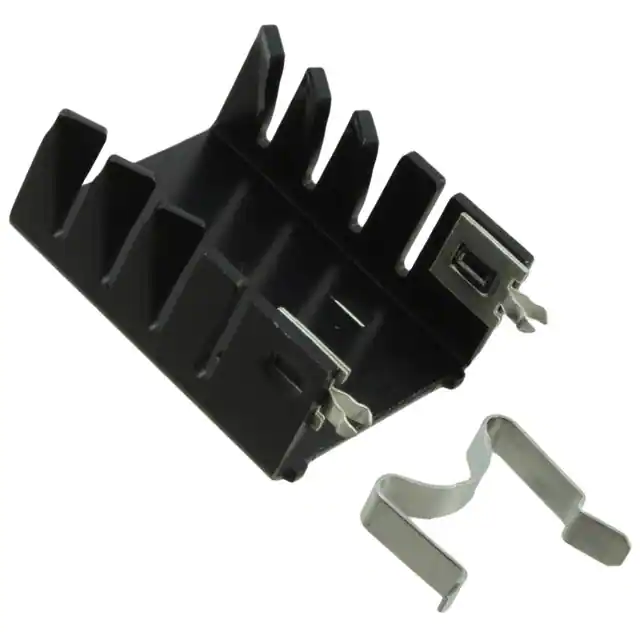

534202B02853GHEATSINK TO-220 W/SHURLOCK-CLIP |
19,247 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Locks | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 13.40°C/W | Aluminum | Black Anodized |
