| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 附件方式 | 形状 | 功率 - 冷却 | 热阻 | 吸液芯类型 | 长度 | 宽度 | 高度 | 直径 | 工作温度 | 特性 | 材质 | 平台 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCH1101VAPOR CHAMBER RECT 21.5X71X94MM |
219 |
|
- |
- | Bulk | Active | Vapor Chamber | Push Pin | Rectangular | - | - | - | 3.701" (94.00mm) | 2.795" (71.00mm) | 0.846" (21.50mm) | - | - | - | Copper | - |
|
|
RP-HH-01-RP5HEATPIPE FOR RASPBERRY PI 5 |
4,665 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VCH1113VAPOR CHAMBER RECT 20.3X70X106MM |
331 |
|
- |
- | Bulk | Active | Vapor Chamber | Push Pin | Rectangular | - | - | - | 4.173" (106.00mm) | 2.756" (70.00mm) | 0.799" (20.30mm) | - | - | - | Copper | - |
|
|
110579HEAT PIPE ROUND 6 OD 150MM |
100 |
|
规格书 |
- | Box | Active | Heat Pipe | - | Round | 60.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - |
|
|
110580HEAT PIPE ROUND 6 OD 200MM |
2,149 |
|
规格书 |
- | Box | Active | Heat Pipe | - | Round | 50.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - |
|
ATS-HP-F5L100S32W-200HEAT PIPE FLAT 2X6.95X100MM |
2,890 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 39.7W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.274" (6.95mm) | 0.079" (2.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
ATS-HP-D4L70S71W-115HEAT PIPE ROUND 4 OD 70MM |
4,404 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 89.4W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.157" (4.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
HP-CWS-R06-310-NHEAT PIPE ROUND 6 OD 310MM |
3,761 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 47.0W @ 310mm | - | Sintered | 12.205" (310.00mm) | - | - | 0.236" (6.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
ATS-HP-D6L350S30W-133HEAT PIPE ROUND 6 OD 350MM |
4,391 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 38.4W @ 350mm | - | Sintered | 13.780" (350.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D5L300S25W-008HEAT PIPE ROUND 5 OD 300MM |
2,723 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 38.0W @ 300mm | - | Sintered | 11.811" (300.00mm) | - | - | 0.197" (5.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|

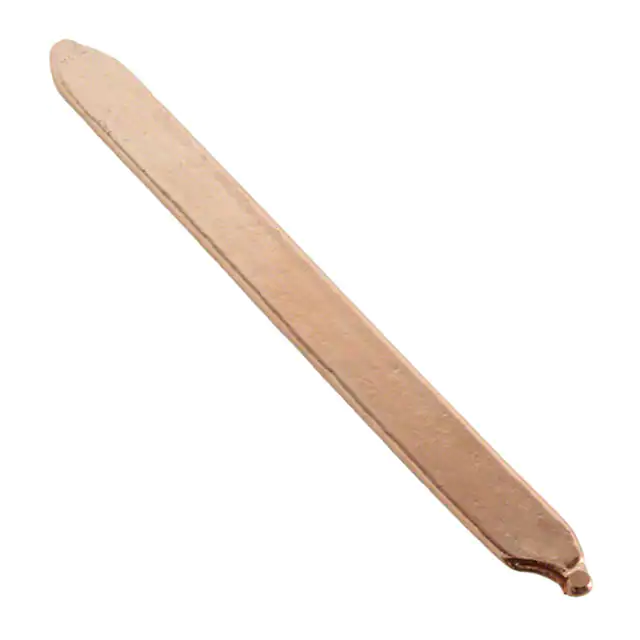

120231HEAT PIPE FLAT 1.5X8.6X100MM |
4,564 |
|
规格书 |
- | Bag | Active | Heat Pipe | Epoxy or Solder | Flat | 25.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.339" (8.60mm) | 0.059" (1.50mm) | - | - | - | Copper | - |
|
|
120229HEAT PIPE FLAT 1.02X7.3X100MM |
3,640 |
|
规格书 |
- | Bag | Active | Heat Pipe | - | Flat | 12.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.287" (7.30mm) | 0.040" (1.02mm) | - | - | - | Copper | - |
|

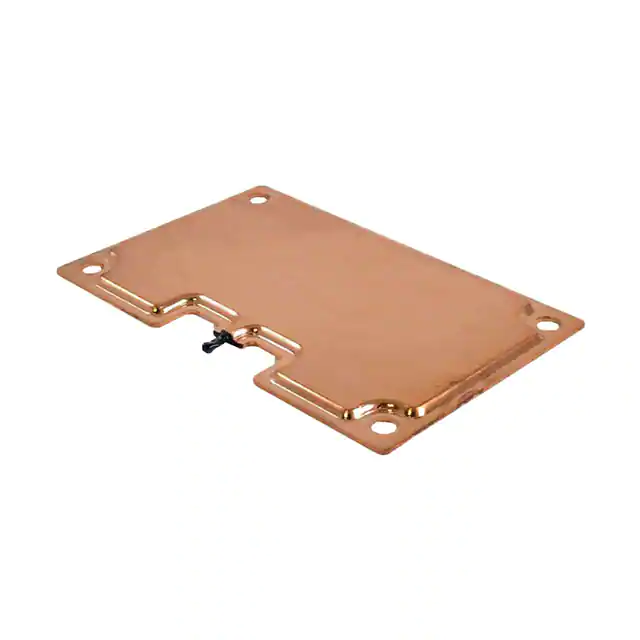

TGVC-106-70-3.0-01VAPOR CHAMBER RECT 3X70X106MM |
2,828 |
|
规格书 |
TGVC | Bulk | Active | Vapor Chamber | Bolt On | Rectangular | 150W | 0.160°C/W | - | 4.173" (106.00mm) | 2.756" (70.00mm) | 0.118" (3.00mm) | - | - | - | - | - |
|
TGVC-106-70-25.5-01VAPOR CHAMBER RECT 25.5X70X106MM |
3,840 |
|
规格书 |
TGVC | Bulk | Active | Vapor Chamber | Bolt On | Rectangular | 150.0W @ 106mm | 0.160°C/W | - | 4.173" (106.00mm) | 2.756" (70.00mm) | 1.004" (25.50mm) | - | - | - | - | - |
|
124650HEAT PIPE ROUND 5 OD 70MM |
2,009 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | - | - | Sintered | 2.756" (70.00mm) | - | - | 0.197" (5.00mm) OD | - | - | Copper | - |
|
124657HEAT PIPE ROUND 6 OD 70MM |
1,388 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 35.0W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - |
|
|
124653HEAT PIPE ROUND 5 OD 200MM |
3,691 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 30.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.197" (5.00mm) OD | - | - | Copper | - |
|
124644HEAT PIPE ROUND 3 OD 200MM |
100 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 5.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - |
|
126092HEAT PIPE FLAT 3X14X100MM |
1,459 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 3.937" (100.00mm) | 0.551" (14.00mm) | 0.118" (3.00mm) | - | - | - | Copper | - |
|
|
125983HEAT PIPE FLAT 2X3.57X100MM |
4,021 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 3.937" (100.00mm) | 0.141" (3.57mm) | 0.079" (2.00mm) | - | - | - | Copper | - |
