购物车热管、蒸汽室
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 附件方式 | 形状 | 功率 - 冷却 | 热阻 | 吸液芯类型 | 长度 | 宽度 | 高度 | 直径 | 工作温度 | 特性 | 材质 | 平台 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HP-CWS-R06-150-NHEAT PIPE ROUND 6 OD 150MM |
169 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 91.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.236" (6.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
ATS-HP-D4L200G30W-001HEAT PIPE ROUND 4 OD 200MM |
225 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 41.0W @ 200mm | - | Grooved | 7.874" (200.00mm) | - | - | 0.157" (4.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D6L200G45W-005HEAT PIPE ROUND 6 OD 200MM |
170 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 64.0W @ 200mm | - | Grooved | 7.874" (200.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D6L400S26W-134HEAT PIPE ROUND 6 OD 400MM |
267 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 33.6W @ 400mm | - | Sintered | 15.748" (400.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D6L200S45W-009HEAT PIPE ROUND 6 OD 200MM |
135 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 20.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
HP-CWS-R06-250-NHEAT PIPE ROUND 6 OD 250MM |
162 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 55.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.236" (6.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
ATS-HP-D6L300G30W-006HEAT PIPE ROUND 6 OD 300MM |
129 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 53.0W @ 300mm | - | Grooved | 11.811" (300.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D10L250S79W-169HEAT PIPE ROUND 10 OD 250MM |
383 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 99.8W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.394" (10.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|

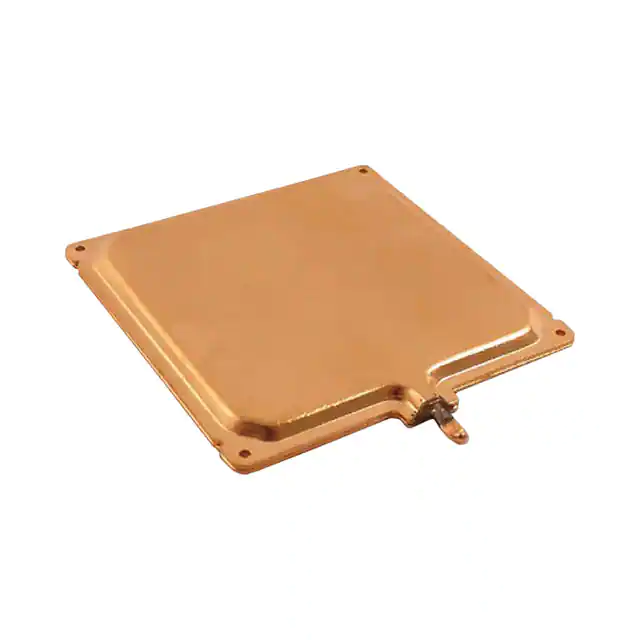

TGVC-56-56-3.0-01VAPOR CHAMBER SQUARE 3X56X56MM |
137 |
|
规格书 |
TGVC | Bulk | Active | Vapor Chamber | Bolt On | Square | 110W | 0.210°C/W | - | 2.205" (56.00mm) | 2.205" (56.00mm) | 0.118" (3.00mm) | - | - | - | - | - |
|
ATS-HP-F4L100S29W-193HEAT PIPE FLAT 3X4.83X100MM |
268 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 36.1W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.190" (4.83mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F5L100S30W-031HEAT PIPE FLAT 2.5X8.2X100MM |
1,136 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 30.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.323" (8.20mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F9L150S70W-013HEAT PIPE FLAT 4.5X10.5X150MM |
485 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 74.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.413" (10.50mm) | 0.177" (4.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F9L250S70W-015HEAT PIPE FLAT 4.5X10.5X250MM |
110 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 80.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | 0.413" (10.50mm) | 0.177" (4.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D8L400S38W-152HEAT PIPE ROUND 8 OD 400MM |
1,315 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 48.7W @ 400mm | - | Sintered | 15.748" (400.00mm) | - | - | 0.315" (8.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
124643HEAT PIPE ROUND 3 OD 150MM |
268 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 10.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - |
|
|
ATS-HP-D5L100S80W-121HEAT PIPE ROUND 5 OD 100MM |
1,080 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 101.2W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.197" (5.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D6L70S153W-127HEAT PIPE ROUND 6 OD 70MM |
119 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 192.1W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.236" (6.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
HP-CWS-R03-300-NHEAT PIPE ROUND 3 OD 300MM |
4,943 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 8.0W @ 300mm | - | Sintered | 11.811" (300.00mm) | - | - | 0.118" (3.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
HP-CWS-R08-155-NHEAT PIPE ROUND 8 OD 155MM |
129 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 135.0W @ 155mm | - | Sintered | 6.102" (155.00mm) | - | - | 0.315" (8.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
126010HEAT PIPE FLAT 2.5X6.43X200MM |
101 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 7.874" (200.00mm) | 0.253" (6.43mm) | 0.098" (2.50mm) | - | - | - | Copper | - |
