| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 附件方式 | 形状 | 功率 - 冷却 | 热阻 | 吸液芯类型 | 长度 | 宽度 | 高度 | 直径 | 工作温度 | 特性 | 材质 | 平台 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
124674HEAT PIPE ROUND 12 OD 250MM |
4,154 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 115.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
124675HEAT PIPE ROUND 12 OD 300MM |
1,598 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 100.0W @ 300mm | - | Sintered | 11.811" (300.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
124666HEAT PIPE ROUND 10 OD 500MM |
2,531 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 40.0W @ 500mm | - | Sintered | 19.685" (500.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - |
|
126254HEAT PIPE FLAT 4X13.42X450MM |
2,859 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 17.717" (450.00mm) | 0.528" (13.42mm) | 0.157" (4.00mm) | - | - | - | Copper | - |
|
|
124667HEAT PIPE ROUND 10 OD 550MM |
1,704 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 35.0W @ 550mm | - | Sintered | 21.654" (550.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - |
|
|
121691HEAT PIPE ROUND 10 OD 250MM |
2,943 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 65.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - |
|
|
124677HEAT PIPE ROUND 12 OD 400MM |
4,603 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 65.0W @ 400mm | - | Sintered | 15.748" (400.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
|
124678HEAT PIPE ROUND 12 OD 450MM |
1,188 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 55.0W @ 450mm | - | Sintered | 17.717" (450.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
|
124680HEAT PIPE ROUND 12 OD 550MM |
3,133 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 42.0W @ 550mm | - | Sintered | 21.654" (550.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
|
CS400-2304-R-0AHEAT PIPE ROUND 12 OD 304.8MM |
1,582 |
|
- |
CS400 | Box | Active | Heat Pipe | - | Round | - | - | Sintered | 12.000" (304.80mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|

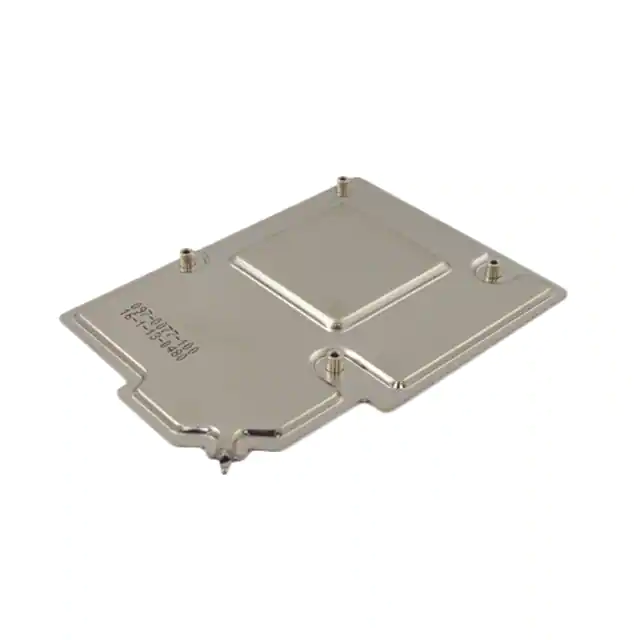

VC-1131-8175-517VAPOR CHAM RECT 5.17X81.75X113MM |
3,497 |
|
规格书 |
VC | Box | Active | Vapor Chamber | Bolt On | Rectangular | 180W | 0.145°C/W | - | 5.240" (113.00mm) | 3.219" (81.75mm) | 0.204" (5.17mm) | - | 40°C ~ 140°C | - | - | VGA |
|
|
RP-HH-01-SETAHEAT PIPE ROUND 3 OD 85MM |
3,098 |
|
规格书 |
- | Active | Heat Pipe | Push Pin | Round | - | - | - | 3.346" (85.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Aluminum | Raspberry Pi 4B | |
|
|
RP-HH-01-CM4HEAT PIPE ROUND 3 OD 85MM |
1,093 |
|
规格书 |
- | Active | Heat Pipe | Push Pin | Round | - | - | - | 3.346" (85.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Aluminum | Raspberry Pi 4B | |
|

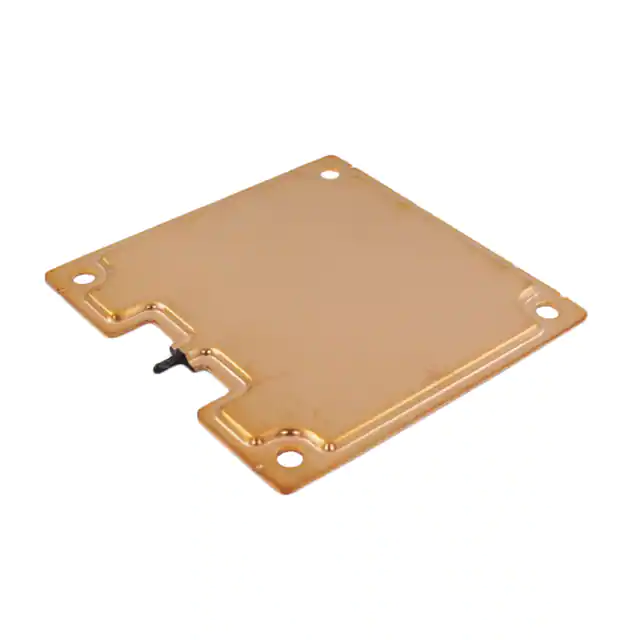

VC-90-90-3VAPOR CHAMBER SQUARE 3X90X90MM |
3,171 |
|
规格书 |
VC | Box | Active | Vapor Chamber | Bolt On | Square | 150W | 0.143°C/W | - | 3.543" (90.00mm) | 3.543" (90.00mm) | 0.118" (3.00mm) | - | 40°C ~ 140°C | - | - | Intel 2011 Square |
|
|
126093HEAT PIPE FLAT 3X14X150MM |
3,578 |
|
规格书 |
- | Bulk | Obsolete | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 5.906" (150.00mm) | 0.551" (14.00mm) | 0.118" (3.00mm) | - | - | - | Copper | - |
|
|
126101HEAT PIPE FLAT 3X14X550MM |
3,378 |
|
规格书 |
- | Bulk | Obsolete | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 21.654" (550.00mm) | 0.551" (14.00mm) | 0.118" (3.00mm) | - | - | - | Copper | - |
|
|
126110HEAT PIPE FLAT 3X17.14X400MM |
1,156 |
|
规格书 |
- | Bulk | Obsolete | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 15.748" (400.00mm) | 0.675" (17.14mm) | 0.118" (3.00mm) | - | - | - | Copper | - |
|
|
HP-CWS-R10-266-KHEAT PIPE ROUND 10 OD 266MM |
2,646 |
|
规格书 |
- | Bulk | Obsolete | Heat Pipe | Epoxy or Solder | Round | 103.0W @ 266mm | - | Sintered | 10.472" (266.00mm) | - | - | 0.394" (10.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
HP-CWS-F08X47-200-NHEAT PIPE FLAT 4.7X10X200MM |
4,763 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 75.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.394" (10.00mm) | 0.185" (4.70mm) | - | -55°C ~ 180°C | - | Copper | - |
|
|
HP-CWS-F08X47-075-NHEAT PIPE FLAT 4.7X10X75MM |
2,876 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 52.0W @ 75mm | - | Sintered | 2.953" (75.00mm) | 0.394" (10.00mm) | 0.185" (4.70mm) | - | -55°C ~ 180°C | - | Copper | - |
