| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 附件方式 | 形状 | 功率 - 冷却 | 热阻 | 吸液芯类型 | 长度 | 宽度 | 高度 | 直径 | 工作温度 | 特性 | 材质 | 平台 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
126049HEAT PIPE FLAT 2.7X7.88X300MM |
4,371 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 11.811" (300.00mm) | 0.310" (7.88mm) | 0.106" (2.70mm) | - | - | - | Copper | - |
|
124673HEAT PIPE ROUND 12 OD 200MM |
3,450 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 130.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - |
|
|
126020HEAT PIPE FLAT 2.5X8X350MM |
2,222 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 13.780" (350.00mm) | 0.315" (8.00mm) | 0.098" (2.50mm) | - | - | - | Copper | - |
|
ATS-HP-F8L150S45W-455HEAT PIPE FLAT 6.5X9.45X150MM |
4,982 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 56.7W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.372" (9.45mm) | 0.256" (6.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F8L150S40W-365HEAT PIPE FLAT 3X11.25X150MM |
4,405 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 49.4W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.443" (11.25mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
ATS-HP-D7L400S32W-142HEAT PIPE ROUND 7 OD 400MM |
4,053 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 40.6W @ 400mm | - | Sintered | 15.748" (400.00mm) | - | - | 0.276" (7.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
121689HEAT PIPE ROUND 10 OD 100MM |
2,674 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 80.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - |
|
|
ATS-HP-F4L200S12W-181HEAT PIPE FLAT 2X5.39X200MM |
4,647 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 15.5W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.212" (5.39mm) | 0.079" (2.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F6L150S28W-253HEAT PIPE FLAT 2.5X8.28X150MM |
3,157 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 35.2W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.326" (8.28mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D7L500S25W-144HEAT PIPE ROUND 7 OD 500MM |
2,729 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 32.4W @ 500mm | - | Sintered | 19.685" (500.00mm) | - | - | 0.276" (7.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
126249HEAT PIPE FLAT 4X13.42X200MM |
2,764 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 7.874" (200.00mm) | 0.528" (13.42mm) | 0.157" (4.00mm) | - | - | - | Copper | - |
|
|
ATS-HP-F5L250S13W-203HEAT PIPE FLAT 2X6.95X250MM |
3,754 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 15.9W @ 250mm | - | Sintered | 9.843" (250.00mm) | 0.274" (6.95mm) | 0.079" (2.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D8L350S44W-151HEAT PIPE ROUND 8 OD 350MM |
2,638 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 55.7W @ 350mm | - | Sintered | 13.780" (350.00mm) | - | - | 0.315" (8.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|

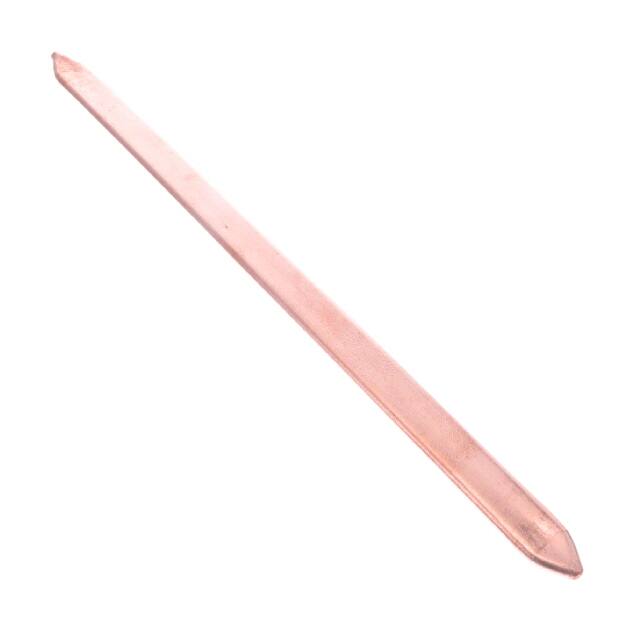

126250HEAT PIPE FLAT 4X13.42X250MM |
3,351 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 9.843" (250.00mm) | 0.528" (13.42mm) | 0.157" (4.00mm) | - | - | - | Copper | - |
|
|
ATS-HP-D7L70S185W-135HEAT PIPE ROUND 7 OD 70MM |
2,845 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 231.7W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.276" (7.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D7L100S129W-136HEAT PIPE ROUND 7 OD 100MM |
4,023 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 162.2W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.276" (7.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|

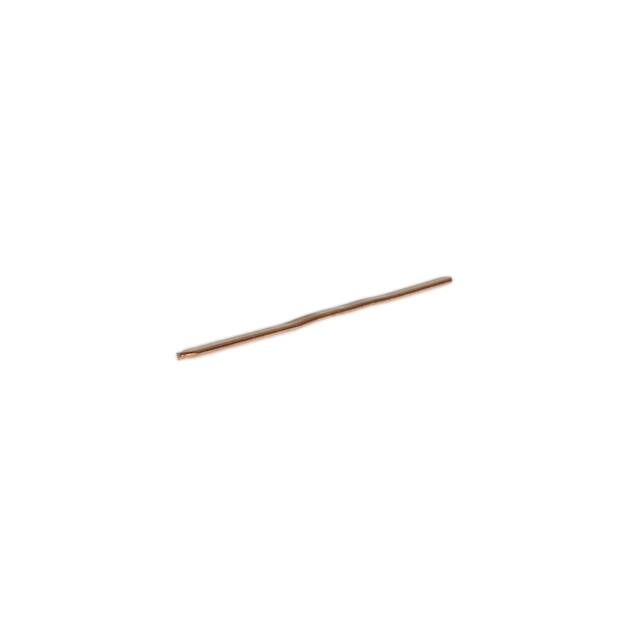

121724HEAT PIPE FLAT 3X8.13X300MM |
3,460 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 25.0W @ 300mm | - | Sintered | 11.811" (300.00mm) | 0.320" (8.13mm) | 0.118" (3.00mm) | - | - | - | Copper | - |
|
|
ATS-HP-F5L70S50W-207HEAT PIPE FLAT 2.5X6.69X70MM |
3,177 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 2.756" (70.00mm) | 0.263" (6.69mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F6L70S64W-283HEAT PIPE FLAT 3.2X7.9X70MM |
3,803 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 79.6W @ 70mm | - | Sintered | 2.756" (70.00mm) | 0.311" (7.90mm) | 0.126" (3.20mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F6L70S65W-291HEAT PIPE FLAT 3.5X7.75X70MM |
4,976 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 81.1W @ 70mm | - | Sintered | 2.756" (70.00mm) | 0.305" (7.75mm) | 0.138" (3.50mm) | - | 30°C ~ 120°C | - | Copper | - |
