| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 附件方式 | 形状 | 功率 - 冷却 | 热阻 | 吸液芯类型 | 长度 | 宽度 | 高度 | 直径 | 工作温度 | 特性 | 材质 | 平台 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-HP-F5L150S40W-025HEAT PIPE FLAT 2.5X8.2X150MM |
3,414 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 98.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.323" (8.20mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
124642HEAT PIPE ROUND 3 OD 100MM |
2,983 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 8.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - |
|
ATS-HP-D4L200S25W-118HEAT PIPE ROUND 4 OD 200MM |
3,674 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 31.3W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.157" (4.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F6L250S50W-023HEAT PIPE FLAT 3X8X250MM |
3,862 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 75.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | 0.315" (8.00mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F6L70S63W-275HEAT PIPE FLAT 3X8.05X70MM |
3,625 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 78.9W @ 70mm | - | Sintered | 2.756" (70.00mm) | 0.317" (8.05mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|

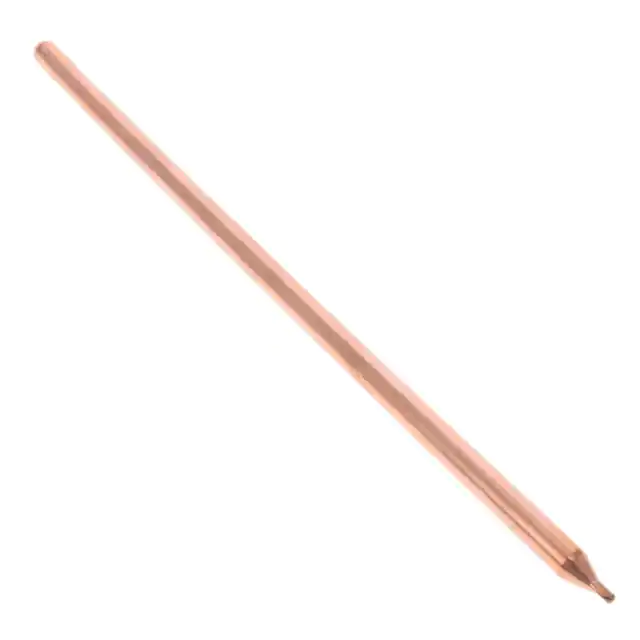

HP-CWS-R08-250-NHEAT PIPE ROUND 8 OD 250MM |
1,232 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 80.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.315" (8.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
ATS-HP-F6L200S30W-030HEAT PIPE FLAT 3X8X200MM |
1,656 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 29.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.315" (8.00mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F5L200S35W-026HEAT PIPE FLAT 2.5X8.2X200MM |
4,422 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 17.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.323" (8.20mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
|
124651HEAT PIPE ROUND 5 OD 100MM |
1,007 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 101W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.197" (5.00mm) OD | - | - | Copper | - |
|
|
124641HEAT PIPE ROUND 3 OD 70MM |
2,002 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 5.0W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - |
|
126000HEAT PIPE FLAT 2.5X3.29X150MM |
1,664 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 5.906" (150.00mm) | 0.130" (3.29mm) | 0.098" (2.50mm) | - | - | - | Copper | - |
|
|
125985HEAT PIPE FLAT 2X3.57X200MM |
2,090 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 7.874" (200.00mm) | 0.141" (3.57mm) | 0.079" (2.00mm) | - | - | - | Copper | - |
|
124662HEAT PIPE ROUND 8 OD 150MM |
3,317 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 70.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.315" (8.00mm) OD | - | - | Copper | - |
|
|
125998HEAT PIPE FLAT 2.5X3.29X70MM |
3,129 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 2.756" (70.00mm) | 0.130" (3.29mm) | 0.098" (2.50mm) | - | - | - | Copper | - |
|
HP-CWS-R08-100-NHEAT PIPE ROUND 8 OD 100MM |
4,051 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 199.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.315" (8.00mm) OD | -55°C ~ 180°C | - | Copper | - |
|
|
ATS-HP-F5L100S37W-216HEAT PIPE FLAT 3X6.44X100MM |
2,137 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 46.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.254" (6.44mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-F4L200S14W-195HEAT PIPE FLAT 3X4.83X200MM |
1,588 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 18.1W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.190" (4.83mm) | 0.118" (3.00mm) | - | 30°C ~ 120°C | - | Copper | - |
|
|
ATS-HP-D7L250S51W-139HEAT PIPE ROUND 7 OD 250MM |
4,183 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 64.9W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.276" (7.00mm) OD | 30°C ~ 120°C | - | Copper | - |
|
|
124669HEAT PIPE ROUND 10 OD 150MM |
1,646 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Round | 120.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - |
|
|
ATS-HP-F5L150S23W-209HEAT PIPE FLAT 2.5X6.69X150MM |
2,680 |
|
规格书 |
- | Bulk | Active | Heat Pipe | Epoxy or Solder | Flat | 29.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | 0.263" (6.69mm) | 0.098" (2.50mm) | - | 30°C ~ 120°C | - | Copper | - |
