购物车钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Y.JPG)
|
T520Y337M010ATE035CAP TANT POLY 330UF 10V 2917 |
743 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
TCJD107M025R0070CAP TANT POLY 100UF 25V 2917 |
987 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T598X476M035ATE075CAP TANT POLY 47UF 35V 2917 |
274 |
|
- |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | Molded | 75mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | AEC-Q200 | Automotive |
|
|
T598X106M075ATE090CAP TANTALUM POLYMER AUTOMOTIVE |
297 |
|
- |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 75 V | Molded | 90mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | AEC-Q200 | Automotive |
|
TCN4227M020R0100CAP TANT POLY 220UF 20V 2924 |
2,159 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 20 V | Molded | 100mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
ETCF680M6LCAP TANT POLY 680UF 2.5V 2917 |
9,045 |
|
- |
POSCAP™ TC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
T521D227M016ATE025CAP TANT POLY 220UF 16V 2917 |
381 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|

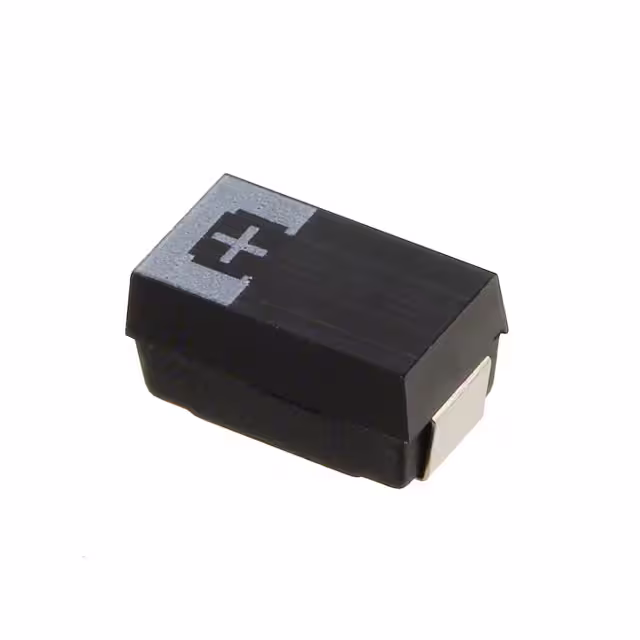

ETPF1000M6HCAP TANT POLY 1000UF 2.5V 2917 |
5,054 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
|
|
TCN4107M025R0100CAP TANT POLY 100UF 25V 2924 |
1,029 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
|
T521D227M016ATE035CAP TANT POLY 220UF 16V 2917 |
573 |
|
- |
- | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T530D157M010ATE010CAP TANT POLY 150UF 10V 2917 |
568 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T530D477M004ATE010CAP TANT POLY 470UF 4V 2917 |
6,618 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T52M1227M025C0055CAP TANT POLY 220UF 25V 2924 |
2,036 |
|
- |
vPolyTan™ T52 | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | Molded | 55mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | M1 | - | General Purpose |
|
|
TCJD335M125R0250ECAP TANT POLY 3.3UF 125V 2917 |
607 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 125 V | Molded | 250mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T530D687M2R5AHE006CAP TANT POLY 680UF 2.5V 2917 |
503 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T521D226M035ATE060CAP TANT POLY 22UF 35V 2917 |
1,248 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T530D337M004ATE005CAP TANT POLY 330UF 4V 2917 |
849 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 5mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T528Z477M2R5ATE006CAP TANT POLY 470UF 2.5V 2917 |
632 |
|
- |
KO-CAP® T528 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.067" (1.70mm) | - | Z | - | General Purpose |
|
|
T530Y227M010ATE006CAP TANT POLY 220UF 10V 2917 |
633 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
TCME337M006R0010ECAP TANT POLY 330UF 6.3V 2917 |
598 |
|
- |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
