购物车钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TCQD107M010R0040ECAP TANT POLY 100UF 10V 2917 |
990 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
TCJY106M035R0070CAP TANT POLY 10UF 35V 2917 |
1,750 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|

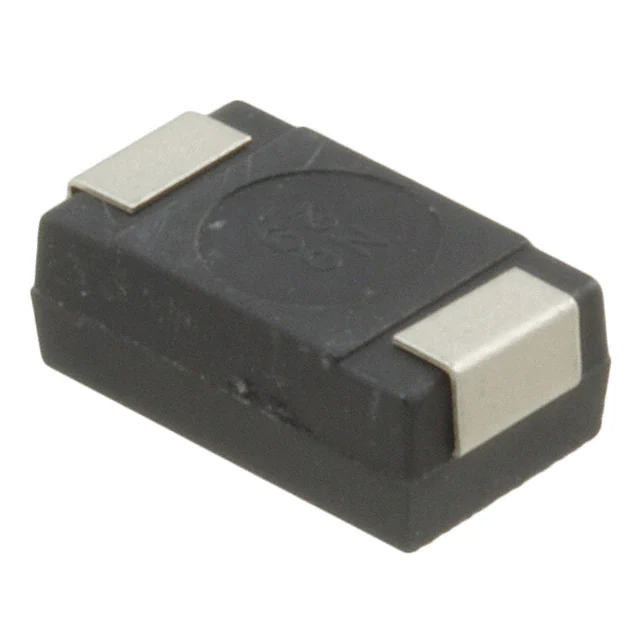

6TPB330MLCAP TANT POLY 330UF 6.3V 2917 |
12,927 |
|
- |
POSCAP™ TPB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
TCJD227M016R0035ECAP TANT POLY 220UF 16V 2917 |
1,511 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
D.JPG)
|
T520D157M010ATE015CAP TANT POLY 150UF 10V 2917 |
724 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJC226M025R0100CAP TANT POLY 22UF 25V 2312 |
1,663 |
|
- |
TCJ | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | General Purpose |
|
|
T520D108M2R5ATE030CAP TANT POLY 1000UF 2.5V 2917 |
5,852 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 30mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJD106M050R0120ECAP TANT POLY 10UF 50V 2917 |
5,706 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | Molded | 120mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
20TQC33MYFDCAP TANT POLY 33UF 20V 2917 |
4,881 |
|
- |
POSCAP™ TQC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 20 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2 | - | General Purpose |
|
T521V156M035ATE100CAP TANT POLY 15UF 35V 2917 |
2,264 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 35 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
TCJP105M025R0500CAP TANT POLY 1UF 25V 0805 |
3,795 |
|
- |
TCJ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 µF | ±20% | 25 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.081" L x 0.053" W (2.05mm x 1.35mm) | 0.059" (1.50mm) | - | P | - | General Purpose |
V.JPG)
|
T520V336M016ATE060CAP TANT POLY 33UF 16V 2917 |
9,641 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
T521D106M050ATE120CAP TANT POLY 10UF 50V 2917 |
1,299 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | Molded | 120mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCQD106M035R0070ECAP TANT POLY 10UF 35V 2917 |
5,158 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCQD226M020R0070ECAP TANT POLY 22UF 20V 2917 |
2,024 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 20 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
20TQC47MYFCAP TANT POLY 47UF 20V 2917 |
17,559 |
|
- |
POSCAP™ TQC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 20 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2 | - | General Purpose |
|
|
T520D686M016ATE050CAP TANT POLY 68UF 16V 2917 |
5,967 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJD226M035R0070CAP TANT POLY 22UF 35V 2917 |
4,537 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
20TQC22MYFBCAP TANT POLY 22UF 20V 1411 |
4,829 |
|
- |
POSCAP™ TQC | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 20 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
|
|
TCJR106M006R0500ECAP TANT POLY 10UF 6.3V 0805 |
4,414 |
|
- |
TCJ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.047" (1.20mm) | - | R | - | General Purpose |
