开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式
	ZA9670-BED XFMR FLYBACK DC/DC CONV 9UH SMD Coilcraft	722	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-

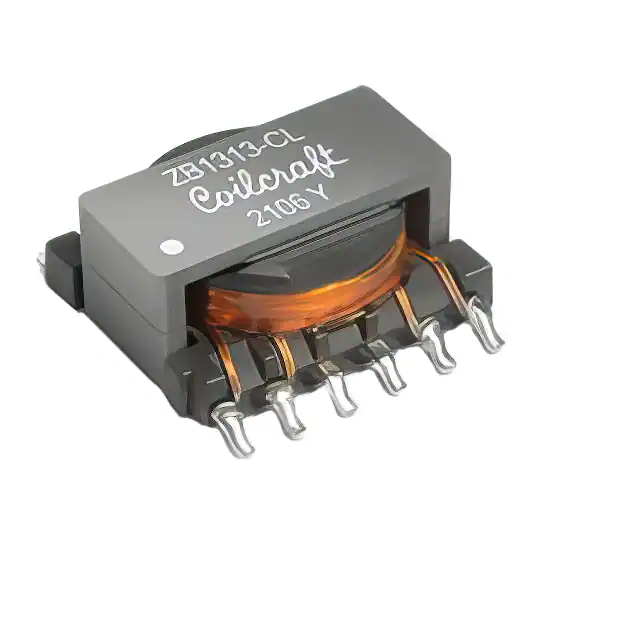

	ZB1313-CLD XFMR FLYBCK DC/DC CONV 10.5UH SM Coilcraft	1,167	-	立即询价	规格书	ZB1313-CL	Strip	Active	For DC/DC Converters	Flyback Converters	MAX17690	Maxim Integrated	18 ~ 38V	-	1500Vrms	10.5µH @ 150kHz	163kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.291" (7.40mm)	0.661" L x 0.642" W (16.80mm x 16.30mm)	Wirewound
	ZB1052-AED XFMR FLYBACK DC/DC CONV 14UH SMD Coilcraft	672	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25183, LM25183-Q1	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZB1050-AED XFMR FLYBCK DC/DC CONV 12.5UH SM Coilcraft	672	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25183, LM25183-Q1	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZB1051-AED XFMR FLYBACK DC/DC CONV 14UH SMD Coilcraft	672	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25183, LM25183-Q1	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZB1175-AED XFMR ISOL BUCK DC/DC CON 18UH SM Coilcraft	620	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Isolated Buck Converters	-	STMicroelectronics	-	-	3300Vrms	18µH @ 500kHz	500kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.450" (11.43mm)	0.600" L x 0.531" W (15.24mm x 13.50mm)	-

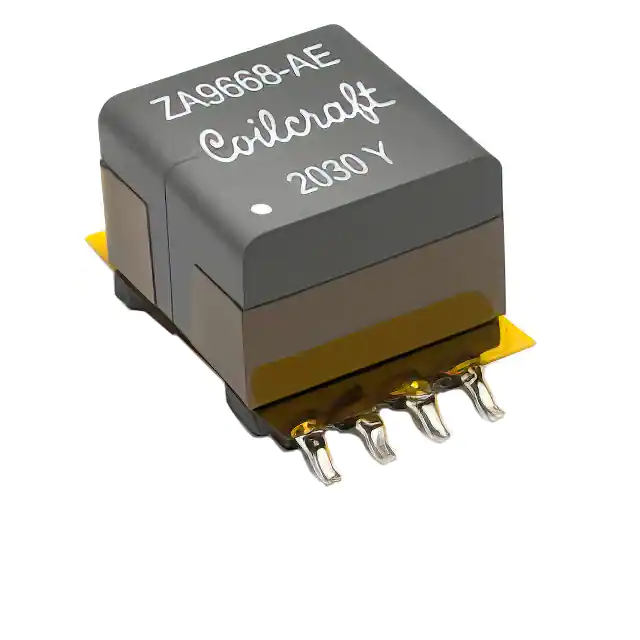

	ZA9668-AED XFMR ISOL BUCK DC/DC CON 18UH SM Coilcraft	587	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Isolated Buck Converters	A6986I, L6986I	STMicroelectronics	-	-	3300Vrms	18µH @ 500kHz	500kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.450" (11.43mm)	0.600" L x 0.531" W (15.24mm x 13.50mm)	-
	ZB1021-ALD XFMR 22UH SMD Coilcraft	498	-	立即询价	规格书	-	Strip	Active	-	-	-	-	17 ~ 36V	-	1500Vrms	22µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	0.500" L x 0.413" W (12.70mm x 10.50mm)	0.433" (11.00mm)	0.600" L x 0.500" W (15.24mm x 12.70mm)	-
	ZB1053-AED XFMR FLYBCK DC/DC CONV 12.5UH SM Coilcraft	4,159	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25183, LM25183-Q1	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZB1054-AED XFMR FLYBCK DC/DC CONV 12.5UH SM Coilcraft	4,244	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25183, LM25183-Q1	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-

共 20 记录«上一页 12下一页»
