开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式
	YA9035-ALD XFMR FLYBACK DC/DC CONV 30UH SMD Coilcraft	754	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25180, LM5180	Texas Instruments	4 ~ 65V	-	1500Vrms	30µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.417" (10.60mm)	0.402" L x 0.366" W (10.20mm x 9.30mm)	-
	YA9037-ALD XFMR FLYBACK DC/DC CONV 32UH SMD Coilcraft	715	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25180, LM5180	Texas Instruments	4 ~ 65V	-	1500Vrms	32µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.417" (10.60mm)	0.402" L x 0.366" W (10.20mm x 9.30mm)	-
	YA9036-ALD XFMR FLYBACK DC/DC CONV 30UH SMD Coilcraft	655	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25180, LM5180	Texas Instruments	4 ~ 65V	-	1500Vrms	30µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.417" (10.60mm)	0.402" L x 0.366" W (10.20mm x 9.30mm)	-

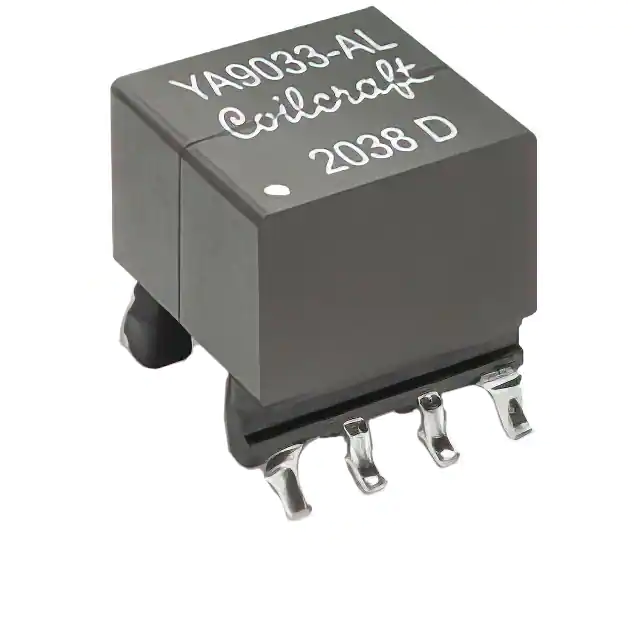

	YA9033-ALD XFMR FLYBACK DC/DC CONV 32UH SMD Coilcraft	652	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25180, LM5180	Texas Instruments	4 ~ 65V	-	1500Vrms	32µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.417" (10.60mm)	0.402" L x 0.366" W (10.20mm x 9.30mm)	-
	YA9034-ALD XFMR FLYBACK DC/DC CONV 36UH SMD Coilcraft	586	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25180, LM5180	Texas Instruments	4 ~ 65V	-	1500Vrms	36µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.417" (10.60mm)	0.402" L x 0.366" W (10.20mm x 9.30mm)	-

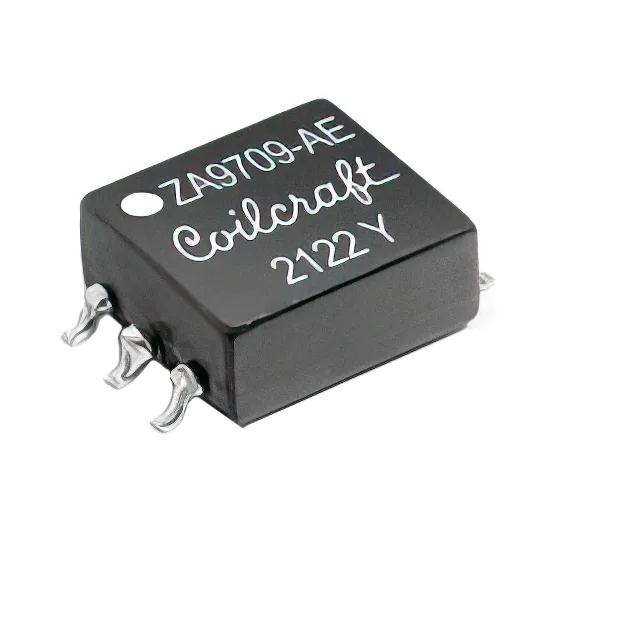

	ZA9709-AED XFMR FWD P-P DC/DC CONV 145UH SM Coilcraft	2,264	-	立即询价	规格书	ZA9709	Strip	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	3.3V	-	2500Vrms	145µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.171" (4.34mm)	0.512" L x 0.347" W (13.00mm x 8.82mm)	-
	ZA9671-BED XFMR FLYBACK DC/DC CONV 9UH SMD Coilcraft	958	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZA9674-BED XFMR FLYBACK DC/DC CONV 9UH SMD Coilcraft	874	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZA9672-BED XFMR FLYBACK DC/DC CONV 7UH SMD Coilcraft	826	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	7µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-
	ZA9673-BED XFMR FLYBACK DC/DC CONV 7UH SMD Coilcraft	742	-	立即询价	规格书	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	7µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-

共 20 记录«上一页12 下一页»
