| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

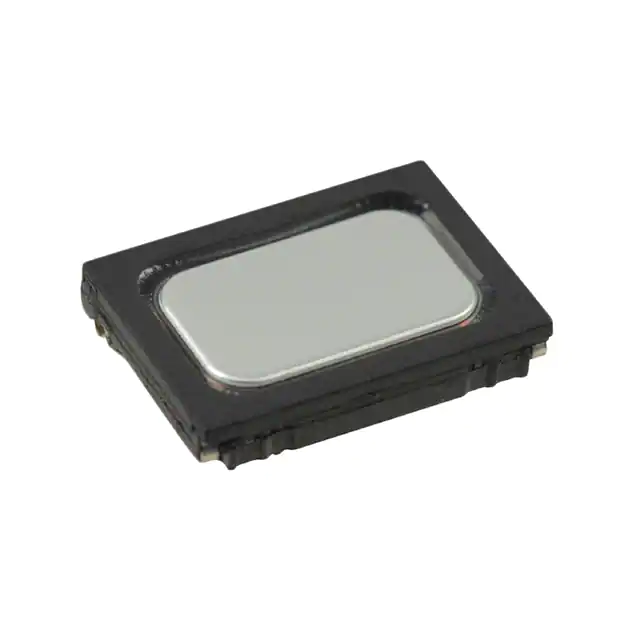

CMS-15118E-SPSPEAKER 8OHM 800MW TOP PT 90.5DB |
2,187 |
|
规格书 |
CMS | Tray | Active | Magnetic | Low Profile | 440 Hz ~ 10 kHz | 550Hz | 8 Ohms | 90.50 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

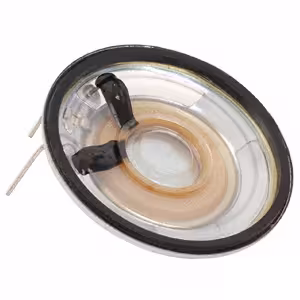

CLS0401MPSPEAKER 8OHM 200MW TOP PORT 80DB |
2,056 |
|
- |
CLS | Bulk | Obsolete | Magnetic | Low Profile | 600 Hz ~ 8 kHz | 600Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.575" Dia (40.00mm) |
|
SCM-2415L4.5-8N1RSPEAKER 8OHM 1W 88DB |
3,779 |
|
规格书 |
- | Tray | Active | - | - | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | - | Oval | Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|

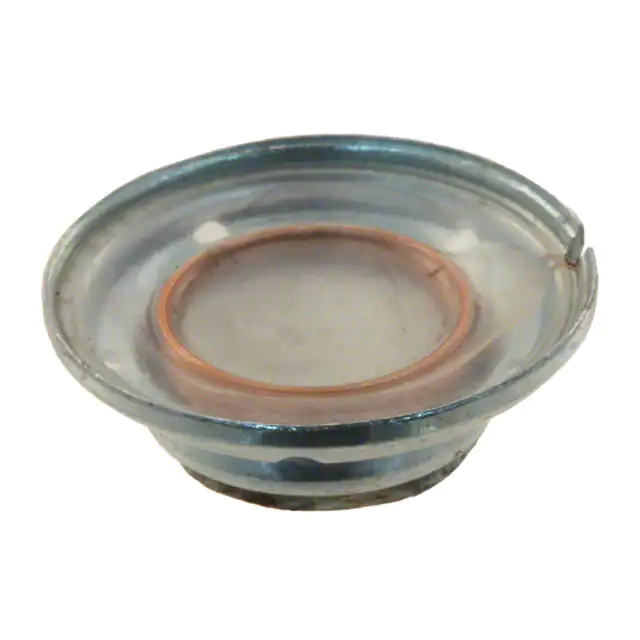

PSR-13N08A-JQSPEAKER 8OHM 250MW TOP PORT 75DB |
3,421 |
|
规格书 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1.8 kHz ~ 7 kHz | 1800Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
SP570445-4SPEAKR 45OHM 300MW TOP PORT 94DB |
2,717 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5 kHz | 450Hz | 45 Ohms | 94.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
RSP-1300.000-1255-NS112 x 5 x 3mm Speaker |
2,417 |
|
规格书 |
- | Tray | Discontinued at Digi-Key | Magnetic | General Purpose | 1.3 kHz ~ 5 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Rectangular | Metal | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
|
SP-1508SSPEAKER; 8 OHM; 86DB; 0.6W/01.0W |
2,936 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 6.6 Ohms | 86.00 | 600mW/100mm | Sound Pressure Level (SPL) | 600 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP50 | - | Solder Pads | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|
|
SM450408-2SPEAKER 8OHM 2W TOP PORT 90DB |
2,427 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 10 kHz | 450Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
GA0506SPEAKER 8OHM 250MW TOP PORT 88DB |
2,329 |
|
规格书 |
GA | Bag | Active | Magnetic | General Purpose | 430 Hz ~ 4 kHz | 430Hz | 8 Ohms | 88.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|
GA0571SPEAKER 8OHM 250MW TOP PORT 88DB |
3,366 |
|
规格书 |
GA | Bag | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 400Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
GA0381MSPEAKER 8OHM 200MW TOP PORT 79DB |
4,842 |
|
规格书 |
GA | Bag | Active | Magnetic | General Purpose | 800 Hz ~ 9 kHz | 800Hz | 8 Ohms | 79.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.496" Dia (38.00mm) |
|
CS40-01P50-04-1XSPEAKER 8OHM 1W TOP PORT 98DB |
1,114 |
|
规格书 |
- | Obsolete | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" L x 0.512" W (40.00mm x 13.00mm) | |
|

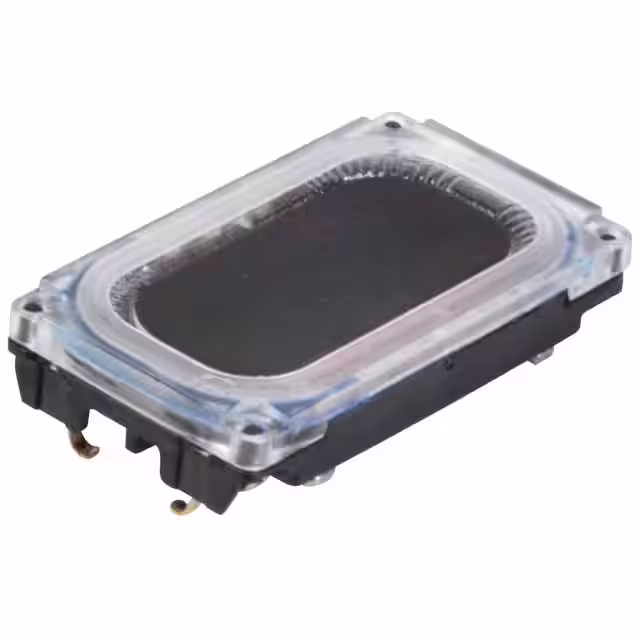

CDS-16098ASPEAKER 8OHM 700MW TOP PORT 86DB |
2,046 |
|
规格书 |
CDS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
PSR-23N08S-JQSPEAKER 8OHM 250MW TOP PORT 86DB |
1,885 |
|
规格书 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1 kHz ~ 5 kHz | 1000Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|
CLS0402MA-1SPEAKER 8OHM 500MW TOP PORT 90DB |
2,290 |
|
规格书 |
CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SM150508-2SPEAKER 8OHM 700MW TOP PORT 89DB |
4,793 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM150508-1SPEAKER 8OHM 700MW TOP PORT 89DB |
4,097 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
GF0571MSPEAKER 8OHM 250MW TOP PORT 86DB |
1,108 |
|
规格书 |
GF | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 14 kHz | 480Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
CLS0381M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
4,247 |
|
规格书 |
CLS | Tray | Active | Magnetic | Low Profile | 800 Hz ~ 3.4 kHz | 800Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.496" Dia (38.00mm) |
|

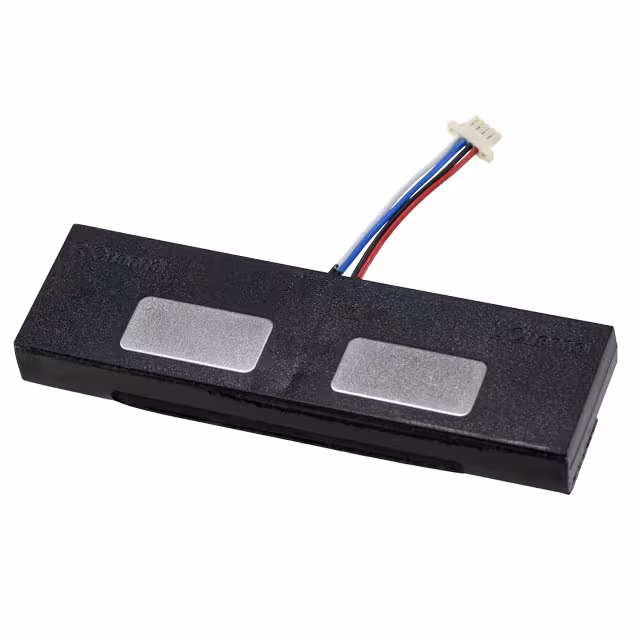

CES-57175-16L020SPEAKER 6OHM 1W TOP PORT 89DB |
4,913 |
|
规格书 |
CES | Tray | Obsolete | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 6 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 2.264" L x 0.669" W (57.50mm x 17.00mm) |
