购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

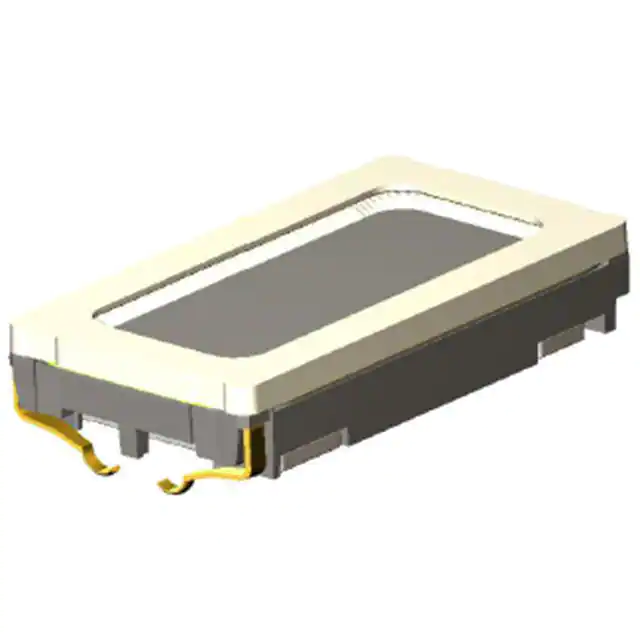

2403 260 00165SPEAKER 8OHM 700MW TOP PORT 94DB |
4,626 |
|
规格书 |
Wildcat S9 | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 510Hz | 8 Ohms | 94.00 | 1W/1M | Sound Pressure Level (SPL) | 700 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
OWS-1330TA-8SPEAKER 8OHM 500MW TOP PORT 91DB |
4,613 |
|
规格书 |
- | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 1.05kHz | 8 Ohms | 91.00 | 500mW/10cm | Sensitivity | 500 mW | 800 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.512" Dia (13.00mm) | |
|

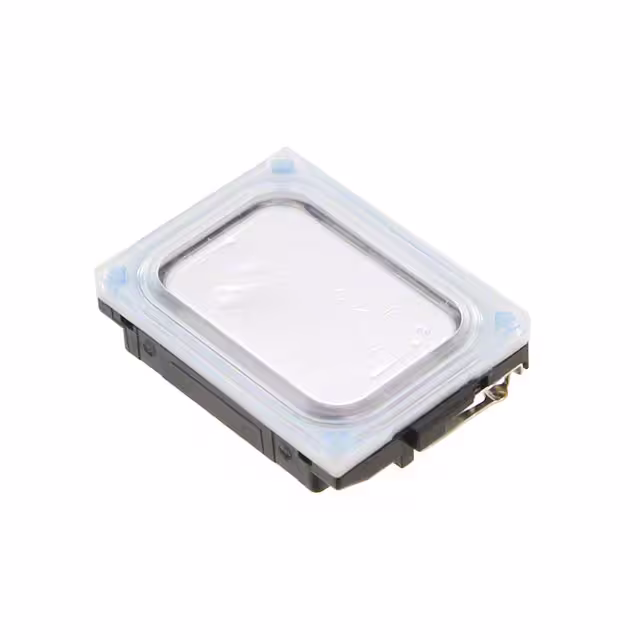

2403 260 00132SPEAKER 6OHM 1W TOP PORT 74DB |
4,186 |
|
规格书 |
SC-Cobra-WP | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 500Hz | 6 Ohms | 74.00 | 1W/10mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Silicone | Nd-Fe-B | Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

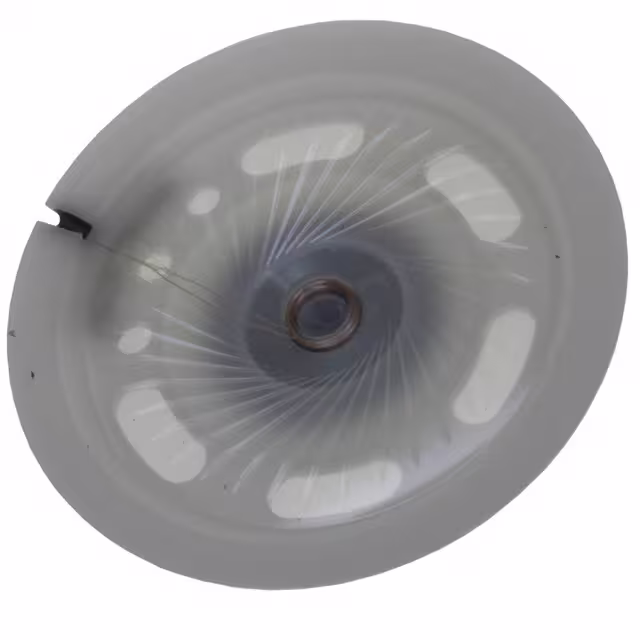

PSR-57F08S02-JQSPEAKER 8OHM 250MW TOP PORT 90DB |
2,095 |
|
规格书 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 350 Hz ~ 5 kHz | 350Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 2.244" Dia (57.00mm) |
|
|
2403 260 00177SPEAKER 8OHM 700MW TOP PORT 97DB |
4,914 |
|
规格书 |
Wildcat S9 | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 510Hz | 8 Ohms | 97.00 | 1W/1M | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

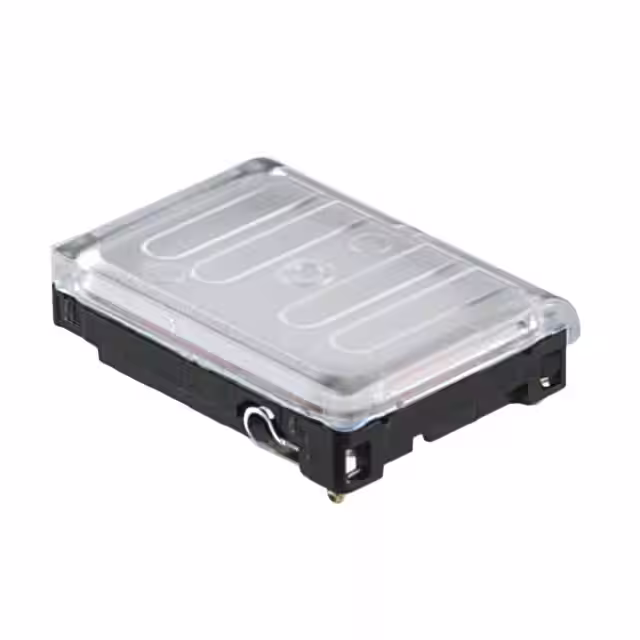

2403 260 00089SPEAKER 8OHM 600MW TOP PORT 73DB |
1,286 |
|
规格书 |
Nautilus 180 | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 10 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 600 mW | 1 W | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
COM-15350SPEAKER 8OHM 500MW TOP PORT 92DB |
2,691 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | - | 8 Ohms | 92.00 | - | Sound Pressure Level (SPL) | 500 mW | - | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|

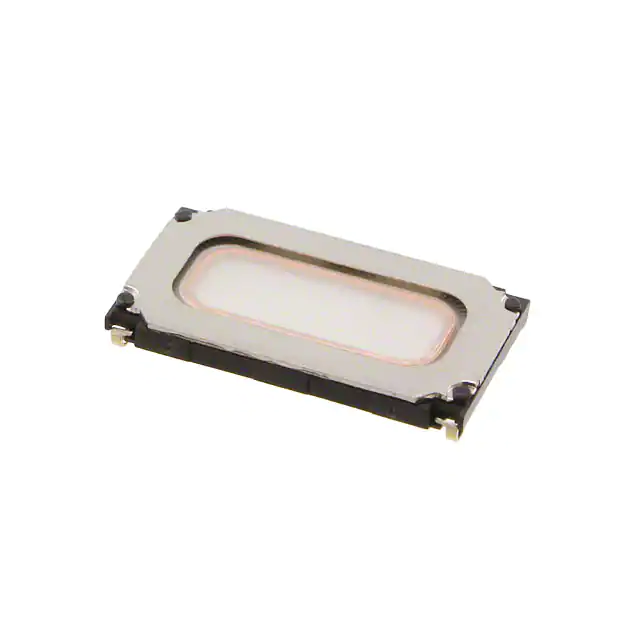

2403 263 00092SPEAKR 32OHM 100MW TOP PORT 89DB |
4,596 |
|
规格书 |
Nith | Tray | Obsolete | Magnetic | Receiver | 160 Hz ~ 10 kHz | 300Hz | 32 Ohms | 89.00 | 10mW/10mm | Sensitivity | 100 mW | 10 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|

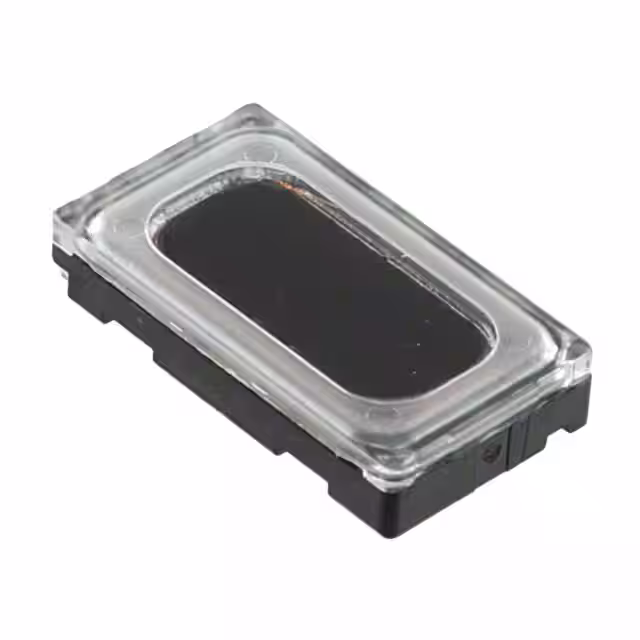

2403 260 00086SPEAKER 8OHM 500MW TOP PT 70.5DB |
1,906 |
|
规格书 |
FOX | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 850Hz | 8 Ohms | 70.50 | 1W/1M | Sensitivity | 500 mW | 700 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
OWS-2879TA-4SPEAKER 4OHM 2W TOP PORT 103DB |
2,742 |
|
规格书 |
- | Obsolete | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 570Hz | 4 Ohms | 103.00 | 2W/10cm | Sensitivity | 2 W | 3 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | IEC 60601-1-8 | Solder Pads | 1.102" Dia (28.00mm) | |
|
|
OWS-091630W50A-8SPEAKER 8OHM 1W TOP PORT 95DB |
2,992 |
|
规格书 |
* | Active | Magnetic | Microspeaker | 100 Hz ~ 20 kHz | 800Hz | 8 Ohms | 95.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|

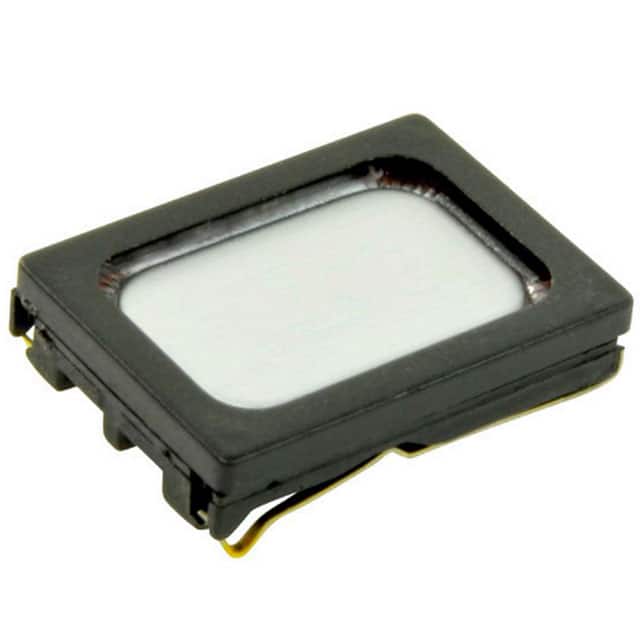

CMS-151135-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,736 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

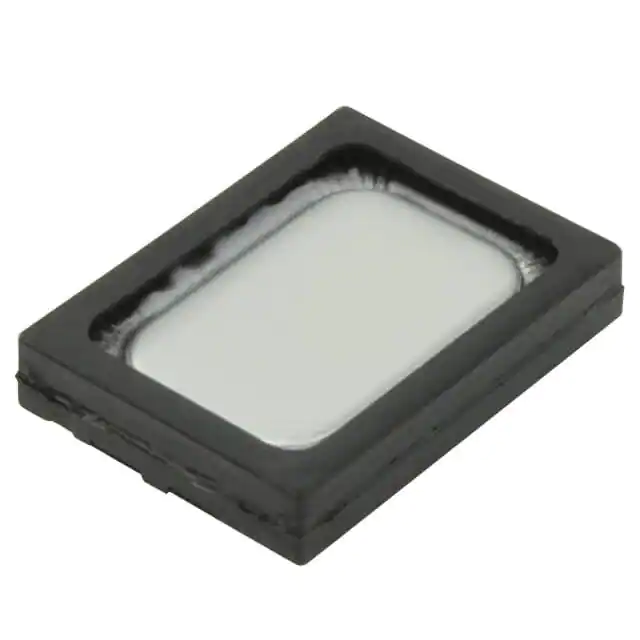

CMS-151135-076SP-67SPEAKER 6OHM 700MW TOP PORT 92DB |
2,704 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
EK-142SPEAKER |
3,312 |
|
- |
- | Tray | Active | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

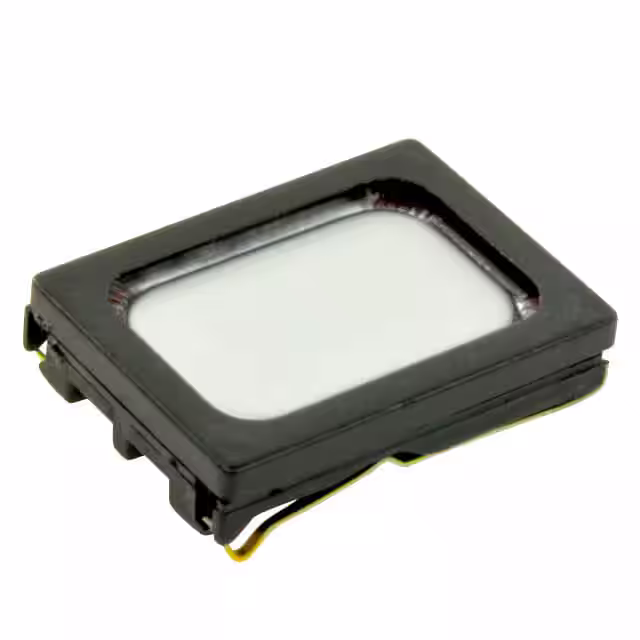

CMS-151135-076S-67SPEAKER 6OHM 700MW TOP PORT 92DB |
3,448 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
2403 260 00058SPEAKER 8OHM 700MW TOP PORT 76DB |
2,304 |
|
规格书 |
Sambo | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 15 kHz | 500Hz | 8 Ohms | 76.00 | 1W/1M | Sensitivity | 700 mW | 700 mW | Top | Rectangular | Polyester | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

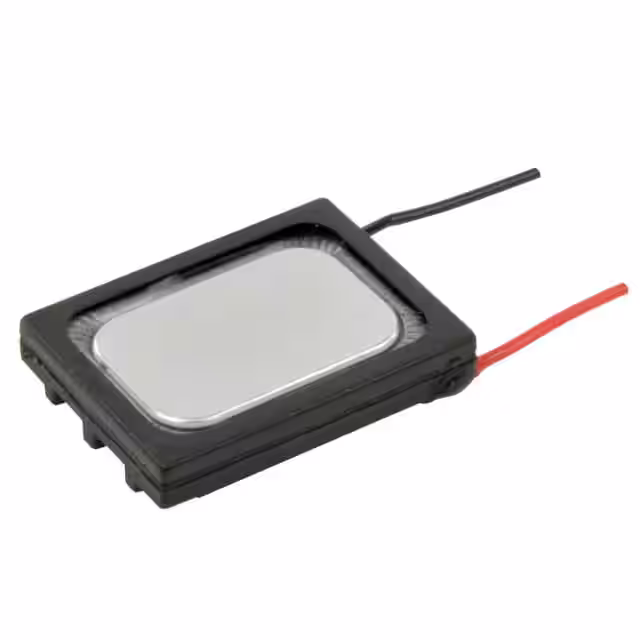

CMS-15113-076L100-67SPEAKER 6OHM 700MW TOP PORT 92DB |
4,176 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
2403 260 00133SPEAKER 8OHM 700MW TOP PORT 76DB |
4,971 |
|
规格书 |
SC-Sambo-WP | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 15 kHz | 500Hz | 8 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester | Nd-Fe-B | Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
OWR-0640T-16HSPEAKER 16OHM 5MW TOP PORT 61.8 |
3,328 |
|
规格书 |
* | Active | Magnetic | Earphone Driver | 50 Hz ~ 20 kHz | 3kHz | 16 Ohms | 61.80 | 1mW/10mm | Sound Pressure Level (SPL) | 5 mW | 10 mW | Top | Round | Plastic | Nd-Fe-B | IP64 - Dust Tight, Water Resistant | - | Solder Pads | 0.236" Dia (6.00mm) | |
|

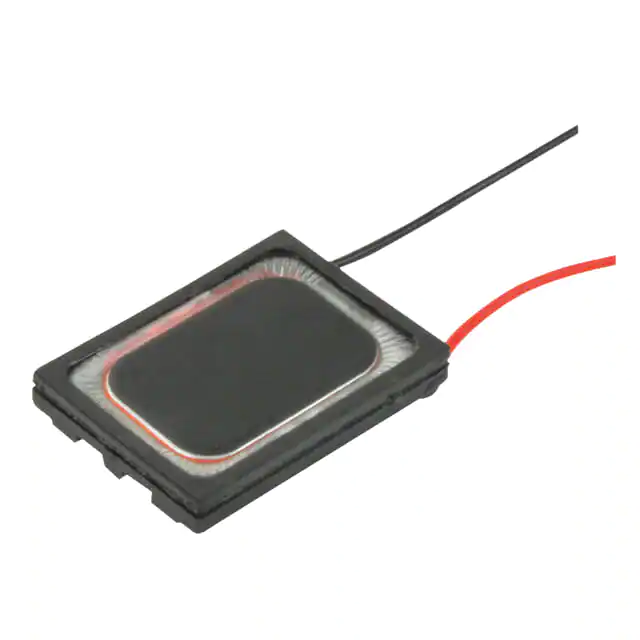

CMS-15113-078L100-67SPEAKER 8OHM 700MW TOP PORT 91DB |
4,727 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
