| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

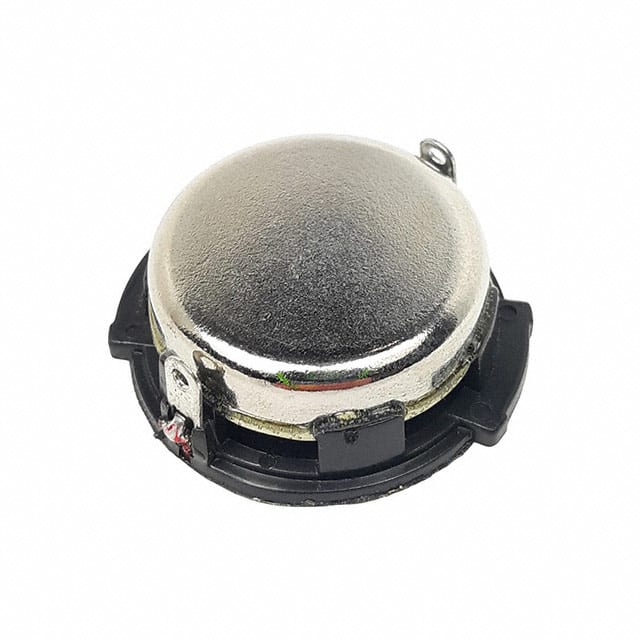

SP-3114YSPEAKER 8OHM 2W TOP PORT 82DB |
3,889 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 270 Hz ~ 20 kHz | 270Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Quick Connect | 1.220" Dia (31.00mm) |
|
PSR66N08AKSPEAKER 8OHM 1.5W TOP PORT 89DB |
2,320 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 13 kHz | 500Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|

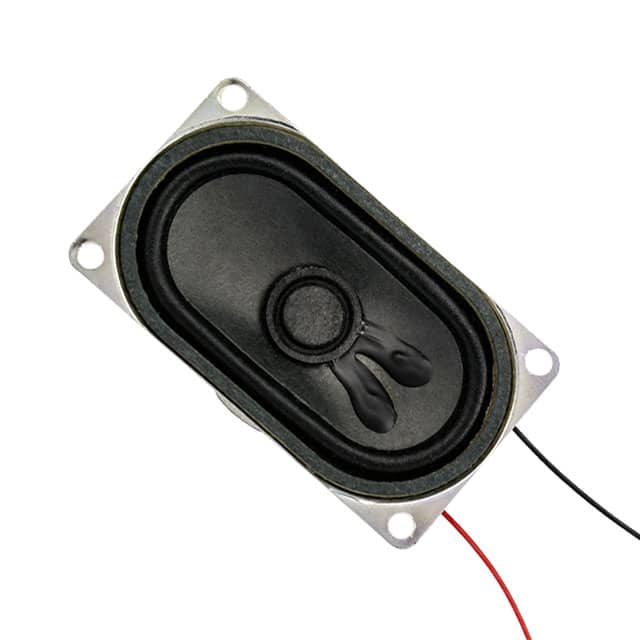

SP-7140-1SPEAKER 4OHM 3W TOP PORT 85DB |
2,935 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 300Hz | 4 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Paper/Cloth | Ferrite | - | - | Wire Leads | 2.795" L x 1.575" W (71.00mm x 40.00mm) |
|
AS07004PO-WR-RSPEAKER 4OHM 2W TOP PORT 86DB |
1,333 |
|
规格书 |
AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 300Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
|
|
PSR23N50AKSPEAKR 50OHM 600MW TOP PORT 78DB |
2,490 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 500Hz | 50 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 600 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|

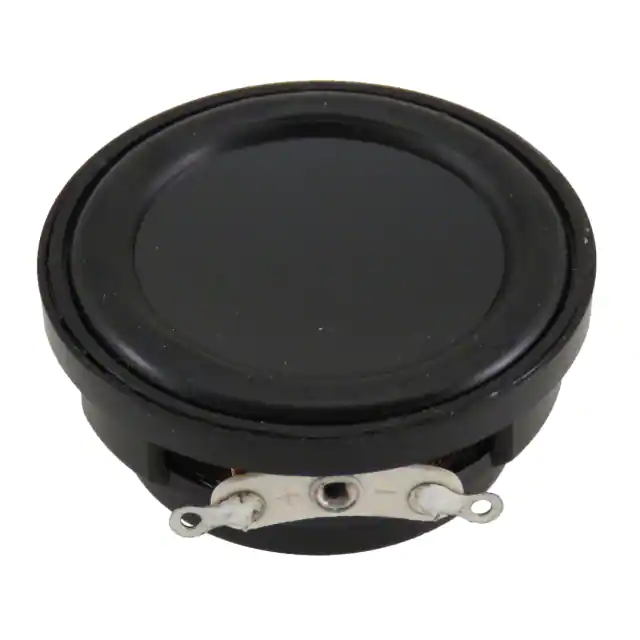

SM400104-1SPEAKER 4OHM 5W TOP PORT 100DB |
2,594 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 180Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
GF0927SPEAKER 8OHM 2W TOP PORT 93DB |
1,787 |
|
规格书 |
GF | Box | Active | Magnetic | General Purpose | 300 Hz ~ 13 kHz | 300Hz | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.622" L x 3.622" W (92.00mm x 92.00mm) |
|

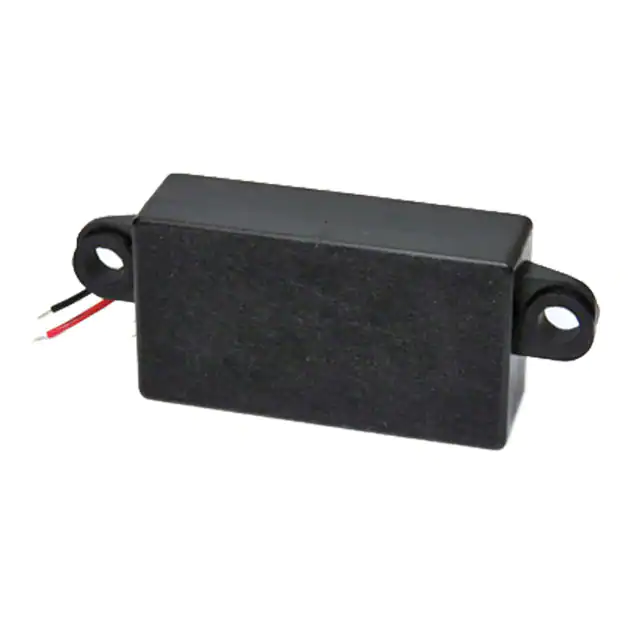

SC600204-1SPEAKER 4OHM 2W TOP PORT 100DB |
4,795 |
|
规格书 |
- | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangle | Cloth | - | - | - | Wire Leads | - |
|

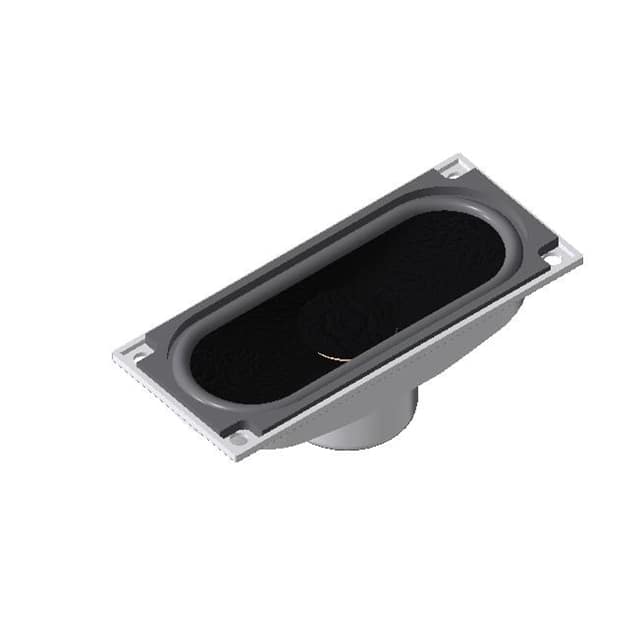

AS07008MO-RSPEAKER 8OHM 2W TOP PORT 84DB |
1,615 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 300Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Rectangular | - | Nd-Fe-B | IP55 - Dust Protected, Water Resistant | - | Solder Eyelet(s) | 2.756" L x 1.181" W (70.00mm x 30.00mm) |
|
|
PSR5151N08AKSPEAKER 8OHM 3W TOP PORT 77DB |
2,027 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.988" L x 1.988" W (50.50mm x 50.50mm) |
|
K 15 S - 8 OHMSPEAKER 8OHM 250MW TOP PORT 70DB |
3,116 |
|
规格书 |
Miniature Speaker | Bulk | Active | - | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 70.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | - | - | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
AS04004PR-WR-RSPEAKER 4OHM 3W TOP PORT 86DB |
1,678 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 180Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | Paper | Rare Earth | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
|
PSR28N08AKSPEAKER 8OHM 500MW TOP PORT 79DB |
4,583 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 600 Hz ~ 6 kHz | 600Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
|
PSR7777N08AKSPEAKER 8OHM 2W TOP PORT 84DB |
2,447 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 420 Hz ~ 9 kHz | 420Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | - |
|

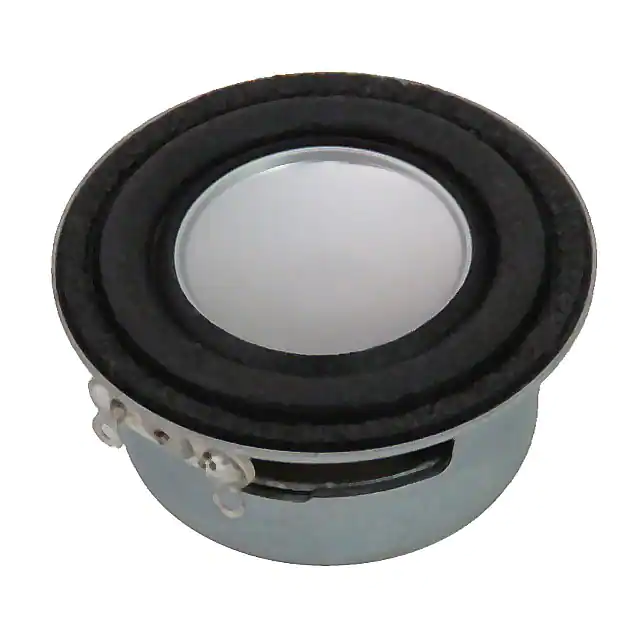

SM330104-1SPEAKER 4OHM 2.5W TOP PORT 99DB |
3,933 |
|
规格书 |
Dynamis | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 220Hz | 4 Ohms | 99.00 | 100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Aluminum (AI) | - | - | - | Solder Eyelet(s) | - |
|
|
PSR8787N08AKSPEAKER 8OHM 12W TOP PORT 90DB |
1,486 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 7.5 kHz | 500Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 12 W | 15 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Quick Connect | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
PIM350SPEAKER 4OHM 5W TOP PORT |
3,573 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose, Enclosure Included | - | - | 4 Ohms | - | - | - | 5 W | - | Top | Round | - | - | - | - | Wire Leads | - |
|

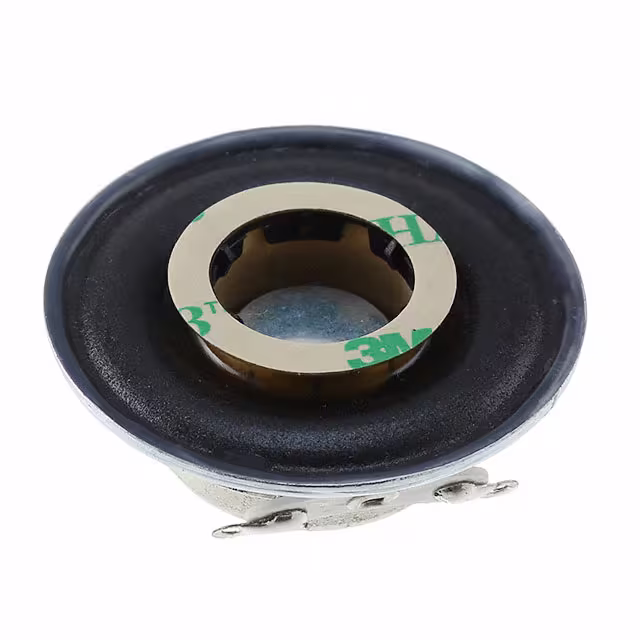

ASX04008-RSPEAKER 8OHM 3W TOP PORT 83DB |
1,136 |
|
规格书 |
ASX | Bulk | Active | Magnetic | Exciter | 450 Hz ~ 10.5 kHz | 450Hz | 8 Ohms | 83.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
R 10 S TE - 8 OHMSPEAKER 8OHM 20W TOP PORT 90DB |
3,972 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 13 kHz | 160Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
FRWS 5 R - 8 OHMSPEAKER 8OHM 4W TOP PORT 84DB |
3,091 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 250Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round | - | - | - | - | Quick Connect | 1.969" Dia (50.00mm) |
