购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBOM8TSPEAKER 3OHM 1000W TOP PORT |
2,969 |
|
- |
- | Tape & Box (TB) | Active | - | - | 80 Hz ~ 18 kHz | - | 3 Ohms | - | - | - | 1000 W | - | Top | - | - | - | - | - | - | - |
|
BPH1204T138MW100 HFSPEAKER PIEZO HAPTIC ELEMENT |
1,943 |
|
规格书 |
- | Tray | Active | - | - | - | 38kHz | - | - | - | - | - | - | - | - | - | - | - | - | Wire Leads | - |
|
SOLARBOX8TSPEAKER TOP PORT SOLAR |
2,789 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | Top | - | - | - | - | - | - | - |
|
BPH2020T130MW200 HFSPEAKER SQUARE 20X20MM PIEZO |
4,755 |
|
规格书 |
- | Tray | Active | Piezo | - | - | 38kHz | - | - | - | - | - | - | - | Square | - | - | - | - | Wire Leads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
BPH2626T112MW200 HFSPEAKER SQUARE 26X26 PIEZO |
4,944 |
|
- |
- | Tray | Active | Piezo | - | - | 38kHz | - | - | - | - | - | - | - | Square | - | - | - | - | Wire Leads | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
|
TBOM8T-2SPEAKER 3OHM 1000W TOP PORT QTY2 |
4,717 |
|
- |
- | Tape & Box (TB) | Active | - | - | 80 Hz ~ 18 kHz | - | 3 Ohms | - | - | - | 1000 W | - | Top | - | - | - | - | - | - | - |
|
FLAG12DRTSPEAKER 4OHM 2000W TOP PORT |
3,180 |
|
- |
- | Tape & Box (TB) | Active | - | - | 20 Hz ~ 18 kHz | - | 4 Ohms | - | - | - | 2000 W | - | Top | - | - | - | - | - | - | - |
|

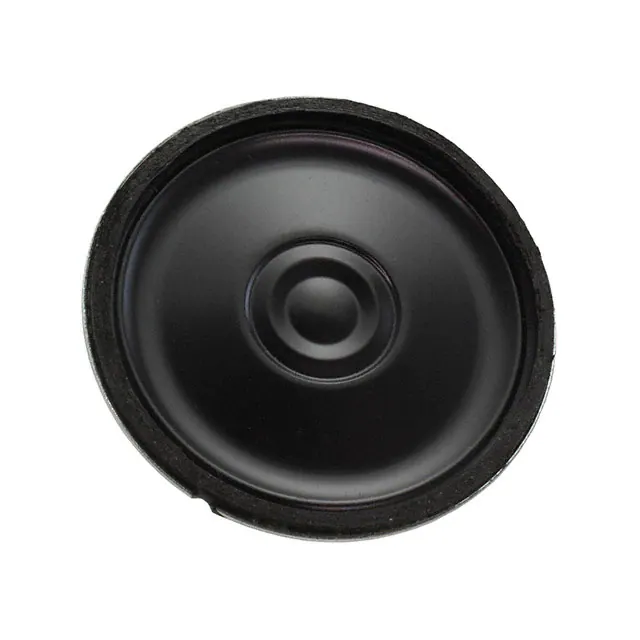

SP-4005YSPEAKER 8OHM 1W TOP PORT 88DB |
3,821 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 5 kHz | 500Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|

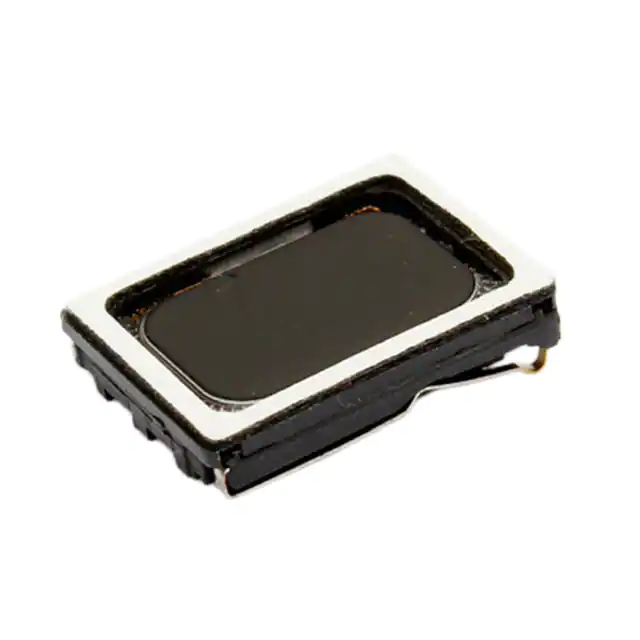

SP-1511S-1SPEAKER 8OHM 700MW TOP PORT 83DB |
3,728 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 5 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | N42 | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

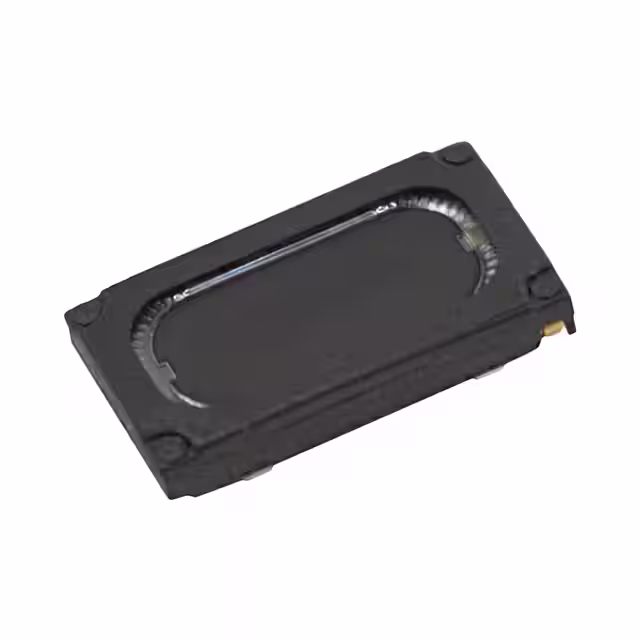

CMS-16098A-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
2,179 |
|
规格书 |
CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 10 kHz | 550Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS01808AO-SC18-WP-RSPEAKER 8OHM 1W TOP PORT 94DB |
2,710 |
|
规格书 |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 14 kHz | 420Hz | 8 Ohms | - | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

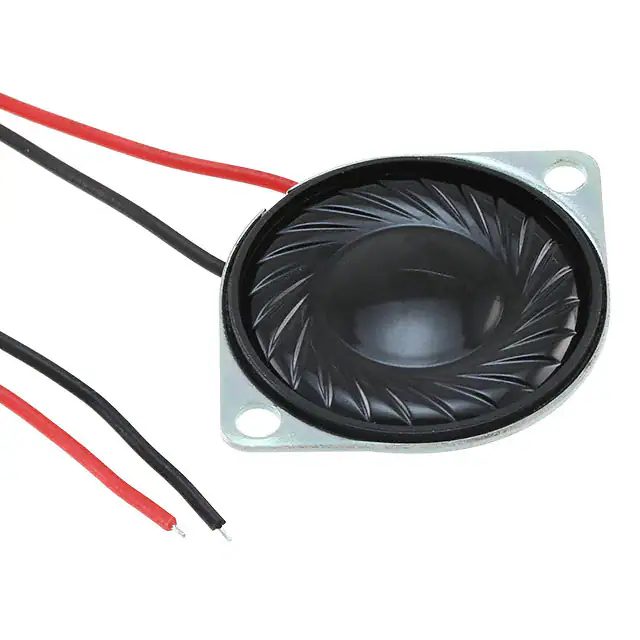

CMS-28528N-L152SPEAKER 8OHM 2W TOP PORT 99DB |
2,014 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|

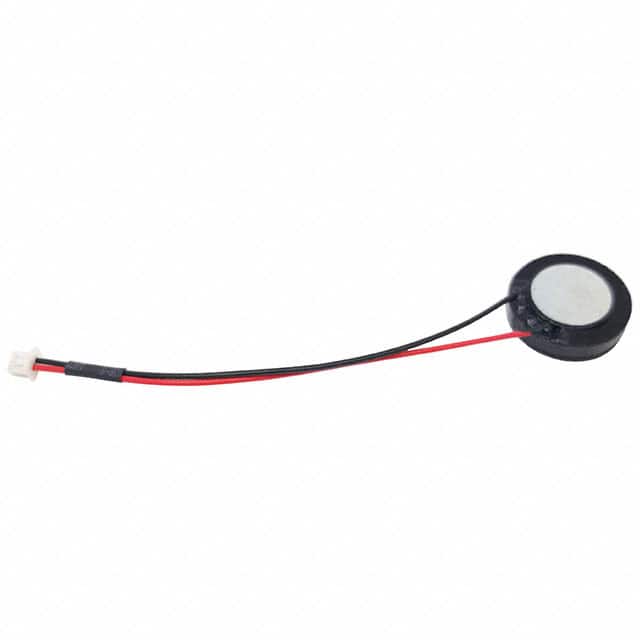

WSPH-1805WSPEAKER 8OHM 1W TOP PORT 86DB |
4,942 |
|
规格书 |
WSP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 950Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.709" Dia (18.00mm) |
|

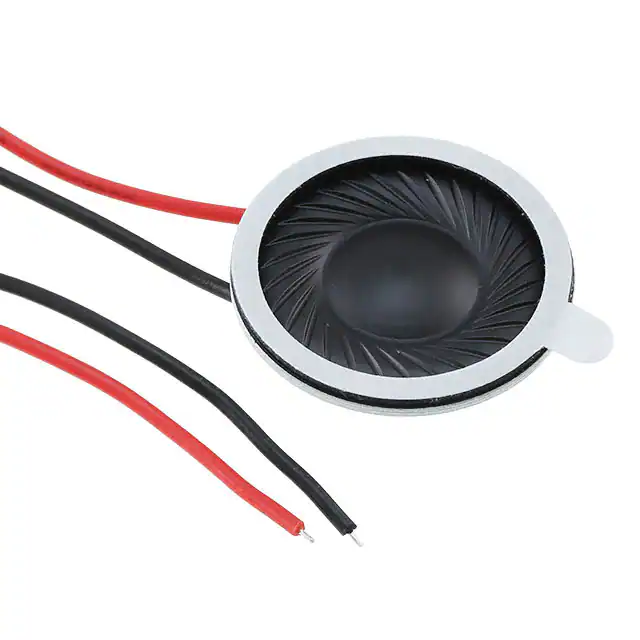

CMS-23558N-L152SPEAKER 8OHM 1W TOP PORT 80DB |
1,668 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|

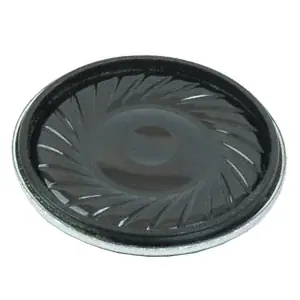

CLS0201MA-L152SPEAKER 8OHM 500MW TOP PORT 86DB |
4,514 |
|
规格书 |
CLS | Tray | Active | Magnetic | Low Profile | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 86.00 | 1W/50mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
|
|
AS03608MR-10-RSPEAKER 8OHM 1W TOP PORT 91DB |
4,567 |
|
规格书 |
- | Box | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.417" Dia (36.00mm) |
|

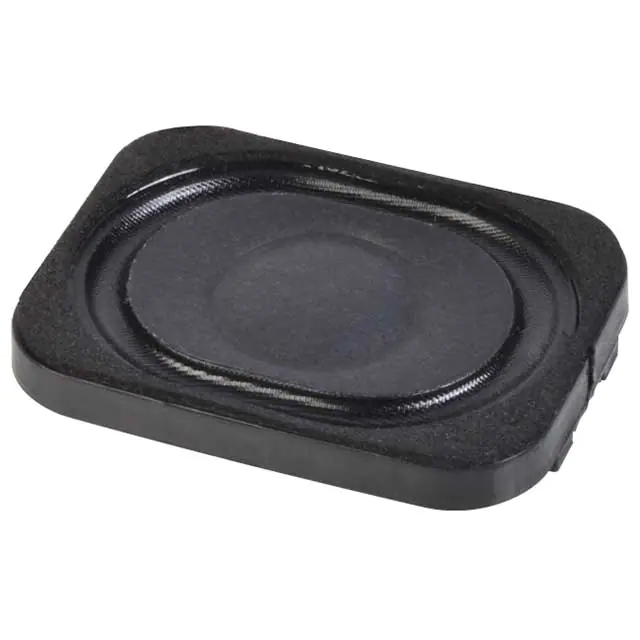

CDS-40304SPEAKER 4OHM 2W TOP PORT 79DB |
4,293 |
|
规格书 |
CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-231210-18PMSPEAKER 8OHM 1W TOP PORT 88DB |
2,765 |
|
规格书 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181" L x 0.512" W (30.00mm x 13.00mm) |
|
OC25SC65-04SPEAKER 3.2OHM 25W TOP PT 89.2DB |
3,948 |
|
规格书 |
OC | Bulk | Active | Magnetic | Tweeter | 1.3 kHz ~ 20 kHz | 1382.22Hz | 3.2 Ohms | 89.20 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 1.280" Dia (32.50mm) |
|
FRS 7 - 4 OHMSPEAKER 4OHM 8W TOP PORT 88DB |
4,355 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | - |
