| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V80102MS02QESWITCH SLIDE DPST 10A 125V |
1,226 |
|
规格书 |
V | Tray | Active | DPST | Not Specified | On-Off | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole | PC Pin | O - Marking, Epoxy Sealed Terminals |
|
S202131TSWCQSWITCH SLIDE DPDT 6A 125V |
2,691 |
|
规格书 |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 6A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Panel Mount | Wire Leads | No Marking |
|
|
V80213SL08QSWITCH SLIDE DPDT 10A 125V |
4,778 |
|
规格书 |
V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Right Angle | PC Pin | No Marking |
|
1101M2S3AGE2SWITCH SLIDE SPDT 6A 120V |
2,817 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1101M2S2V3GE2SWITCH SLIDE SPDT 6A 120V |
2,752 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
TG36P010000SWITCH SLIDE SPDT 500MA 48V |
4,309 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1101M2S5ABE2SWITCH SLIDE SPDT 0.4VA 20V |
4,290 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1101M2S3WQE2SWITCH SLIDE SPDT 6A 120V |
3,523 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | Wire Wrap | - |
|
|
S202091MS02GSWITCH SLIDE DPDT 6A 125V |
3,747 |
|
规格书 |
S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 6.35mm | Copper | Gold | Through Hole | PC Pin | - |
|

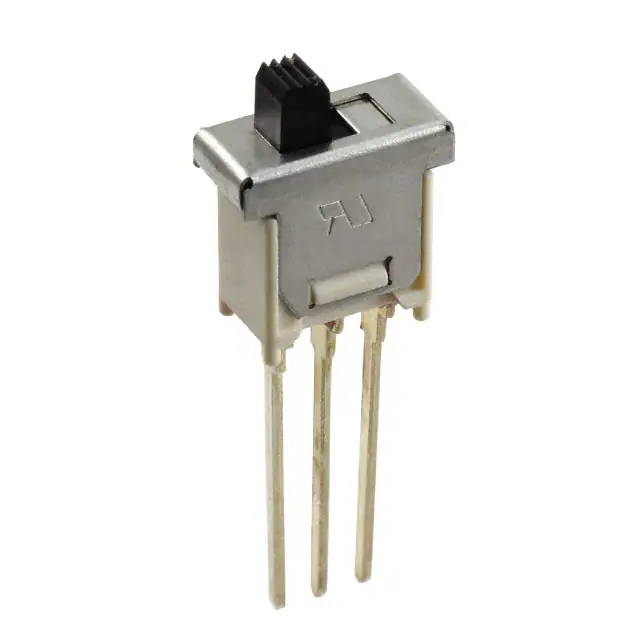

TS01WQESWITCH SLIDE SPDT 3A 120V |
3,166 |
|
规格书 |
TS | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
4M1-SDP1-S1/2-M2RESWITCH SLIDE DPDT 0.4VA 20V |
3,588 |
|
规格书 |
4M | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Gold (Au) | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
4M1-SDP1-S4/2-M1PESWITCH SLIDE DPDT 5A 125V |
3,444 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 3.55mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
4M1-SDP1-S1/2-M2GESWITCH SLIDE DPDT 5A 125V |
1,456 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.10mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
4M1-SDP1-S1/2-M2PESWITCH SLIDE DPDT 5A 125V |
3,950 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.10mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
SE2DGRASWITCH SLIDE DPDT 0.4VA 20V |
2,381 |
|
规格书 |
SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
|
L202011MS12QSWITCH SLIDE DPDT 4A 125V |
3,057 |
|
规格书 |
L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
1203M2S3AQE3SWITCH SLIDE DPDT 6A 120V |
3,141 |
|
规格书 |
1000 | Tray | Active | DPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, Red Actuator |
|
|
TG36W000050SWITCH SLIDE SPDT 0.4VA 20V |
1,536 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Washable |
|
|
4M1-SDP3-S4/2-VS2QESWITCH SLIDE DPDT 5A 125V |
1,258 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 3.55mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
4M1-SDP3-S5/ 3-M2QESWITCH SLIDE DPDT 5A 125V |
4,681 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 1.35mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
