购物车滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS01CGESWITCH SLIDE SPDT 3A 120V |
2,429 |
|
规格书 |
TS | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
48ASDP1S1M2QBTSWITCH SLIDE DPDT 5A 125V |
2,273 |
|
规格书 |
48A | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M1S4ZBE2SWITCH SLIDE SPDT 0.4VA 20V |
3,077 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.24mm | Copper | Gold | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
|
4S1-FSP3-M2QESWITCH SLIDE SPDT 3A 125V |
3,565 |
|
- |
4S | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (AC/DC) | 125 V | 28 V | Standard | 3.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
V70212MA08QSWITCH SLIDE SPDT 10A 125V |
3,597 |
|
规格书 |
V | Tray | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Through Hole, Right Angle | PC Pin | 115V-230V Marking |
|
|
1825255-3SWITCH SLIDE SPDT 300MA 125V |
2,291 |
|
规格书 |
MHS | Tape & Box (TB) | Active | SPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825032-3SWITCH SLIDE DPDT 0.4VA 20V |
3,665 |
|
规格书 |
SE | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof |
|
1103M1S2ZQE2SWITCH SLIDE SPDT 6A 120V |
2,450 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.56mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|

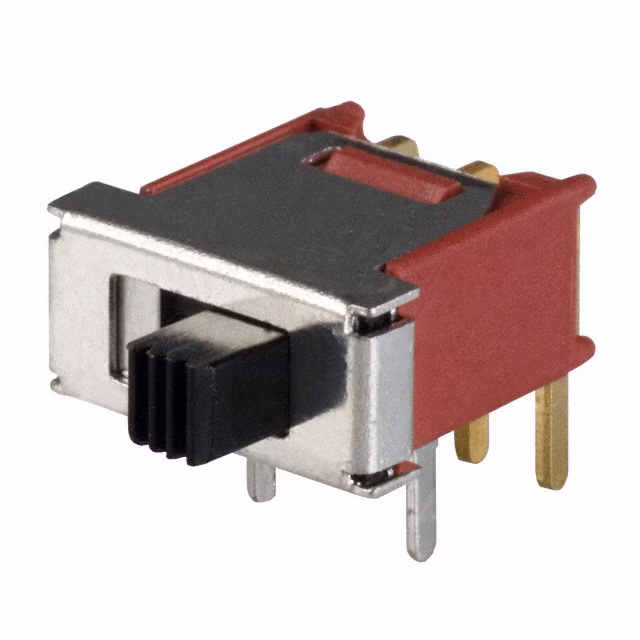

4S1-FSP1-M6RESWITCH SLIDE SPDT 0.4VA 20V |
4,255 |
|
规格书 |
4S | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.90mm | Gold (Au) | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP3S6M6QATSWITCH SLIDE DPDT 5A 125V |
4,927 |
|
规格书 |
48A | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 12.32mm | Copper Alloy | Silver | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP1S1M7RBTSWITCH SLIDE DPDT 0.4VA 20V |
2,868 |
|
规格书 |
48A | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
4S1-FSP1-M6QET/RSWITCH SLIDE SPDT 3A 125V |
2,563 |
|
- |
4S | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 125 V | 28 V | Standard | 3.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
S702C21S207DQSWITCH SLIDE SPDT 15A 125V |
3,210 |
|
规格书 |
S | Bulk | Active | SPDT | Not Specified | On-On | 15A (AC) | 125 V | - | Snap on Cap | 5.08mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - |
.jpg)
|
GS02MSAKE(T&R)SWITCH SLIDE SPST 0.4VA 20V |
3,361 |
|
规格书 |
GS | Tape & Reel (TR) | Obsolete | SPST | Not Specified | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.27mm | Beryllium Copper | Gold | Surface Mount, Right Angle | Gull Wing | Epoxy Sealed Terminals |
|
|
GC36S010001SWITCH SLIDE SPDT 3A 30V |
2,175 |
|
规格书 |
G | Tube | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 3.50mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
1101M1S3WQE2SWITCH SLIDE SPDT 6A 120V |
3,793 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Wire Wrap | Black Actuator, Epoxy Sealed Terminals |
|
|
TG36WS80065SWITCH SLIDE SPDT 0.4VA 20V |
3,442 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Surface Mount, Right Angle | Gull Wing | Washable |
|
|
GH39P000001SWITCH SLIDE SPDT 0.4VA 20V |
4,832 |
|
规格书 |
G | Tube | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
L212142MV02Q2SWITCH SLIDE DPDT 4A 125V |
4,835 |
|
规格书 |
L | Tray | Active | DPDT | Not Specified | On-Mom | 4A (AC/DC) | 125 V | 28 V | Snap on Cap | 9.27mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
|
|
48ASDP1S1M1QATSWITCH SLIDE DPDT 5A 125V |
4,680 |
|
规格书 |
48A | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
