购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

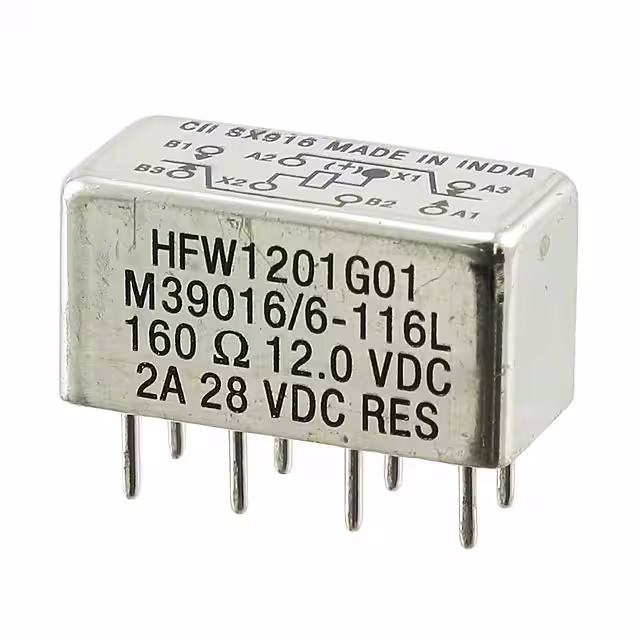

HFW1201G01RELAY GEN PURPOSE DPDT 2A 12V |
2,909 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
R10-E1Z6-V90RELAY GEN PURPOSE 6PDT 2A 12V |
3,396 |
|
规格书 |
R10 | Bulk | Active | Socketable | 12VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | - | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
JMGSCD-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
3,280 |
|
规格书 |
MGSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/42 |
|
5-1617032-8RELAY GEN PURPOSE DPDT 2A 26.5V |
2,675 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
LSAW-2C-12BRELAY GEN PURPOSE DPDT 2A 12V |
2,533 |
|
规格书 |
LS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 47.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 6.5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
UA2-4.5SNURELAY GEN PURPOSE DPDT 1A 4.5V |
3,642 |
|
规格书 |
UA2 | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 22.2 mA | Latching, Single Coil | - | PC Pin | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UA2-12SNURELAY GEN PURPOSE DPDT 1A 12V |
1,611 |
|
规格书 |
UA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TQ2SL-L-12VRELAY TELECOM DPDT 2A 12V |
4,129 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 5.8 mA | Latching, Single Coil | - | Gull Wing | - | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TX2-9V-THRELAY GENERAL PURPOSE DPDT 2A 9V |
2,812 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TX2-LT-1.5V-THRELAY GEN PURPOSE DPDT 2A 1.5V |
1,606 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 93.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TX2SS-4.5VRELAY TELECOM DPDT 2A 4.5V |
4,674 |
|
规格书 |
TX | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 31 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2-L2-4.5VRELAY TELECOM DPDT 2A 4.5V |
1,936 |
|
规格书 |
TX | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 44.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2-L2-9VRELAY TELECOM DPDT 2A 9V |
2,657 |
|
规格书 |
TX | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 22.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2SA-1.5V-ZRELAY TELECOM DPDT 2A 1.5V |
2,478 |
|
规格书 |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 93.8 mA | Non Latching | - | Gull Wing | - | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TXD2-L-12VRELAY GEN PURPOSE DPDT 2A 12V |
1,327 |
|
规格书 |
TX-D | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 12.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6S-2G-TR DC9RELAY TELECOM DPDT 2A 9V |
4,693 |
|
规格书 |
G6S | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.6 mA | Non Latching | - | J Lead | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
AGN200A09ZRELAY TELECOM DPDT 1A 9V |
2,871 |
|
规格书 |
AGN | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
TX2-LT-2.4V-THRELAY GEN PURPOSE DPDT 2A 2.4V |
3,419 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 2.4VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 58.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.8 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2-1.5VRELAY GEN PURPOSE DPDT 2A 1.5V |
3,707 |
|
规格书 |
TX-D | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DS1E-M-DC6VRELAY GENERAL PURPOSE SPDT 2A 6V |
4,661 |
|
- |
DS | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
