购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6A-274P-ST40-US DC24RELAY GEN PURPOSE DPDT 2A 24V |
1,316 |
|
规格书 |
G6A | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
IMB06IGRRELAY TELECOM SPST 2A 12V |
1,411 |
|
规格书 |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|

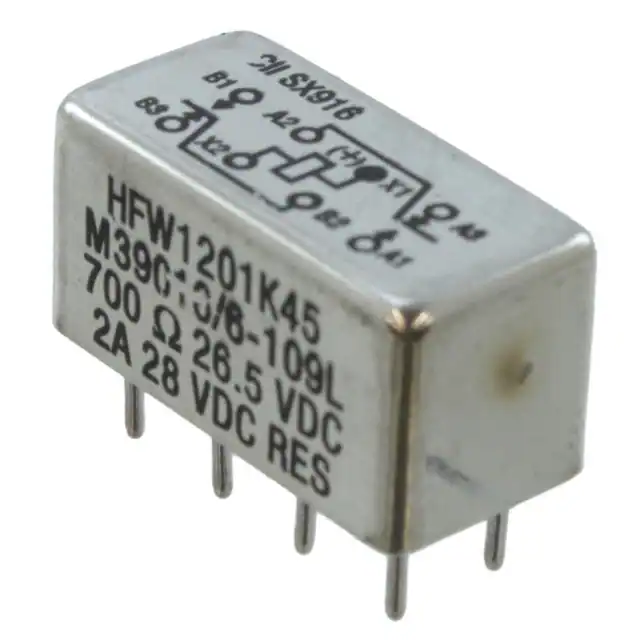

HFW1201K45RELAY GEN PURPOSE DPDT 2A 26.5V |
2,111 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|

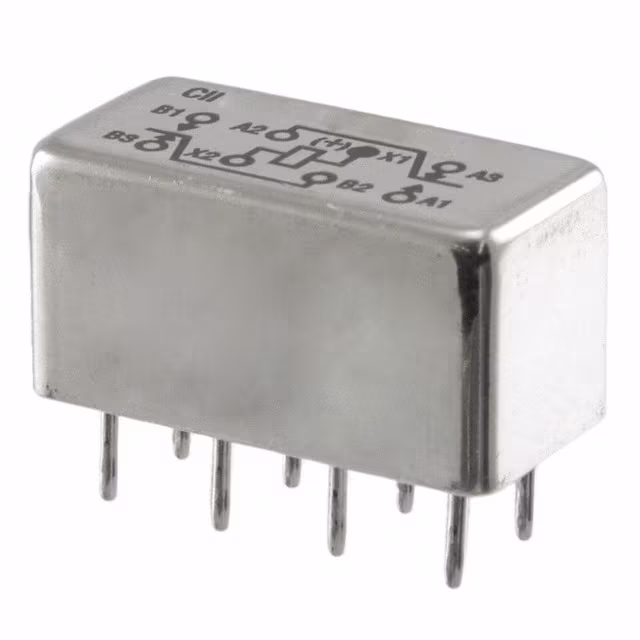

HFW1201G01MRELAY GEN PURPOSE DPDT 2A 12V |
1,319 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|

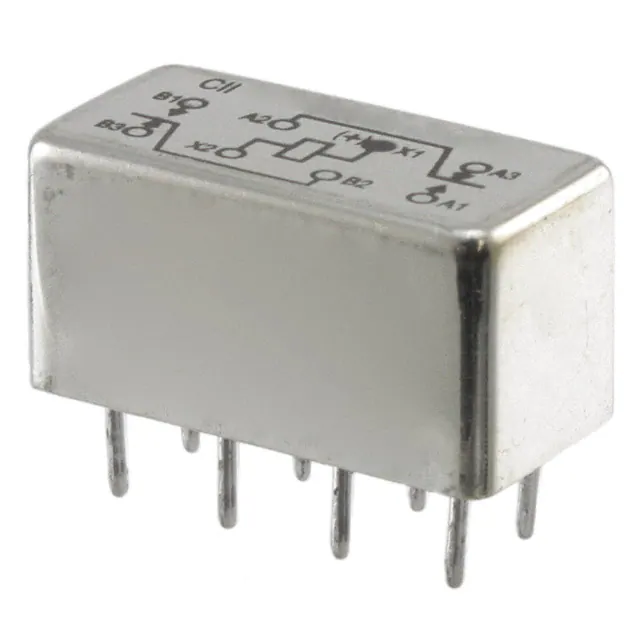

HFW1201K45MRELAY GEN PURPOSE DPDT 2A 26.5V |
3,265 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
JMSWD-5XMRELAY GENERAL PURPOSE DPDT 1A 5V |
3,368 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
TQ2-L-12VRELAY TELECOM DPDT 1A 12V |
1,742 |
|
规格书 |
TQ | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
EC2-5NJRELAY GENERAL PURPOSE DPDT 2A 5V |
2,046 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EC2-12TNURELAY GEN PURPOSE DPDT 2A 12V |
3,124 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-3SNUH-LRELAY GENERAL PURPOSE DPDT 2A 3V |
4,485 |
|
规格书 |
EE2 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2-5V-THRELAY GENERAL PURPOSE DPDT 2A 5V |
4,053 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2-3V-1RELAY GEN PURPOSE DPDT 10MA 3V |
1,359 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
G6SK-2 DC24RELAY TELECOM DPDT 2A 24V |
1,810 |
|
规格书 |
G6S | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2-48VRELAY TELECOM DPDT 2A 48V |
3,891 |
|
规格书 |
TX | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
DS1E-ML2-DC12VRELAY GEN PURPOSE SPDT 2A 12V |
1,028 |
|
规格书 |
DS | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
V23101D1106B201RELAY GEN PURPOSE SPDT 1.25A 12V |
4,467 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 17.2 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
MYQ4-02-DC24RELAY GEN PURPOSE 4PDT 1A 24V |
2,249 |
|
规格书 |
MY | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 36.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
MYQ4-AC110/120RELAY GEN PURPOSE 4PDT 1A 120V |
4,848 |
|
规格书 |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 9.2 mA | Non Latching | - | Plug In | Sealed - Fully | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
MYQ4Z DC24RELAY GEN PURPOSE 4PDT 1A 24V |
2,417 |
|
规格书 |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 36.9 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

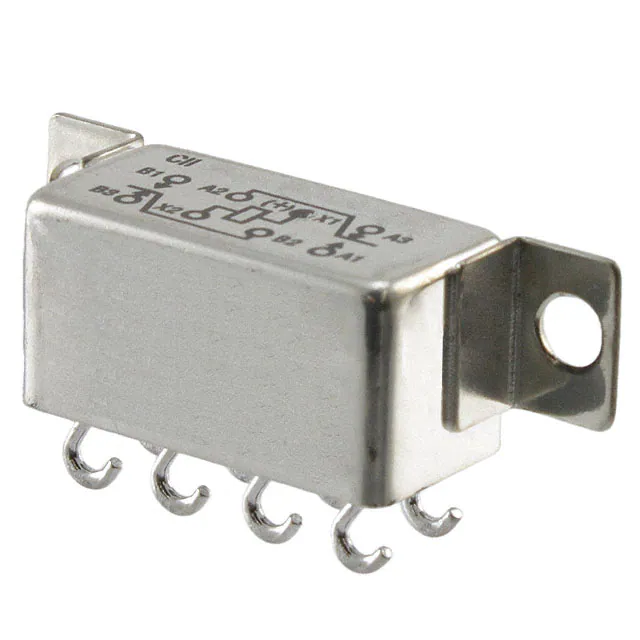

HFW1131K04RELAY GEN PURPOSE DPDT 2A 26.5V |
4,491 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
