购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2900311RELAY GEN PURPOSE SPDT 50MA 230V |
4,730 |
|
规格书 |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
2980034RELAY GEN PURPOSE SPDT 50MA 125V |
2,462 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 125VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2910507RELAY GEN PURPOSE DPDT 50MA 24V |
3,982 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 20.2 VDC | - | 10 ms | 10 ms | -20°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
2900342RELAY GEN PURPOSE DPDT 50MA 120V |
2,896 |
|
规格书 |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
2900321RELAY GEN PURPOSE SPDT 50MA 24V |
2,071 |
|
规格书 |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 4 ms | 4 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|

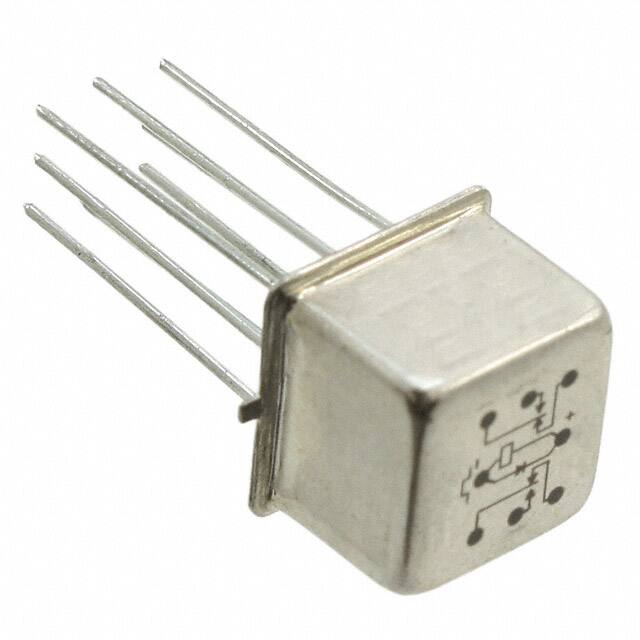

JMGACD-12MWRELAY GEN PURPOSE DPDT 1A 12V |
1,475 |
|
规格书 |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
2900349RELAY GEN PURPOSE DPDT 50MA 24V |
4,808 |
|
规格书 |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 20 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 11 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

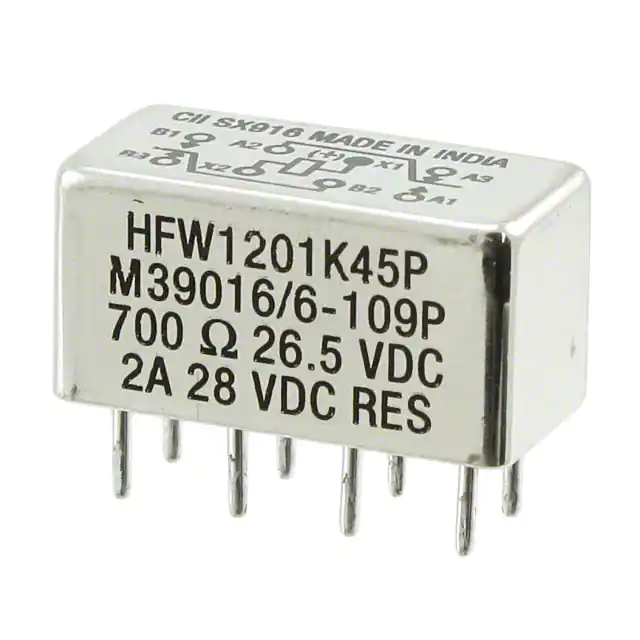

HFW1201K45PRELAY GEN PURPOSE DPDT 2A 26.5V |
4,160 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
|
JMSWD-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
3,375 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
|
SMGSD-12RELAY GEN PURPOSE DPDT 1A 12V |
2,277 |
|
规格书 |
SMGSD, CII | Bulk | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | - | - | 15 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
SMGSD-18RELAY GEN PURPOSE DPDT 1A 18V |
4,852 |
|
- |
SMGSD, CII | Bulk | Active | Surface Mount | 18VDC | DPDT (2 Form C) | 1 A | - | - | 11.3 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1312010000RELAY GEN PURPOSE SPDT 100MA 24V |
3,685 |
|
规格书 |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 100 mA | 24VDC - Max | - | 13 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -20°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
G5V-2-H-DC3RELAY GENERAL PURPOSE DPDT 2A 3V |
3,395 |
|
规格书 |
G5V-2 | Bulk | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.15 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TX2-L-9VRELAY TELECOM DPDT 2A 9V |
2,229 |
|
规格书 |
TX | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 11.1 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
C93430RELAY TELECOM DPDT 2A 48V |
1,852 |
|
规格书 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.5 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
HY1-1.5VRELAY TELECOM SPDT 1A 1.5V |
2,491 |
|
规格书 |
HY | Tube | Obsolete | Through Hole | 1.5VDC | SPDT (1 Form C) | 1 A | 60VDC - Max | 60W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 5 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
AGN2601HRELAY TELECOM DPDT 1A 1.5V |
2,685 |
|
规格书 |
AGN | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.2 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
TX2-L2-24V-THRELAY GEN PURPOSE DPDT 2A 24V |
3,986 |
|
规格书 |
TX-TH | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AGN260A4HRELAY TELECOM DPDT 1A 4.5V |
3,497 |
|
规格书 |
AGN | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
G6EK-134P-ST-US DC1.5RELAY GEN PURPOSE SPDT 2A 1.5V |
4,622 |
|
规格书 |
G6E | Tube | Active | Through Hole | 1.5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.05 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
