购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX2-5V-1RELAY TELECOM DPDT 1A 5V |
3,155 |
|
规格书 |
TX | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TQ2SL-L2-1.5VRELAY TELECOM DPDT 2A 1.5V |
4,938 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 93.8 mA | Latching, Dual Coil | - | Gull Wing | - | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TX2SS-3VRELAY TELECOM DPDT 2A 3V |
2,164 |
|
规格书 |
TX | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 46.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2SS-L2-12VRELAY TELECOM DPDT 2A 12V |
1,239 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 11.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TX2SA-L2-24V-1RELAY TELECOM DPDT 1A 24V |
2,956 |
|
规格书 |
TX | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 8.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
TX2SA-12V-1RELAY TELECOM DPDT 1A 12V |
1,216 |
|
规格书 |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TQ2H-4.5VRELAY TELECOM DPDT 1A 4.5V |
4,791 |
|
规格书 |
TQ | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 31.1 mA | Non Latching | - | PC Pin | - | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2-24V-1RELAY TELECOM DPDT 1A 24V |
3,862 |
|
规格书 |
TX | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 5.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TQ2H-L2-12VRELAY TELECOM DPDT 1A 12V |
2,864 |
|
规格书 |
TQ | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2SA-L-3VRELAY TELECOM DPDT 2A 3V |
2,944 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 23.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|

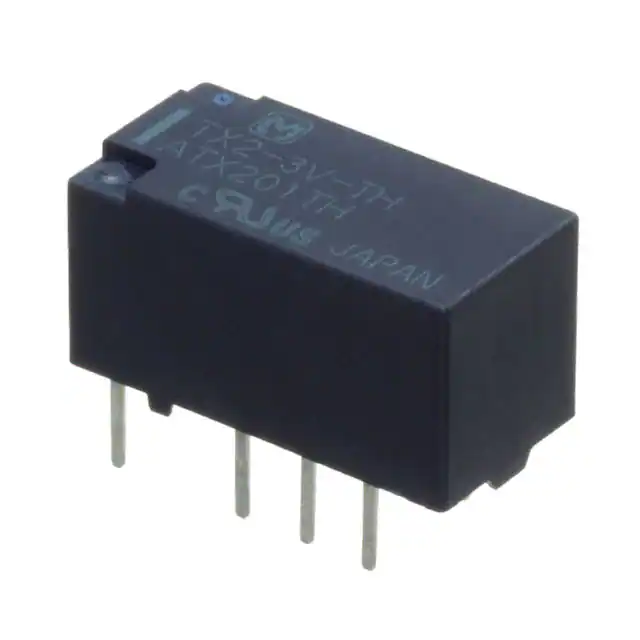

TX2-3V-THRELAY GENERAL PURPOSE DPDT 2A 3V |
4,630 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2-12V-1RELAY GEN PURPOSE DPDT 10MA 12V |
3,364 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 4.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXS2-6V-1RELAY GEN PURPOSE DPDT 10MA 6V |
1,823 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TX2-LT-12VRELAY TELECOM DPDT 2A 12V |
3,890 |
|
规格书 |
TX | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TXD2-L-5VRELAY GENERAL PURPOSE DPDT 2A 5V |
2,764 |
|
规格书 |
TX-D | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 30 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TQ2SL-L2-24VRELAY TELECOM DPDT 2A 24V |
2,307 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 8.3 mA | Latching, Dual Coil | - | Gull Wing | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TX2-LT-4.5V-THRELAY GEN PURPOSE DPDT 2A 4.5V |
1,836 |
|
规格书 |
TX-TH | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2-L-4.5V-1RELAY GEN PURPOSE DPDT 10MA 4.5V |
3,957 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 7.8 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
TXS2-L2-4.5V-1RELAY GEN PURPOSE DPDT 10MA 4.5V |
4,706 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 10VDC - Max | - | 15.6 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
AGQ21T24RELAY GEN PURPOSE DPDT 2A 24V |
100 |
|
规格书 |
AGQ TH | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 5 mA | Latching, Single Coil | - | PC Pin | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
