购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23026E1105B201RELAY GENERAL PURPOSE SPDT 1A 9V |
7,680 |
|
规格书 |
V23026, AXICOM | Tape & Reel (TR) | Obsolete | Surface Mount | 9VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | - | 7.5 mA | Latching, Dual Coil | - | Gull Wing | - | - | 6.75 VDC | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|

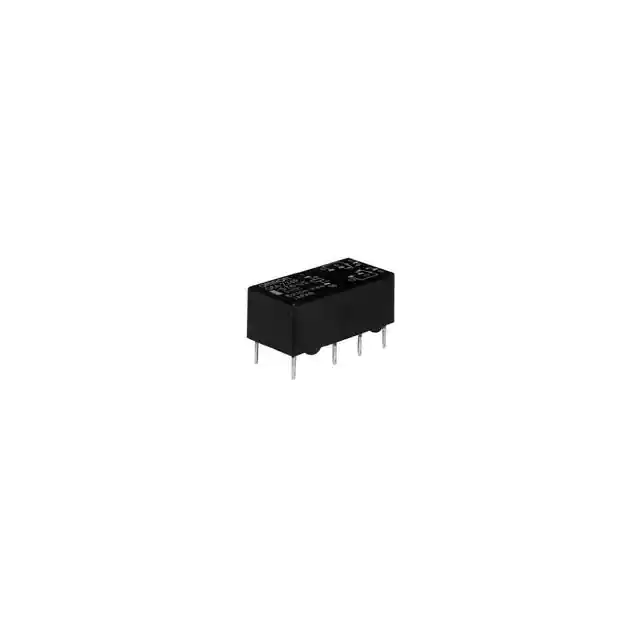

G6A-274P-ST10-US-DC48RELAY GEN PURPOSE DPDT 2A 48V |
183 |
|
- |
G6A | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | - | 4.9 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
23382-70RELAY SPDT 5A 24V |
238 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1617147-4RELAY GEN PURPOSE DPDT 1A 26.5V |
4,383 |
|
规格书 |
MGAP | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617148-1RELAY GEN PURPOSE DPDT 1A 12V |
3,974 |
|
规格书 |
MGAPD | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617124-3RELAY GEN PURPOSE DPDT 1A 26.5V |
3,756 |
|
规格书 |
MAPD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617127-1RELAY GEN PURPOSE DPDT 1A 12V |
2,832 |
|
规格书 |
MSC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
3-1617118-9RELAY GEN PURPOSE SPDT 1A 26.5V |
1,148 |
|
规格书 |
1MAP | Box | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 28VDC - Nom | - | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617029-3RELAY GEN PURPOSE DPDT 2A 26.5V |
381 |
|
规格书 |
HFW, CII | Box | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
|
1617126-6RELAY GEN PURPOSE DPDT 1A 26.5V |
148 |
|
规格书 |
MAWD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617109-1RELAY GEN PURPOSE DPDT 1A 12V |
2,451 |
|
规格书 |
- | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
3-1617146-4RELAY GEN PURPOSE DPDT 1A 12V |
678 |
|
规格书 |
MGACDG | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617152-7RELAY GEN PURPOSE DPDT 1A 26.5V |
387 |
|
规格书 |
MGSPD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617132-8RELAY GENERAL PURPOSE DPDT 1A 5V |
1,453 |
|
规格书 |
MSWD | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617163-9RELAY GEN PURPOSE DPDT 1A 26.5V |
639 |
|
规格书 |
MACDD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617128-8RELAY GEN PURPOSE DPDT 1A 18V |
3,210 |
|
规格书 |
MSCD | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617110-6RELAY GENERAL PURPOSE DPDT 1A 5V |
1,152 |
|
规格书 |
MGAT | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 2 ms | - | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
5-1617350-7RELAY GENERAL PURPOSE DPDT 1A 5V |
1,791 |
|
规格书 |
MGST | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617038-5RELAY GEN PURPOSE DPDT 2A 26.5V |
1,998 |
|
规格书 |
HMB, CII | Box | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617163-1RELAY GEN PURPOSE DPDT 1A 26.5V |
4,114 |
|
规格书 |
MADD, CII | Box | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/20 |
