购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TN2-H-12VRELAY GEN PURPOSE DPDT 1A 12V |
2,750 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-H-24VRELAY GEN PURPOSE DPDT 1A 24V |
4,491 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-H-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
1,205 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 31.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
3,555 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-H-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
1,159 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

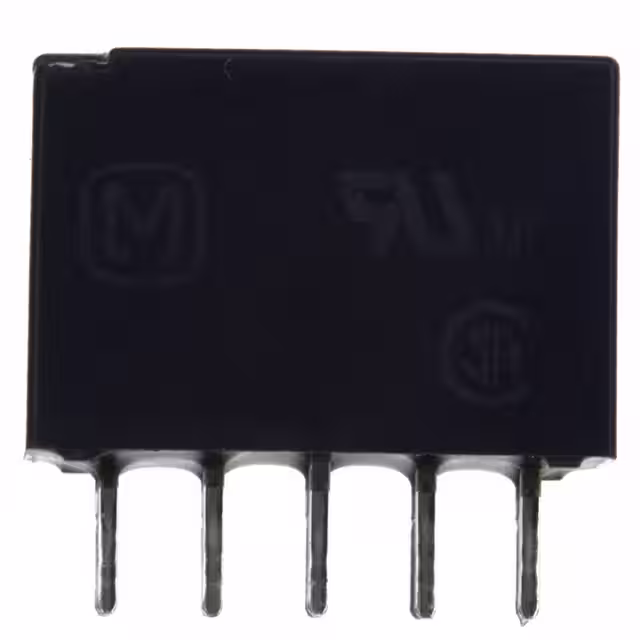

TN2-L-12VRELAY GEN PURPOSE DPDT 1A 12V |
2,129 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-12V-3RELAY GEN PURPOSE DPDT 1A 12V |
2,172 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-24VRELAY GEN PURPOSE DPDT 1A 24V |
3,471 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 6.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
1,840 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
1,786 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-L-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,410 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 20 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
1,693 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4.5 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,235 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 20 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
3,097 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
1,780 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
2,610 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.5 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
2,708 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-12VRELAY GEN PURPOSE DPDT 1A 12V |
4,714 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
2,446 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
1,090 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
