购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

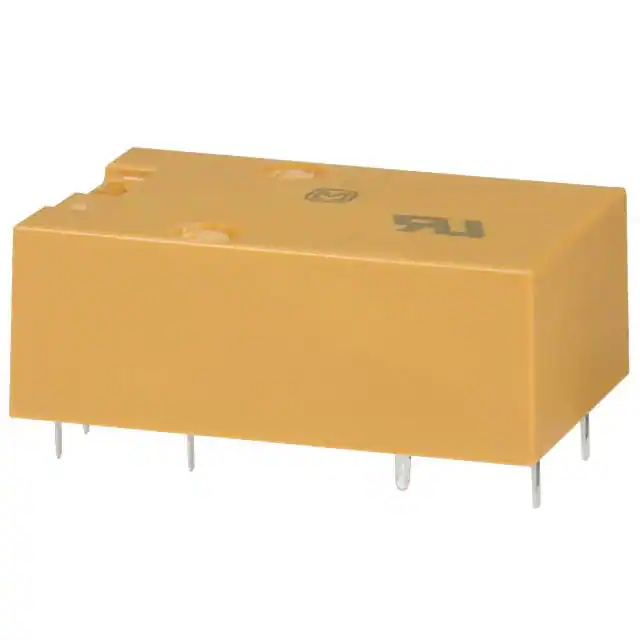

NF2EB-24VRELAY GEN PURPOSE DPDT 2A 24V |
1,919 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-24V-1RELAY GEN PURPOSE DPDT 2A 24V |
2,672 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-24V-ARELAY GEN PURPOSE DPDT 2A 24V |
2,606 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-48VRELAY GEN PURPOSE DPDT 2A 48V |
4,014 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 11.5 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-48V-ARELAY GEN PURPOSE DPDT 2A 48V |
3,251 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 11.5 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-5VRELAY GENERAL PURPOSE DPDT 2A 5V |
3,216 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 55.6 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF2EB-6VRELAY GENERAL PURPOSE DPDT 2A 6V |
1,326 |
|
规格书 |
NF | Box | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 220VAC, 220VDC - Max | - | 43.3 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
NF4EB-12VRELAY GEN PURPOSE 4PDT 2A 12V |
3,981 |
|
规格书 |
NF | Box | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 36.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-12V-1RELAY GEN PURPOSE 4PDT 2A 12V |
2,930 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 36.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-12V-ARELAY GEN PURPOSE 4PDT 2A 12V |
1,708 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 36.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-24VRELAY GEN PURPOSE 4PDT 2A 24V |
2,750 |
|
规格书 |
NF | Box | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-24V-1RELAY GEN PURPOSE 4PDT 2A 24V |
3,626 |
|
规格书 |
NF | Box | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-24V-ARELAY GEN PURPOSE 4PDT 2A 24V |
4,881 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-48VRELAY GEN PURPOSE 4PDT 2A 48V |
4,529 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 48VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 11.5 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-48V-ARELAY GEN PURPOSE 4PDT 2A 48V |
3,002 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 48VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 11.5 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-5VRELAY GENERAL PURPOSE 4PDT 2A 5V |
4,422 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 55.6 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-5V-1RELAY GENERAL PURPOSE 4PDT 2A 5V |
4,103 |
|
规格书 |
NF | Bag | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 55.6 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-5V-ARELAY GENERAL PURPOSE 4PDT 2A 5V |
2,253 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 55.6 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
NF4EB-6VRELAY GENERAL PURPOSE 4PDT 2A 6V |
1,954 |
|
规格书 |
NF | Tube | Obsolete | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 220VAC, 220VDC - Max | - | 43.3 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
NL6EBX-2M-DC24VRELAY GEN PURPOSE 6PDT 2A 24V |
2,014 |
|
规格书 |
NL | Tube | Obsolete | Through Hole | 24VDC | 6PDT (6 Form C) | 2 A | 125VAC, 30VDC - Max | 250VA, 60W | 30 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
