购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KHAE-17A16-120RELAY GEN PURPOSE 4PDT 1A 120V |
4,480 |
|
规格书 |
KHA | Bulk | Obsolete | Through Hole | 120VAC | 4PDT (4 Form C) | 1 A | 240VAC - Max | 240VA | 10 mA | Non Latching | - | PC Pin | - | - | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | - | General Purpose | - | - |
|
|
JMGACD-12MRELAY GEN PURPOSE DPDT 1A 12V |
4,203 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
JMGAC-26PRELAY GEN PURPOSE DPDT 1A 26.5V |
2,574 |
|
- |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
|

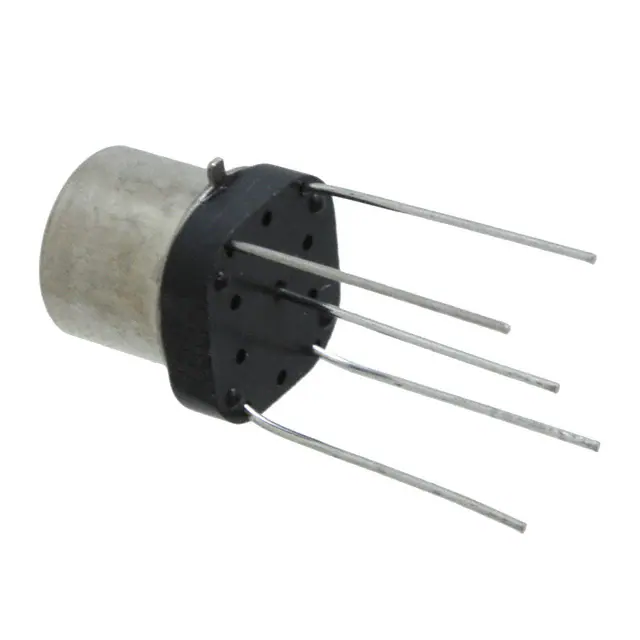

J1MACD-26XMSRELAY GEN PURPOSE SPDT 1A 26.5V |
3,262 |
|
规格书 |
1MAD, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/23 |
|
|
JMGAC-6MWRELAY GENERAL PURPOSE DPDT 1A 6V |
3,587 |
|
- |
MGA, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 61.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
|
|
JMGAC-26LWRELAY GEN PURPOSE DPDT 1A 26.5V |
3,150 |
|
- |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
|
|
MGSPD-5WRELAY GENERAL PURPOSE DPDT 1A 5V |
3,989 |
|
- |
MGS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | - | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617572-0RELAY GENERAL PURPOSE DPDT 1A 6V |
1,498 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
|
JMSW-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
2,522 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
JMSC-18XLRELAY GEN PURPOSE DPDT 1A 18V |
3,119 |
|
- |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
3-1617543-8RELAY GENERAL PURPOSE DPDT 1A 6V |
3,026 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3-1617543-9RELAY GENERAL PURPOSE DPDT 1A 6V |
4,775 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
4-1617543-1RELAY GENERAL PURPOSE DPDT 1A 9V |
1,797 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 4.85 VDC | 0.55 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
7-1617543-5RELAY GEN PURPOSE DPDT 1A 18V |
1,662 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617351-3RELAY GEN PURPOSE DPDT 1A 18V |
1,919 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617131-6RELAY GEN PURPOSE DPDT 1A 36V |
3,608 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 36VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 5.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 20 VDC | 1.8 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
8-1617543-0RELAY GENERAL PURPOSE DPDT 1A 5V |
3,283 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
8-1617543-2RELAY GENERAL PURPOSE DPDT 1A 6V |
4,594 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2964461RELAY GEN PURP SPST 500MA 120V |
4,120 |
|
规格书 |
EMG 10-REL | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 500 mA | 30VAC, 36VDC - Max | - | 5 mA | Non Latching | Socket Included, Varistor | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J1MAP-12XLRELAY GEN PURPOSE SPDT 1A 12V |
1,819 |
|
- |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
