购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMACD-5XMRELAY GENERAL PURPOSE DPDT 1A 5V |
3,522 |
|
- |
MAC | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617542-2RELAY GENERAL PURPOSE DPDT 1A 6V |
1,060 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 61.2 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617568-7RELAY GENERAL PURPOSE DPDT 1A 5V |
1,734 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
JMGSPD-9MRELAY GENERAL PURPOSE DPDT 1A 9V |
4,490 |
|
规格书 |
MGSD, CII | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 22.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 4.85 VDC | 0.55 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/42 |
|
|
HM1-26BRELAY GEN PURPOSE DPDT 1A 26.5V |
4,250 |
|
- |
HM, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMSCD-12XMRELAY GEN PURPOSE DPDT 1A 12V |
2,782 |
|
- |
MSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
|
1617149-6RELAY GEN PURPOSE DPDT 1A 26.5V |
4,157 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/41 |
|

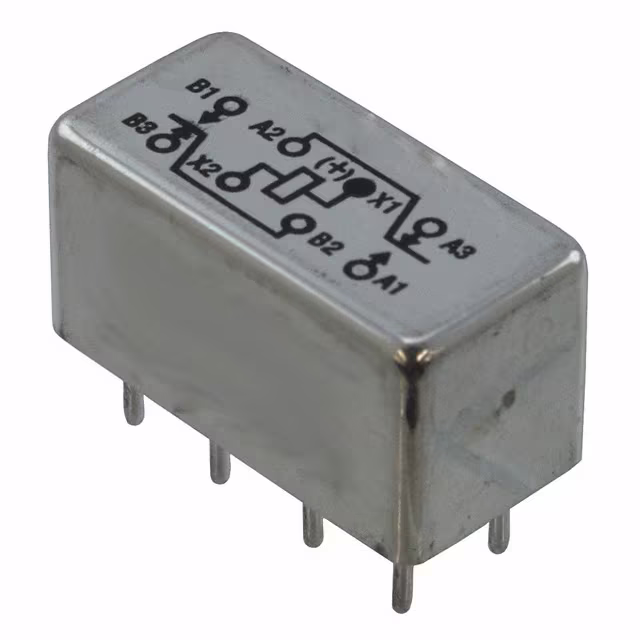

HFW1201G01PRELAY GEN PURPOSE DPDT 2A 12V |
3,440 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
|
4-1617533-6RELAY GENERAL PURPOSE DPDT 2A 6V |
3,729 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 150 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMACD-18XLSRELAY GEN PURPOSE DPDT 1A 18V |
3,325 |
|
- |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMGSCD-12MRELAY GEN PURPOSE DPDT 1A 12V |
4,439 |
|
- |
MGSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/42 |
|
|
JMGSCDD-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
3,222 |
|
- |
MGSDD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.7 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/43 |
|
|
KHAU-17D16-110RELAY GEN PURPOSE 4PDT 1A 110V |
1,794 |
|
规格书 |
KHA | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 1 A | 240VAC - Max | 240VA | 8.2 mA | Non Latching | - | Plug In | - | Class B | 82.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1106K12MRELAY GEN PURPOSE DPDT 2A 26.5V |
2,303 |
|
- |
HFW, CII | Bulk | Active | - | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1130L01MRELAY GENERAL PURPOSE DPDT 2A 5V |
1,135 |
|
- |
HFW, CII | Bulk | Active | Chassis Mount | 5VDC | DPDT (2 Form C) | 2 A | - | - | 185.2 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1131G01MRELAY GEN PURPOSE DPDT 2A 12V |
1,766 |
|
- |
HFW, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
3-1617536-2RELAY GENERAL PURPOSE DPDT 2A 6V |
4,424 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 150 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1-1617150-4RELAY GENERAL PURPOSE DPDT 1A 5V |
3,824 |
|
规格书 |
MGSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/42 |
|
|
JMGACD-5LWRELAY GENERAL PURPOSE DPDT 1A 5V |
4,848 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
HFW1201K46PRELAY GEN PURPOSE DPDT 2A 26.5V |
3,766 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
