购物车射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

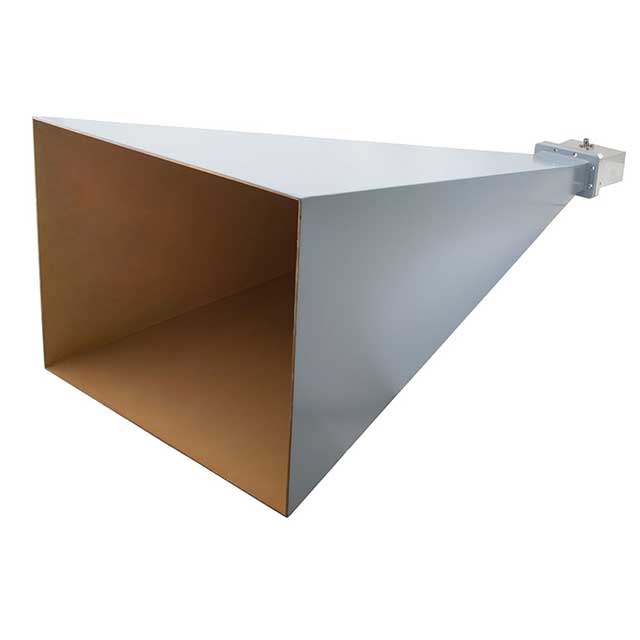

PEWAN229-20SFWR229 GAIN HRN 3.3-4.9GHZ 20DBI |
2,309 |
|
规格书 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 25.189" (639.80mm) | - |
|
PEWAN042-20ELKFWR42 GAIN HRN 18-26.5GHZ 20DBI |
3,538 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 1.524" (38.70mm) | General Purpose |
|
|
PE9862B-10-CPRGWR-229 Waveguide Standard Gain H |
1,763 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 5.250" (133.35mm) | General Purpose |
|
|
PE1WAN051-10WR-51 Waveguide Antenna, 15 GHz |
1,203 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 6.700" (170.18mm) | General Purpose |
|
|
PE1WAN034-15WR-34 Waveguide Antenna, 22 GHz |
3,728 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 2.756" (70.00mm) | General Purpose |
|
|
PE9860B/SF-10WR-159 Standard Gain Horn Antenn |
2,028 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 6.490" (164.85mm) | General Purpose |
|
|
PE1WAN051-15WR-51 Waveguide Antenna, 15 GHz |
1,959 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 6.700" (170.18mm) | General Purpose |
|
|
PEWAN1011WR-15 Waveguide Standard Gain Ho |
2,711 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | 1.15 | - | 21dBi | - | - | - | - | - | - | Waveguide Mount | 0.650" (16.51mm) | General Purpose |
|
|
PE9850/2F-10WR-28 Waveguide Standard Gain Ho |
2,678 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.25 | - | 10dBi | - | - | 2.92mm Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE1WAN051-20WR-51 Waveguide Antenna, 15 GHz |
4,260 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 6.700" (170.18mm) | General Purpose |
|
|
PEWAN1013WR-12 Waveguide Standard Gain Ho |
4,264 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 75GHz | 60GHz ~ 90GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
|
|
PEWAN1005WR-19 Waveguide Standard Gain Ho |
3,540 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9861B-20-CPRGWR-187 Waveguide Standard Gain H |
3,911 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 14.930" (379.22mm) | General Purpose |
|
|
PE1WAN034-20WR-34 Waveguide Antenna, 22 GHz |
3,935 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 2.756" (70.00mm) | General Purpose |
|
|
PE1WAN112-15WR-112 Waveguide Standard Gain H |
2,942 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Bracket Mount | 4.900" (124.46mm) | General Purpose |
|
|
PEWAN510-10WR-510 Waveguide Standard Gain H |
1,904 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 1.825GHz | 1.45GHz ~ 2.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 9.650" (245.11mm) | General Purpose |
|
|
PE9858B/NF-15WR-112 Standard Gain Horn Antenn |
3,697 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 6.350" (161.29mm) | General Purpose |
|
|
PE1WAN034-10KFWR-34 Standard Gain Horn with 10 |
3,774 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.23 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Bracket Mount | 2.756" (70.00mm) | General Purpose |
|
|
PE9863B-10-CPRGWR-284 Waveguide Standard Gain H |
2,781 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 7.260" (184.40mm) | General Purpose |
|
|
PE1WAN051-10SFWR-51 Standard Gain Horn with 10 |
1,580 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Bracket Mount | 6.700" (170.18mm) | General Purpose |
