购物车射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1026WR-6 Waveguide Standard Gain Hor |
1,379 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 140GHz | 110GHz ~ 170GHz | Horn | 1 | - | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.180" (29.97mm) | General Purpose |
|
|
PEWAN090-15ELSFWR42 GAIN HRN 8.2-12.4GHZ 15DBI |
2,446 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.755" (44.58mm) | General Purpose |
|
|
PEWAN1131WR-28 Waveguide Probe Antenna Op |
3,090 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | - | - | 6.5dBi | - | - | - | IP55 | - | - | Waveguide Mount | 0.006" (0.16mm) | General Purpose |
|
PEWAN051-20WR51 GAIN HORN 15-22GHZ 20DBI |
3,116 |
|
规格书 |
- | Bulk | Active | Waveguide | Ku-K Band (12GHz ~ 27GHz) | 18.3GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEANOM1141C-band Omni Antenna 4.4 GHz to 5 |
1,309 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 4.7GHz | 4.4GHz ~ 5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 10 W | - | N Type Male | IP65 | - | - | Connector Mount | 7.180" (182.37mm) | General Purpose |
|

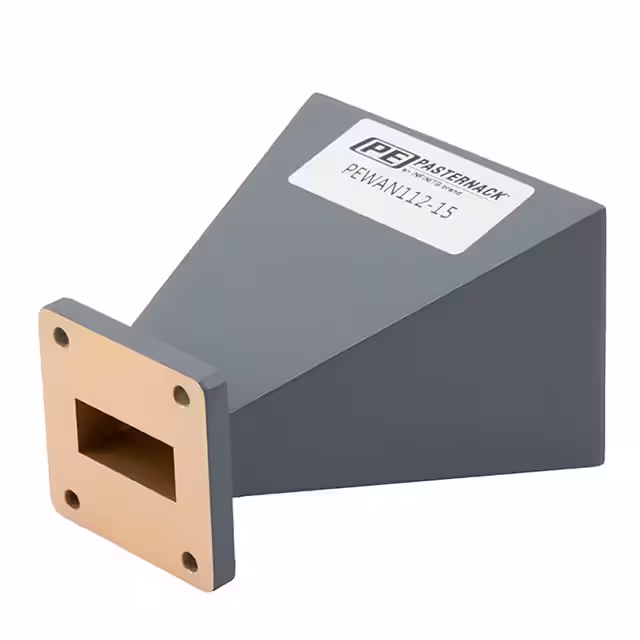

PEWAN112-15WR112 GAIN HORN 7.05-11GHZ 15DBI |
4,198 |
|
规格书 |
- | Bulk | Active | Waveguide | H Band (6GHz ~ 8GHz) | 9.03GHz | 7.05GHz ~ 11GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN102-10SMWR102 GAIN HRN 7-11GHZ 10DBI |
4,062 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN102-10NFWR102 GAIN HRN 7-11GHZ 10DBI |
2,718 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN102-10NMWR102 GAIN HRN 7-11GHZ 10DBI |
4,406 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN102-10SFWR102 GAIN HRN 7-11GHZ 10DBI |
4,874 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN090-10ELNFWR42 GAIN HRN 8.2-12.4GHZ 10DBI |
2,153 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.630" (41.40mm) | General Purpose |
|
|
PEWAN090-10SFWR42 GAIN HRN 8.2-12.4GHZ 10DBI |
3,145 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.630" (41.40mm) | General Purpose |
|
|
PEWAN075-10SFWR75 GAIN HRN 10-15GHZ 10DBI |
4,266 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.508" (38.30mm) | General Purpose |
|
|
PEWAN075-10ELNFWR75 GAIN HRN 10-15GHZ 10DBI |
2,895 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.508" (38.30mm) | General Purpose |
|
|
PEWAN075-10NFWR75 GAIN HRN 10-15GHZ 10DBI |
4,677 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 1.508" (38.30mm) | - |
|
|
PEWAN062-10ELSFWR62 GAIN HRN 12.4-18GHZ 10DBI |
1,702 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN062-10ELNFWR62 GAIN HRN 12.4-18GHZ 10DBI |
1,477 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN062-10NMWR62 GAIN HRN 12.4-18GHZ 10DBI |
1,282 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN062-10SFWR62 GAIN HRN 12.4-18GHZ 10DBI |
4,976 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN090-15NFWR42 GAIN HRN 8.2-12.4GHZ 15DBI |
4,038 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.755" (44.58mm) | General Purpose |
