购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

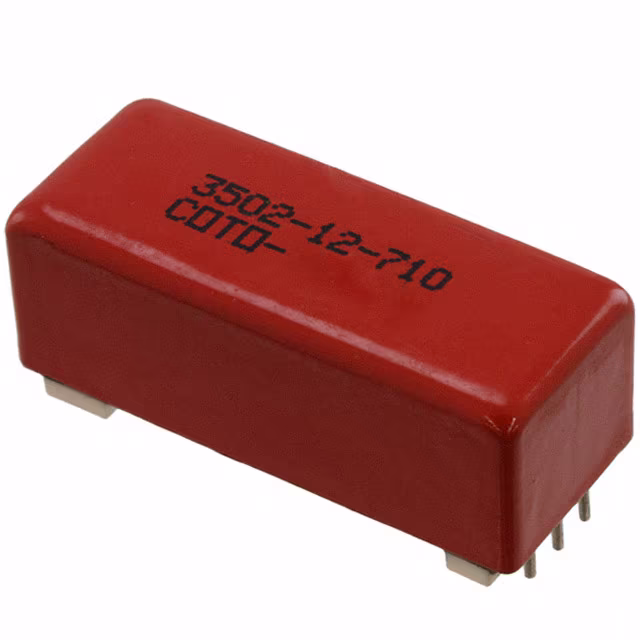

3502-12-710RELAY REED DPST 500MA 12V Coto Technology |
270 |
|
规格书 |
3500 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|

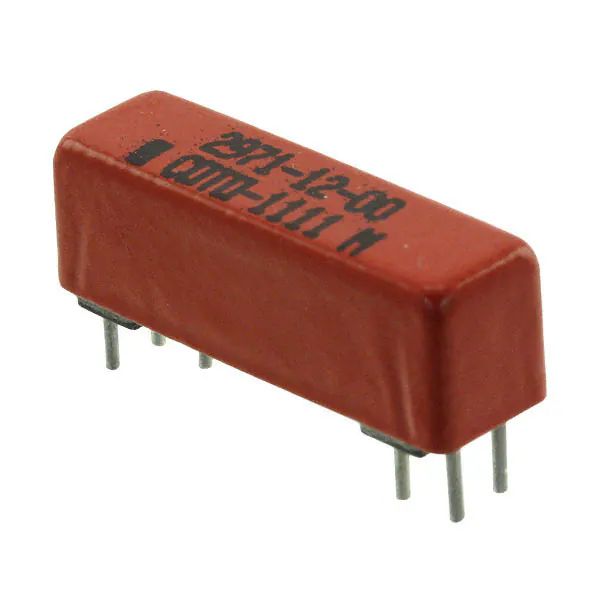

2971-12-00RELAY REED SPDT 250MA 12V Coto Technology |
547 |
|
规格书 |
2970 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -40°C ~ 125°C | - |
|
7142-05-1010RELAY REED DPDT 250MA 5V Coto Technology |
188 |
|
规格书 |
7000 | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 77 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
3541-05-811RELAY REED DPST 500MA 5V Coto Technology |
407 |
|
规格书 |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8L01-12-001RELAY REED SPST 500MA 12V Coto Technology |
9,924 |
|
规格书 |
8L | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9007-12-01RELAY REED SPST 500MA 12V Coto Technology |
3,362 |
|
规格书 |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9007-24-01RELAY REED SPST 500MA 24V Coto Technology |
1,281 |
|
规格书 |
9007, Spartan | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
8L02-24-00RELAY REED DPST 500MA 24V Coto Technology |
2,099 |
|
规格书 |
8L | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-05-101RELAY REED SPST 500MA 5V Coto Technology |
366 |
|
规格书 |
8L | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-24-011RELAY REED SPST 500MA 24V Coto Technology |
925 |
|
规格书 |
8L | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
