购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1320-0185RELAY REED Coto Technology |
2,887 |
|
规格书 |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

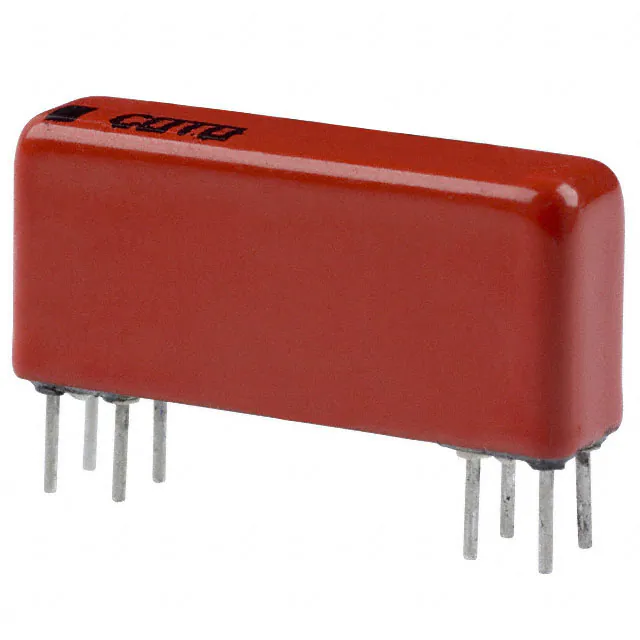

2342-12-000RELAY REED DPDT 250MA 12V Coto Technology |
703 |
|
规格书 |
2300 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
|

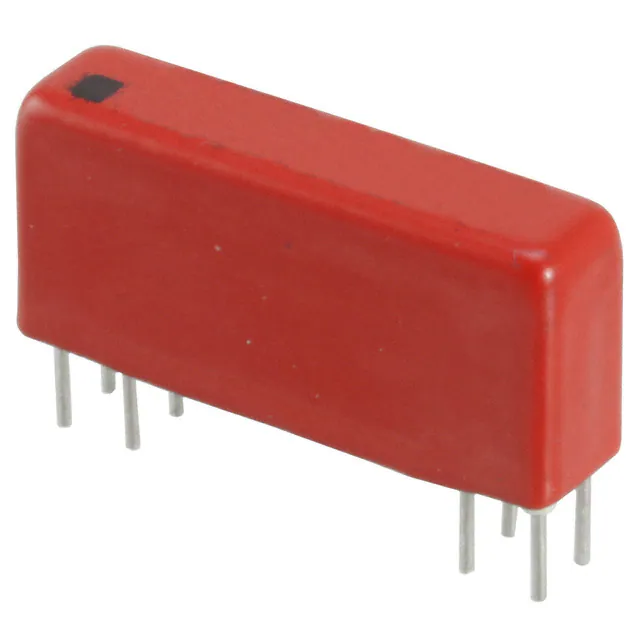

2372-05-000RELAY REED DPDT 250MA 5V Coto Technology |
249 |
|
规格书 |
2370 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C | - |
|

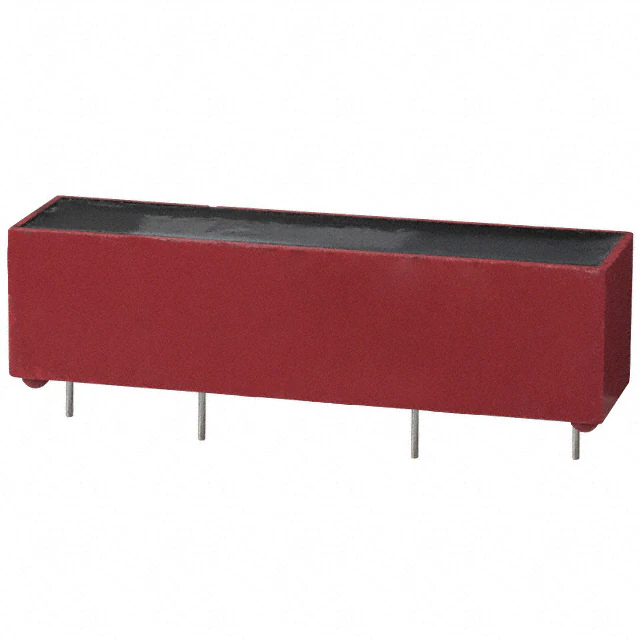

5501-24-1RELAY REED SPST 3A 24V Coto Technology |
2,046 |
|
规格书 |
5500 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|

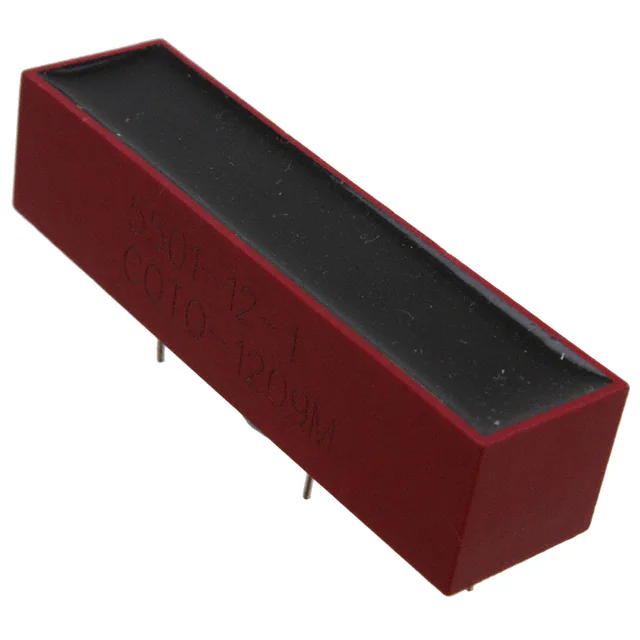

5501-12-1RELAY REED SPST 3A 12V Coto Technology |
2,044 |
|
规格书 |
5500 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
5501-05-1RELAY REED SPST 3A 5V Coto Technology |
619 |
|
规格书 |
5500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 125 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
5503-05-1RELAY REED SPST 3A 5V Coto Technology |
135 |
|
规格书 |
5500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 3500VAC, 3500VDC - Max | 125 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
5502-12-1RELAY REED SPST 3A 12V Coto Technology |
210 |
|
规格书 |
5500 | Tube | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
9007-24-00RELAY REED SPST 500MA 24V Coto Technology |
6,167 |
|
规格书 |
9007, Spartan | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9007-12-40RELAY REED SPST 500MA 12V Coto Technology |
508 |
|
规格书 |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
