购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT70510PURELAY REED SPST-NO 2A 5V |
2,510 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510SURELAY REED SPST-NO 2A 5V |
3,676 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510TURELAY REED SPST-NO 2A 5V |
1,849 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71210PURELAY REED SPST-NO 2A 12V |
1,218 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71210SURELAY REED SPST-NO 2A 12V |
3,544 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71210TURELAY REED SPST-NO 2A 12V |
1,065 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72410PURELAY REED SPST-NO 2A 24V |
1,693 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72410TURELAY REED SPST-NO 2A 24V |
4,269 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT70510FRELAY REED SPST-NC 2A 5V |
3,270 |
|
规格书 |
DB | Tray | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT70510PRELAY REED SPST-NC 2A 5V |
2,544 |
|
规格书 |
DB | Tray | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT70510TRELAY REED HV 10KV N/C 5VDC PCB |
1,908 |
|
规格书 |
D | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 131.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71210TRELAY REED HV 10KV N/C 12VDC PCB |
4,910 |
|
规格书 |
D | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72410TRELAY REED HV 10KV N/C 24VDC PCB |
1,827 |
|
规格书 |
D | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|

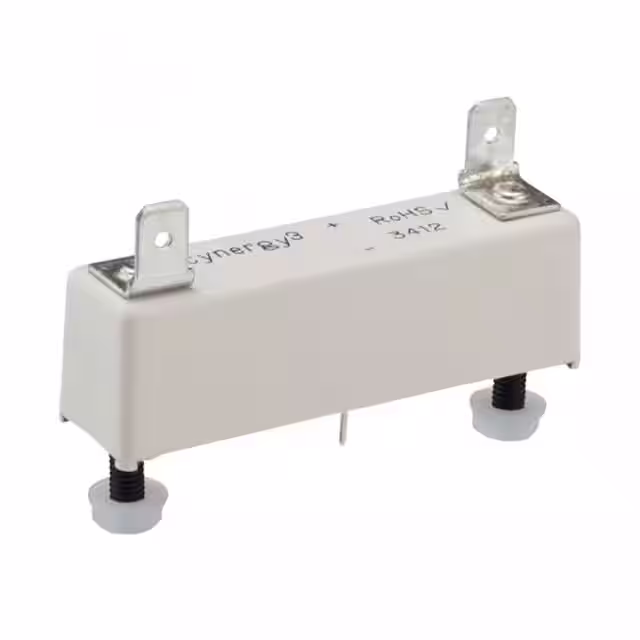

DBT70510SRELAY REED SPST-NC 2A 5V |
1,405 |
|
规格书 |
DB | Tray | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510FURELAY REED SPST-NO 2A 5V |
2,264 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
V23100V6002A112RELAY REED DPST 350MA 12V |
4,542 |
|
- |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 350 mA | 24VDC - Nom | 10.9 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
|
DBR71210FURR HV N/C 10KV 12V COIL FLYING L |
1,499 |
|
- |
D | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR70510PURR HV N/C 10KV 5V COIL PANEL MOU |
4,869 |
|
- |
D | Bulk | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 131.6 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR72410SURR HV N/C 10KV 24V COIL SPADE UL |
2,849 |
|
- |
D | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71210SURR HV N/C 10KV 12V COIL SPADE UL |
2,636 |
|
- |
D | Bulk | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
