购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT70510-HRRELAY REED SPST-NO 2A 5V |
3,908 |
|
规格书 |
D-HR | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT72475URELAY REED SPST-NC 7.5KV 24V |
3,352 |
|
规格书 |
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71275-HRRELAY REED 7.5KV 12V SPST-NC |
4,037 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72475-HRRELAY REED 7.5KV 24V SPST-NC |
1,130 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
V23100V6003A112RELAY REED DPST 350MA 24V |
4,538 |
|
- |
V23100-V6, AXICOM | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 350 mA | 24VDC - Nom | 6.2 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
|
DAT72475TURELAY REED SPST-NO 7.5KV 24V |
2,303 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70575F-HRRELAY REED 7.5KV 5V SPST-NO |
4,898 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72475PURELAY REED SPST-NO 7.5KV 24V |
4,585 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71275PURELAY REED SPST-NO 7.5KV 12V |
3,229 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70575TURELAY REED SPST-NO 7.5KV 5V |
1,391 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT72475FURELAY REED SPST-NO 7.5KV 24V |
4,269 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71275TURELAY REED SPST-NO 7.5KV 12V |
4,172 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72475F-HRRELAY REED 7.5KV 24V SPST-NO |
3,055 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72475SURELAY REED SPST-NO 7.5KV 24V |
1,757 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAR70510TRELAY REED HV 10KV N/O 5VDC PCB |
2,623 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DAR71210TRELAY REED HV 10KV N/O 12VDC PCB |
2,843 |
|
规格书 |
D | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72410TRELAY REED HV 10KV N/O 24VDC PCB |
1,349 |
|
规格书 |
D | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR70510SRELAY REED SPST-NO 3A 5V |
1,215 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

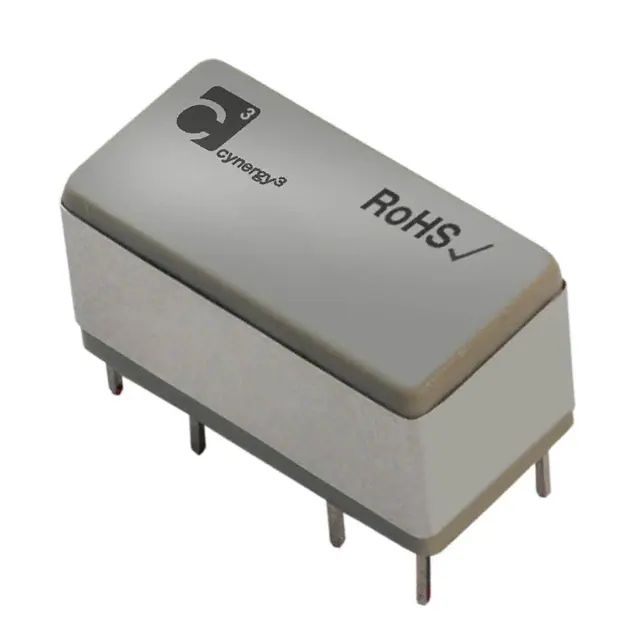

TBR212SMRELAY REED SPST-NC 500MA 12V |
1,027 |
|
- |
2 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 300VAC, 300VDC - Max | 13.3 mA | Non Latching | - | PC Pin | - | 8 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 100°C | Rhodium (Rh), Ruthenium (Ru) |
|
|
DAT70510TRELAY REED HV 10KV N/O 5VDC PCB |
4,493 |
|
规格书 |
D | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 178.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
