购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OSIP-1A05200V/0.5A SIP REED RELAY, 1 FORM |
286 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
OSIP-1A05-D200V/0.5A SIP REED RELAY, 1 FORM |
398 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
JWD-171-5RELAY REED SPST 500MA 24V |
4,412 |
|
规格书 |
JWD | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
3570-1421-122RELAY REED SIP DPST .5A 12V W/EM |
166 |
|
规格书 |
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
MSIP-2A05200V/0.5A MINI SIZE REED RELAY, |
408 |
|
规格书 |
MSIP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 13 mA | Non Latching | - | PC Pin | - | 4 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
V23100V4515A010RELAY REED SPST 500MA 15V |
4,106 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
VSIP-1A05I150V/0.5A, THE SMALLEST HIGH POW |
495 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05D150V/0.5A, THE SMALLEST SIP RELA |
485 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05DI150V/0.5A, THE SMALLEST HIGH POW |
485 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
VSIP-1A05150V/0.5A, THE SMALLEST SIP RELA |
494 |
|
规格书 |
XSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
BFS-1A05C250V/1A REED RELAY, 1 FORM A, 5V |
103 |
|
规格书 |
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | Coaxial Shield | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | - |
|
|

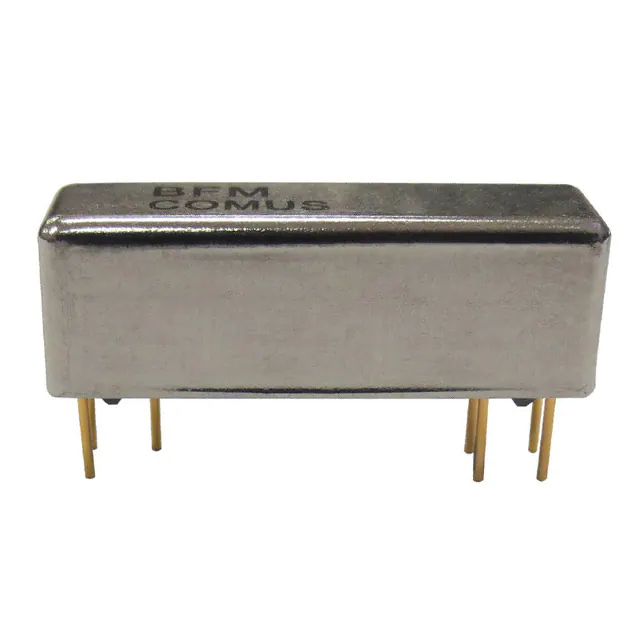

BFM-1A12E350V/1.5A REED RELAY, 1 FORM A, |
102 |
|
规格书 |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | - |
|
|
JWD-171-12RELAY REED SPST 500MA 5V |
2,296 |
|
规格书 |
JWD | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-19RELAY REED SPST 500MA 12V |
2,162 |
|
规格书 |
JWD | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
1-1393771-2JWD-171-19=REED RELAYS |
1,572 |
|
规格书 |
JWD | Box | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1C-12CWRELAY REED SPDT .25A 12V |
107 |
|
规格书 |
BFM-CW | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4312B010RELAY REED DPST 500MA 12V |
2,922 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1C12200V/0.5A REED RELAY, 1 FORM C, |
102 |
|
规格书 |
BFS | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
|
BFM-1C12200V/1.0A REED RELAY, 1 FORM C, |
102 |
|
规格书 |
BFM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
7101-24-1000RELAY REED SPST 500MA 24V |
131 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
