购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBT72410SRELAY REED SPST-NC 2A 24V |
2,267 |
|
规格书 |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
3570-1210-123RELAY REED DIP SPST .5A 12V W/DI |
309 |
|
规格书 |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
3570-1210-053RELAY REED DIP SPST .5A 5V W/DIO |
307 |
|
规格书 |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
3570-1210-243RELAY REED DIP SPST .5A 24V W/DI |
230 |
|
规格书 |
3570 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
HE751A1200RELAY REED SPST 500MA 12V |
386 |
|
规格书 |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

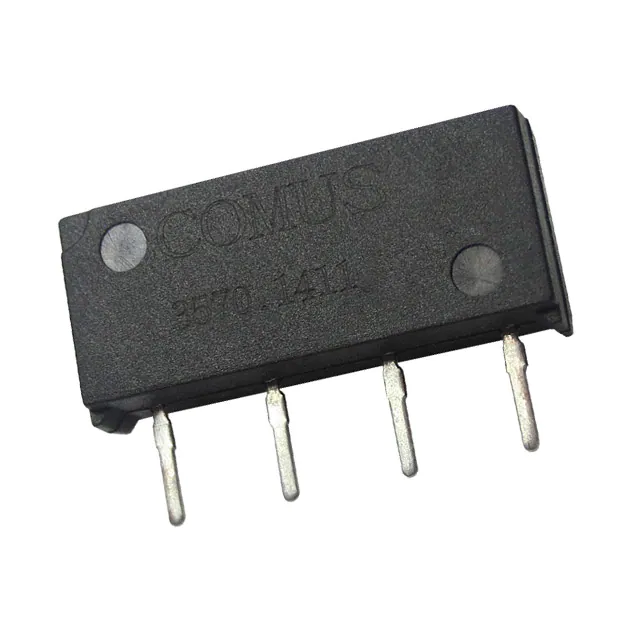

3570-1411-053RELAY REED SIP SPST .5A 5V W/DIO |
194 |
|
规格书 |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
3563-1231-121RELAY REED DIP SPDT .4A 12V |
691 |
|
规格书 |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
8L01-24-001RELAY REED SPST 500MA 24V |
238 |
|
规格书 |
8L | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9094-12-01RELAY REED SPST 500MA 12V |
968 |
|
规格书 |
9094 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
9091-05-10RELAY REED SPST 500MA 5V |
5,975 |
|
规格书 |
9091 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
3563-1231-124RELAY REED DIP SPDT .4A 12V W/DI |
105 |
|
规格书 |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9094-12-00RELAY REED SPST 500MA 12V |
1,350 |
|
规格书 |
9094 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
8L41-24-101RELAY REED SPDT 250MA 24V |
317 |
|
规格书 |
8L | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
8L61-12-101RELAY REED SPDT 250MA 12V |
453 |
|
规格书 |
8L | Bulk | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
HE721E0510RELAY REED SPDT 250MA 5V |
3,900 |
|
规格书 |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
9401-05-00TRRELAY REED SPST 500MA 5V |
380 |
|
规格书 |
9400 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | Gull Wing | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
V23100V4005ARELAY REED SPST 500MA 5V |
224 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
9201-12-20TRRELAY REED SPST 500MA 12V |
3,717 |
|
规格书 |
9200 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | J Lead | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
9201-05-20TRRELAY REED SPST 500MA 5V |
2,903 |
|
规格书 |
9200 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | J Lead | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
8L41-12-111RELAY REED SPDT 250MA 12V |
1,017 |
|
规格书 |
8L | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
