| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWTH1D24LD-30WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1,456 |
|
规格书 |
UWTH1D_LD-30W(F/H)R3 (30W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 1.25A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, cCSAus, CE, CSA, EN, IEC, UKCA | 62368-1 |
|
|
VCF4812QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 Mornsun America, LLC |
4,719 |
|
规格书 |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|

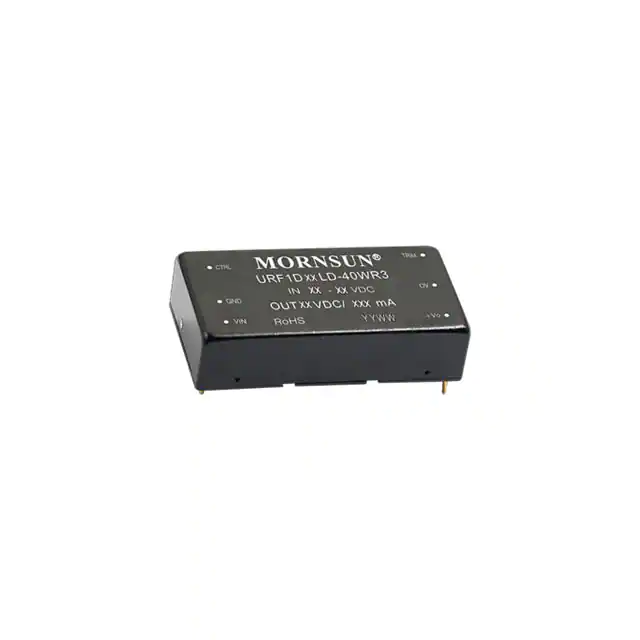

URF1D03LD-40WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
4,476 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 10A | 33 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D05LD-40WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1,978 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 8A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D12LD-40WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
3,463 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 3.333A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D48LD-40WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
2,379 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 48V | - | - | - | 833mA | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | 62368-1 |
|
URF1D48LD-40WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
4,507 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 48V | - | - | - | 833mA | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D15LD-40WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
2,401 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 15V | - | - | - | 2.667A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D03LD-40WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1,481 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 10A | 33 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
URF1D05LD-40WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
3,205 |
|
规格书 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 8A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CE | 62368-1 |
