购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

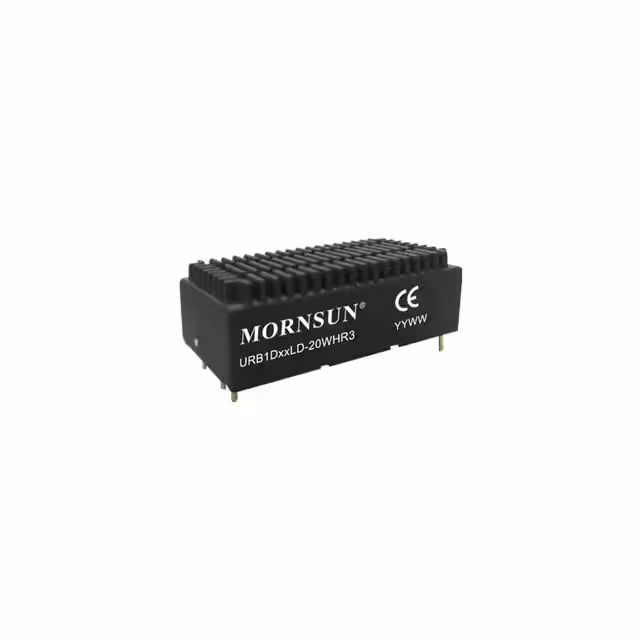

URB1D05LD-20WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
3,960 |
|
规格书 |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 5V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | 60950-1 |
|
|
URB1D24LD-20WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
2,427 |
|
规格书 |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 24V | - | - | - | 833mA | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | 60950-1 |
|

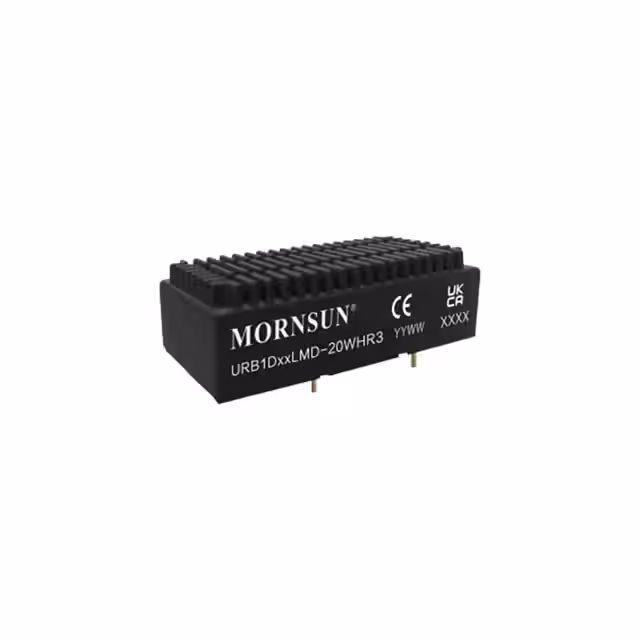

URB1D24LMD-20WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
3,255 |
|
规格书 |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
KUB6048EB-10ANON-ISOLATED MODULE DC DC CONVER Mornsun America, LLC |
3,000 |
|
规格书 |
KUBXX48EB(F)-10A (480W) | Eighth Brick | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 14.5V | 90V | 48V | - | - | - | 10A | 480 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 97.5% | - | - | Through Hole | Eighth Brick | - | - | - |
|
|
KUB6048EBF-10ANON-ISOLATED MODULE DC DC CONVER Mornsun America, LLC |
4,370 |
|
规格书 |
KUBXX48EB(F)-10A (480W) | Eighth Brick | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 14.5V | 90V | 48V | - | - | - | 10A | 480 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 97.5% | - | - | Through Hole | Eighth Brick | - | - | - |
|
|
VRB2405LD-50WDC DC CONVERTER 1 OUTPUT 50W 5V Mornsun America, LLC |
2,009 |
|
- |
VRB_LD-50W (50W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | 60950-1 |
|
|
VRF2428DD-50WR4ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1,180 |
|
规格书 |
VRF24_DD-50WR4 (50W) | 7-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 1.786A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 |
|
|
VRF2405DD-50WR4ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1,350 |
|
规格书 |
VRF24_DD-50WR4 (50W) | 7-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
|
|
VRF2412DD-50WR4ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
2,210 |
|
规格书 |
VRF24_DD-50WR4 (50W) | 7-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.167A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
|
|
VRF2424DD-50WR4ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
2,002 |
|
规格书 |
VRF24_DD-50WR4 (50W) | 7-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 2.083A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
