购物车交流直流转换器（AC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 应用 | 特性 | 工作温度 | 效率 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

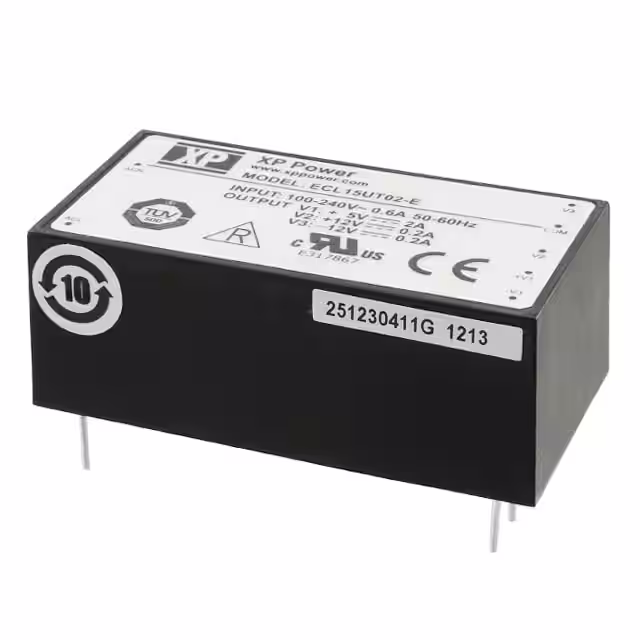

ECL15UT02-EAC/DC CONVERTER 5V +/-12V 15W XP Power |
1,169 |
|
规格书 |
ECL (15W) | 7-DIP Module | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | 2A, 200mA, 200mA | 15 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 2.56" L x 1.31" W x 0.96" H (65.0mm x 33.3mm x 24.4mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
ECL30UD02-PAC/DC CONVERTER +/-15V 30W XP Power |
3,667 |
|
规格书 |
ECL (30W) | 5-DIP Module | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | - | - | - | 1A, 1A | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 83% | Through Hole | 2.96" L x 1.36" W x 1.05" H (75.2mm x 34.6mm x 26.7mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
ECL30UD03-EAC/DC CONVERTER 5V 12V 30W XP Power |
3,474 |
|
规格书 |
ECL (30W) | 6-DIP Module | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | - | - | - | 3A, 1.3A | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
|
ECL30UD01-EAC/DC CONVERTER +/-12V 30W XP Power |
2,135 |
|
规格书 |
ECL (30W) | 5-DIP Module | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | - | - | - | 1.3A, 1.3A | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 84% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
ECE40US05AC/DC CONVERTER 5V 40W XP Power |
3,705 |
|
规格书 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 8A | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 77% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
|
ECE40US09AC/DC CONVERTER 9V 40W XP Power |
3,094 |
|
规格书 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | 4.44A | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 80% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
|
ECE40US48AC/DC CONVERTER 48V 40W XP Power |
1,969 |
|
规格书 |
ECE (40W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | 830mA | 40 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 86% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, UL | 62368-1 |
|
|
ECL30UT03-EAC/DC CONVERTER 5V +/-15V 30W XP Power |
4,038 |
|
规格书 |
ECL (30W) | 7-DIP Module | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|

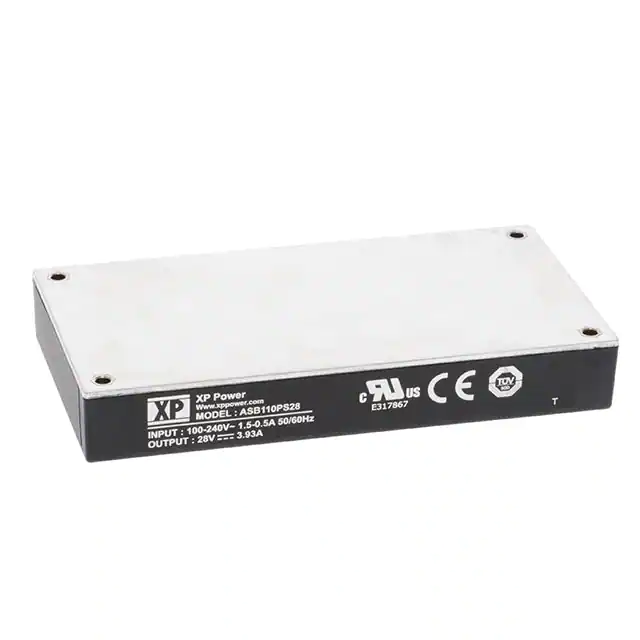

ASB110PS28AC/DC CONVERTER 28V 110W XP Power |
2,352 |
|
规格书 |
ASB110 (110W) | 5-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | 3.93A | 110 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.67" H (116.8mm x 61.0mm x 17.0mm) | CB, CE, cURus, TUVgs | 62368-1 |
|
EML30US05-EAC/DC CONVERTER 5V 30W XP Power |
2,004 |
|
规格书 |
EML30 (30W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | 6A | 30 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 75% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CB, TUV, UL | 60601-1 |
