购物车交流直流转换器（AC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 应用 | 特性 | 工作温度 | 效率 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASB110PS15AC/DC CONVERTER 15V 110W XP Power |
137 |
|
规格书 |
ASB110 (110W) | 5-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | 7.33A | 110 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 4.60" L x 2.40" W x 0.67" H (116.8mm x 61.0mm x 17.0mm) | CB, CE, cURus, TUVgs | 62368-1 |
|

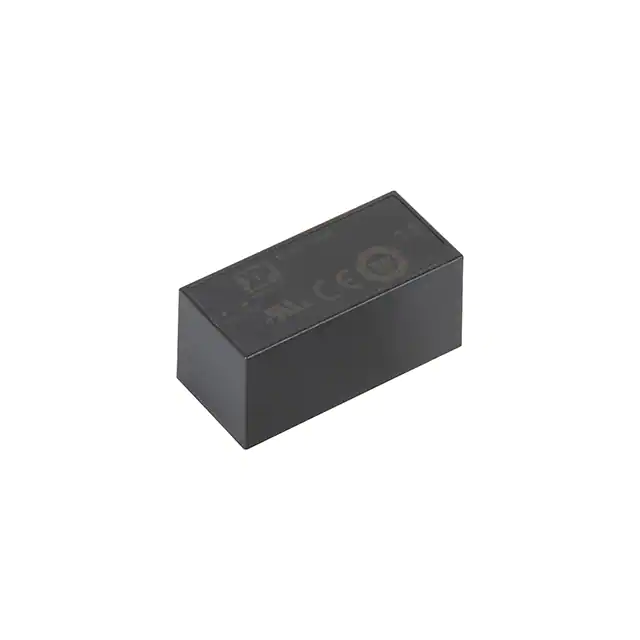

VCE03US03AC/DC CONVERTER 3.3V 3W XP Power |
148 |
|
规格书 |
VCE03 (3W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 3.3V | - | - | - | 910mA | 3 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 70°C (With Derating) | 80% | Through Hole | 1.60" L x 0.75" W x 0.75" H (40.6mm x 19.1mm x 19.1mm) | CB, TUV, UL | 62368-1 |
|
EHL05US055W PCB MOUNT ENCAPSULATED 85 TO XP Power |
140 |
|
规格书 |
EHL05 (5W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 528 VAC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 80°C (With Derating) | 80% | Through Hole | 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm) | CE, cURus, TUV, UKCA | 60335-1; 62368-1 |
|
EML30US12-EAC/DC CONVERTER 12V 30W XP Power |
190 |
|
规格书 |
EML30 (30W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | 2.5A | 30 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 80% | Through Hole | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) | CB, TUV, UL | 60601-1 |
|
|
ASB160PS36AC-DC POWER SUPPLY WITH BUILT-IN XP Power |
4,467 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | 4.44A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS54AC-DC POWER SUPPLY WITH BUILT-IN XP Power |
3,967 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 54V | - | - | - | 2.96A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS15-HKAC-DC POWER SUPPLY WITH BUILT-IN XP Power |
4,960 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 10.66A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS36-HKAC-DC POWER SUPPLY WITH BUILT-IN XP Power |
2,153 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | 4.44A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS54-HKAC-DC POWER SUPPLY WITH BUILT-IN XP Power |
3,826 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 54V | - | - | - | 2.96A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS48-HKAC-DC POWER SUPPLY WITH BUILT-IN XP Power |
3,673 |
|
规格书 |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | 3.33A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
