购物车计数器、计时器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD400400COUNTER LED 4 CHAR 50-250V CHASS |
3,359 |
|
规格书 |
LD | Box | Active | Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 4 | LED - Red Characters | 4.000" (101.00mm) | Voltage | - | 50 ~ 250VAC | External | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LD4T06P0RELAY TIME DELAY 5A 120V CHASSIS |
3,722 |
|
规格书 |
LD | Bulk | Active | Time Counter, Timer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 4.000" (101.00mm) | Voltage | Relay | Multi-Voltage | External, Front Panel, Programmable | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

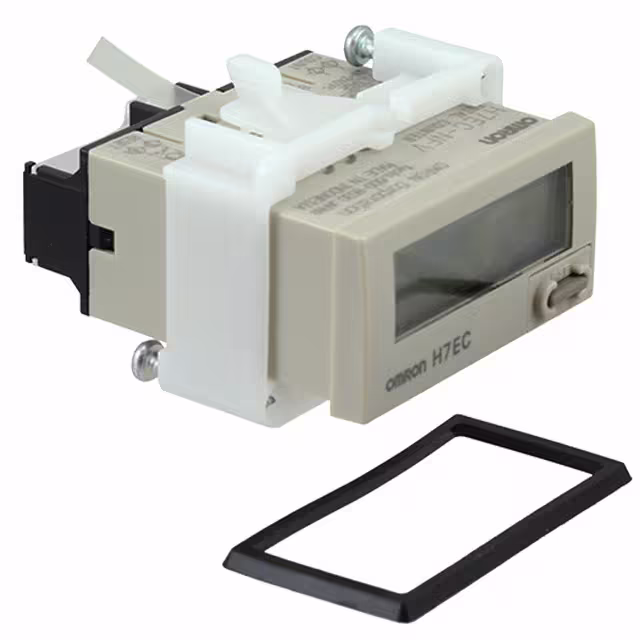

H7EC-NFVCOUNTER LCD 8 CHAR PANEL MOUNT |
1,221 |
|
规格书 |
H7EC | Bulk | Active | Totalizer | Up | 20Hz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CTA4101DOUTPUT 2: RELAY / RS-485, DC 24V |
1,974 |
|
规格书 |
CTA | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - Dual Color Characters, Backlight | - | No Voltage, Voltage | Relay | 24VDC | Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | - |
|
H7ER-NV-BHTACHOMETER LCD 4 CHAR PANEL MT |
4,112 |
|
规格书 |
H7ER | Bulk | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7EC-NV-HCOUNTER LCD 8 CHAR PANEL MOUNT |
4,302 |
|
规格书 |
H7EC | Bulk | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ET-NCOUNTER LCD 7 CHAR PANEL MOUNT |
2,432 |
|
规格书 |
H7ET | Box | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

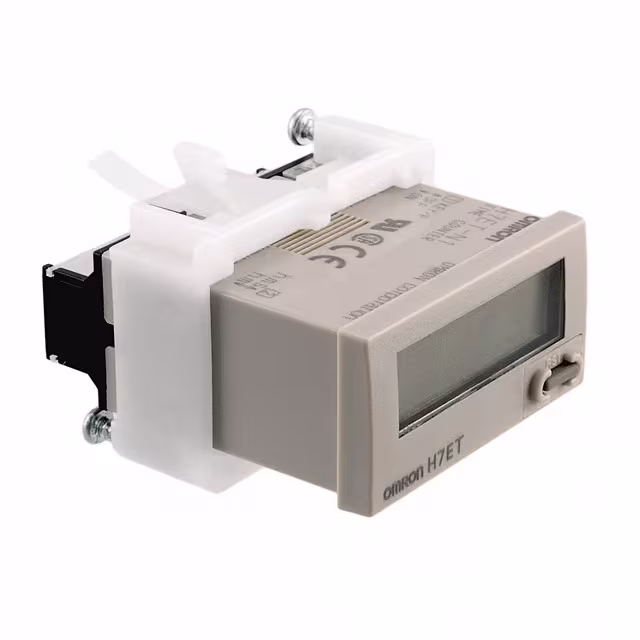

H7ET-N1COUNTER LCD 7 CHAR PANEL MOUNT |
1,619 |
|
规格书 |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

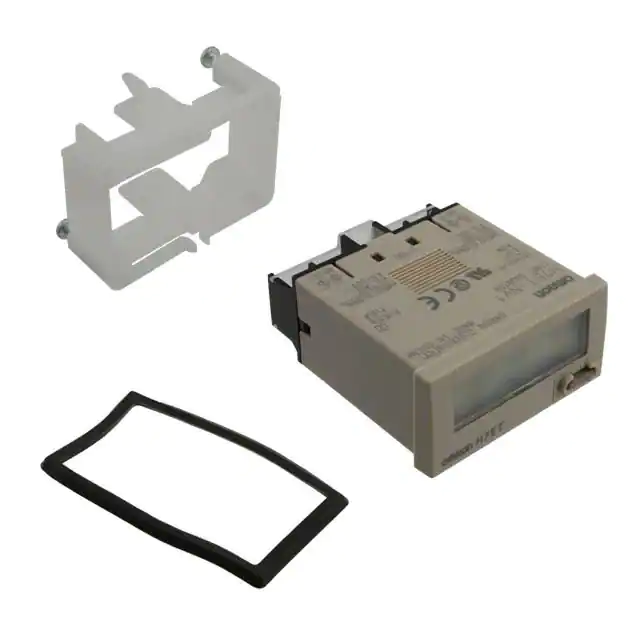

H7ET-NV1COUNTER LCD 7 CHAR PANEL MOUNT |
2,550 |
|
规格书 |
H7ET | Box | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ER-NV1-BTACHOMETER LCD 5 CHAR PANEL MT |
2,892 |
|
规格书 |
H7ER | Box | Active | Tachometer | Up | 10kHz | - | 5 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7ET-NFVCOUNTER LCD 7 CHAR PANEL MOUNT |
3,954 |
|
规格书 |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CUB5TR00COUNTER LCD 8 CHAR 9-28V PNL MT |
1,812 |
|
规格书 |
CUB5T | Box | Active | Preset, Time Counter | Up, Down | 500Hz | - | 8 | LCD - Black Characters | 0.460" (11.70mm) | No Voltage | Option Cards Available | 9 ~ 28VDC | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CUB4L020COUNTER LCD 6 CHAR 3.6V PANEL MT |
3,447 |
|
规格书 |
CUB4 | Box | Active | Totalizer | Up | 50Hz, 5kHz | - | 6 | LCD - Red Characters, Backlight | 0.480" (12.20mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXLC600COUNTER LED 6 CHAR 115/230V PNL |
2,253 |
|
规格书 |
PAX®LITE | Bulk | Active | Totalizer | Up, Down | 25kHz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | - | 115/230VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CS013COUNTER LCD 6 CHAR 24V PANEL MT |
2,972 |
|
规格书 |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-ASDCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
1,070 |
|
规格书 |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CC-A8COUNTER,DIGITAL,1-STAGE/TOTAL/PR |
3,145 |
|
规格书 |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|

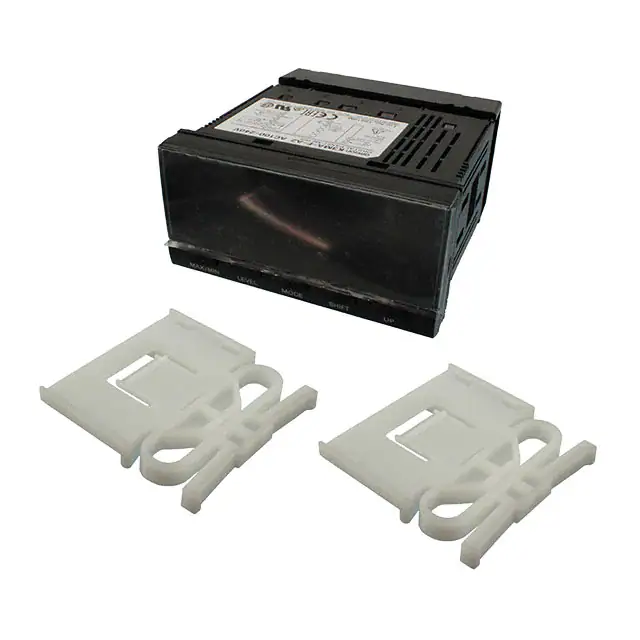

K3MA-F-A2 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
3,100 |
|
规格书 |
K3MA-F | Bulk | Active | Tachometer | Up | 5kHz | - | 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm) | No Voltage, Voltage | Relay (2) | 100 ~ 240VAC | - | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXR0030TACHOMETER LED 5 CHAR 24V PNL MT |
3,204 |
|
规格书 |
PAX | Bulk | Active | Tachometer | Up, Down, Quadrature | 34kHz, 50Hz | - | 5 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

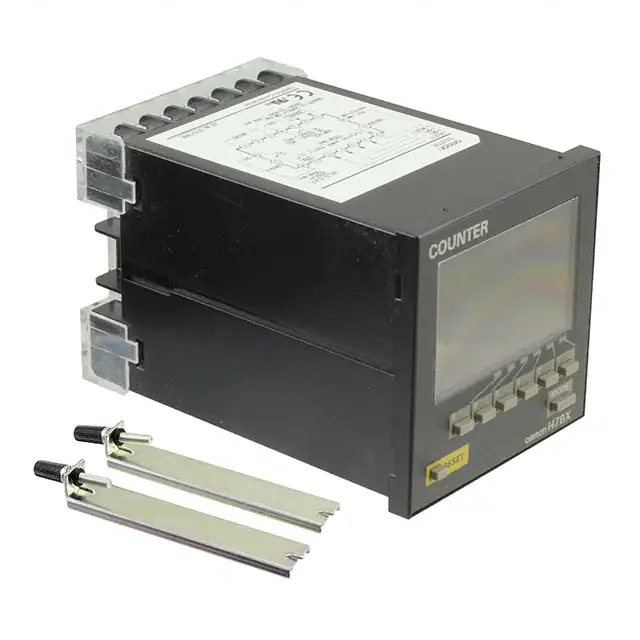

H7BX-AD1 AC24DC1224COUNTER LCD 6 CHAR 24V PANEL MT |
3,383 |
|
规格书 |
H7BX | Bulk | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.531" (13.50mm), 0.354" (9.00mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
