购物车计数器、计时器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUB7CCR0COUNTER LCD 8 CHAR 3.6V PANEL MT |
4,039 |
|
规格书 |
CUB7 | Box | Active | Totalizer | Up | 30Hz, 50Hz, 5kHz, 10kHz | - | 8 | LCD - Red Characters, Backlight | 0.350" (8.90mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|
H7ET-NV1-BCOUNTER LCD 7 CHAR PANEL MOUNT |
4,688 |
|
规格书 |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

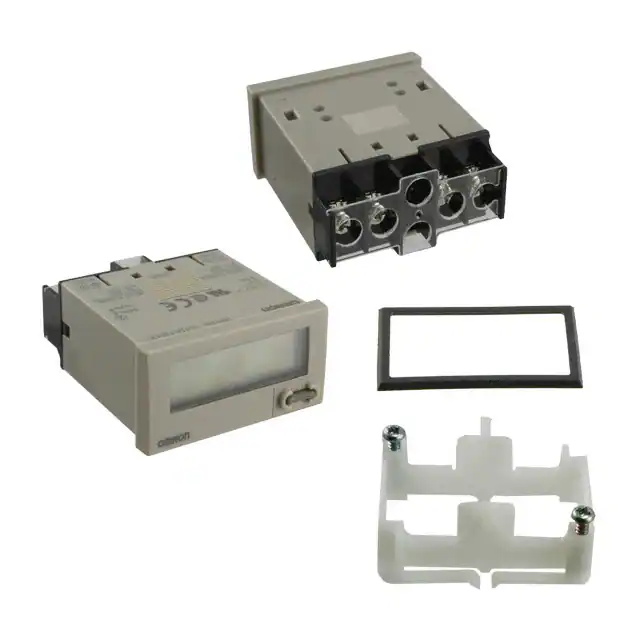

H7EC-NVCOUNTER LCD 8 CHAR PANEL MOUNT |
4,159 |
|
规格书 |
H7EC | Box | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ER-NV1-BHTACHOMETER LCD 5 CHAR PANEL MT |
4,241 |
|
规格书 |
H7ER | Box | Active | Tachometer | Up | 10kHz | - | 5 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7ET-NFV-BCOUNTER LCD 7 CHAR PANEL MOUNT |
1,543 |
|
规格书 |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H5CC-ADTIMER,SCREW,CON,12-48 DC,24 AC |
4,359 |
|
规格书 |
H5CC | Box | Active | Time Counter (Hour Meter) | Up, Down | - | Multiple | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.60mm x 45.60mm | DIN Rail | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXLR000TACHOMETER LED 6 CHAR 115/230V |
4,176 |
|
规格书 |
PAX®LITE, PAXLR | Bulk | Active | Tachometer | Up | 25kHz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | - | 115/230VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CS003COUNTER LCD 6 CHAR 85-250V PANEL |
3,347 |
|
规格书 |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CS103COUNTER LCD 6 CHAR 85-250V PANEL |
2,966 |
|
规格书 |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-A8DCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
4,044 |
|
规格书 |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
PAXTM000COUNTER LED 6 CHAR 85-250V PANEL |
2,755 |
|
规格书 |
PAXTM | Box | Active | Time Counter (Hour Meter) | Up | - | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 85 ~ 250VAC | Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXR0020TACHOMETER LED 5 CHAR 85-250V |
2,360 |
|
规格书 |
PAX | Bulk | Active | Tachometer | Up, Down, Quadrature | 34kHz, 50Hz | - | 5 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXC0020COUNTER LED 6 CHAR 85-250V PANEL |
3,697 |
|
规格书 |
PAX | Bulk | Active | Totalizer | Up, Down, Quadrature | 34kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CB103COUNTER LCD 6 CHAR 85-250V PANEL |
1,552 |
|
规格书 |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2), Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-AWCOUNTER/TACHOMETER,DIGITAL,MULTI |
4,435 |
|
规格书 |
H7CC | Box | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PM500D0301600F00GRAPHICAL PANEL METER, PM-50, 3. |
4,160 |
|
规格书 |
PM-50 | Bulk | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Quadrature | 35kHz | - | 9 | TFT - Color (Touch) | - | Voltage | Analog | 24VDC | Programmable | - | DIN Rail, Panel Mount | Spring Terminal | - |
|
PAXC0030COUNTER LED 6 CHAR 24V PANEL MT |
2,498 |
|
规格书 |
PAX | Bulk | Active | Totalizer | Up, Down, Quadrature | 34kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXI0020TACHOMETER LED 6 CHAR 85-250V |
1,202 |
|
规格书 |
PAX | Box | Active | Tachometer, Totalizer | Up, Down, Command, Quadrature | 34kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PM500D0400800F00GRAPHICAL PANEL METER, PM-50, 4. |
2,097 |
|
规格书 |
PM-50 | Bulk | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Quadrature | 35kHz | - | 9 | TFT - Color (Touch) | - | Voltage | Analog | 24VDC | Programmable | - | DIN Rail, Panel Mount | Spring Terminal | - |
|

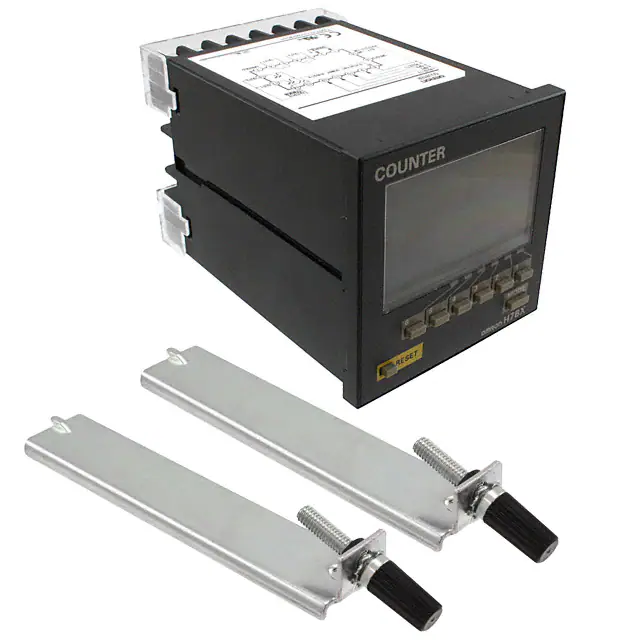

H7BX-AWD1 AC24/DC12-24COUNTER LCD 6 CHAR 24V PANEL MT |
4,182 |
|
规格书 |
H7BX | Bulk | Active | Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.531" (13.50mm), 0.354" (9.00mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
