三端双向可控硅、SCR 输出光隔离器

型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	通道数	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	电流 - 保持 (Ih)	开启时间	电压 - 正向 (Vf)（典型值）	电流 - 直流正向（If）（最大值）	工作温度	安装类型	供应商设备封装	认证机构
PC3SF21YTZAF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	4,286	-	立即询价	规格书	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	1	5000Vrms	600 V	1kV/µs	10mA	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
PC3SD11NXPCF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics	3,052	-	立即询价	规格书	-	6-SMD	Tape & Reel (TR)	Obsolete	Triac	No	1	5000Vrms	600 V	1kV/µs	5mA	100 mA	3.5mA	100µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Surface Mount	6-SMD	CSA, UR
PC3SD21YXPLF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics	4,844	-	立即询价	规格书	-	6-SMD	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	Yes	1	5000Vrms	600 V	1kV/µs	-	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Surface Mount	6-SMD	CSA, UR, VDE
PC4SF11YVZBF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	3,576	-	立即询价	规格书	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	1	5000Vrms	800 V	50V/µs	7mA	100 mA	3.5mA	100µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
PC4SF21YVZCF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	3,355	-	立即询价	规格书	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	1	5000Vrms	800 V	500V/µs	5mA	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
PC4SD21NXZCF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics	4,326	-	立即询价	规格书	-	6-SMD	Tube	Obsolete	Triac	Yes	1	5000Vrms	800 V	500V/µs	5mA	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Surface Mount	6-SMD	CSA, UR
PC4SF11YVZAF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	2,566	-	立即询价	规格书	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	1	5000Vrms	800 V	50V/µs	10mA	100 mA	3.5mA	100µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE

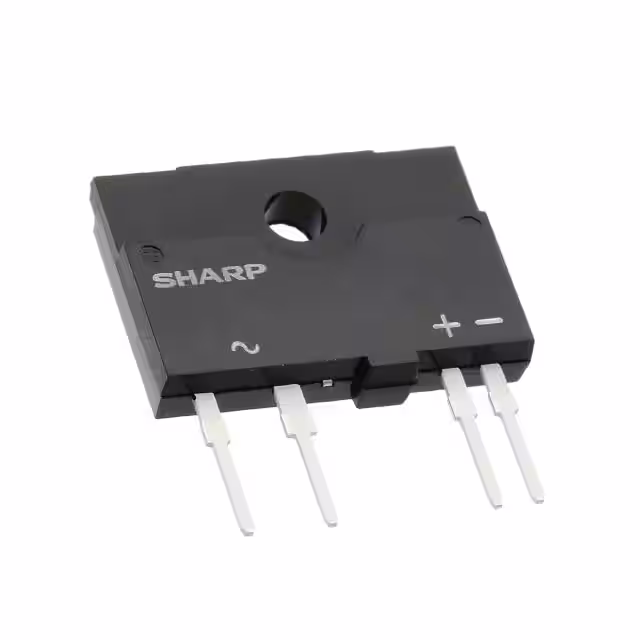

S208T02F OPTOISOLATOR 3KV PWR TRIAC 4SIP Sharp Microelectronics	4,693	-	立即询价	规格书	-	4-SIP	Tube	Obsolete	Triac, Power	Yes	1	3000Vrms	600 V	30V/µs	8mA	8 A	50mA	10ms (Max)	1.2V	50 mA	-25°C ~ 100°C	Through Hole	4-SIP	UL
PC1S3021NTZF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	4,604	-	立即询价	-	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	1	5000Vrms	400 V	1kV/µs	15mA	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	CSA, UR
PC1S3052NTZF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	3,939	-	立即询价	-	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	1	5000Vrms	600 V	1kV/µs	10mA	100 mA	3.5mA	50µs (Max)	1.2V	50 mA	-30°C ~ 100°C	Through Hole	6-DIP	CSA, UR

共 90 记录«上一页 1 2 3 4 5 678 9 下一页»
