购物车三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3SG11YIZOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
1,014 |
|
规格书 |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | UR, VDE |
|
|
PC3SG11YIZ0FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
2,001 |
|
规格书 |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | UR, VDE |
|
|
PC3SG21YIZ0FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
1,186 |
|
- |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 10mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | UR, VDE |
|
S2S5AOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
2,583 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
S2S4B00FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
2,065 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
S2S3B00FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
2,363 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
S2S3LB0FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
3,001 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
PC3SD11NTZBOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
2,536 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD21NTZDOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
1,190 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

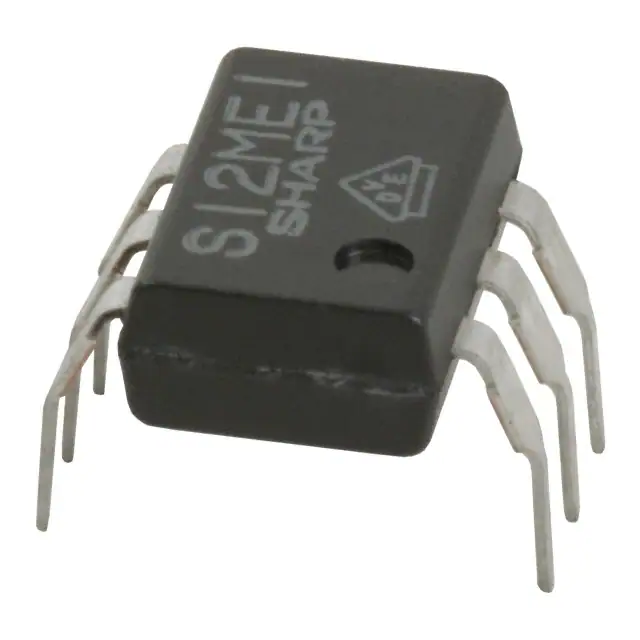

S12ME1FYOPTOISOLATOR 4KV SCR 6DIP Sharp Microelectronics |
1,343 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | SCR | No | 1 | 4000Vrms | 400 V | 3V/µs | 10mA | 200 mA | 1mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, UR, VDE |
