购物车逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSL-7210-00REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
5,193 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO |
|
|
ACSL-7210-50REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
182 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO |
|
FOD8012AR2OPTOISO 3.75KV 2CH PUSH PULL 8SO |
4,548 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-SOIC |
|
|
FOD8012AOPTOISO 3.75KV 2CH PUSH PULL 8SO |
2,473 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-SOIC |
|

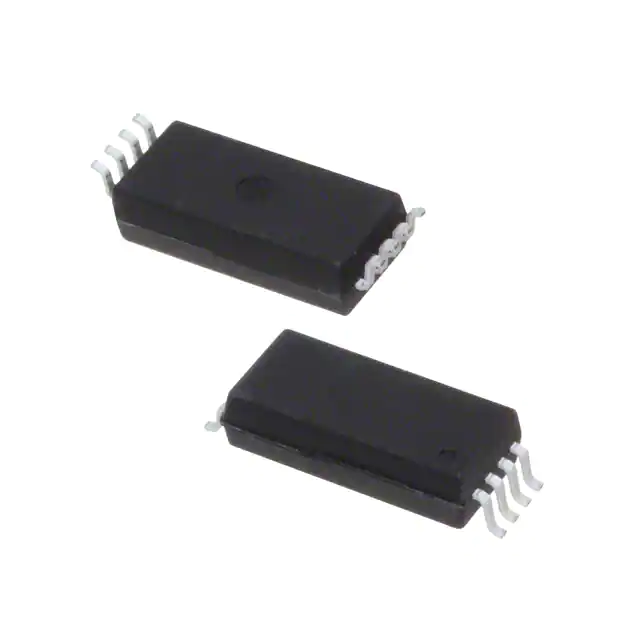

ACNT-H61L-500EOPTOISO 7.5KV PUSH PULL 8SO |
5,860 |
|
规格书 |
- | 8-SOIC (0.535", 13.60mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | 10MBd | - | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
HCPL-2631OPTOISO 3.75KV 2CH OPEN COL 8DIP |
822 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-0211OPTOISO 3.75KV PUSH PULL 8SO |
2,159 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
H11N1MOPTOISO 4.17KV OPN COLL 6DIP |
300 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
|
HCPL-0720-000EOPTOISO 3.75KV PUSH PULL 8SO |
3,134 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
H11N1SR2MOPTOISO 4.17KV OPN COLL 6SMD |
1,670 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
HCPL-2300-000EOPTOISO 3.75KV OPEN COLL 8DIP |
2,981 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-0721-000EOPTOISO 3.75KV PUSH PULL 8SO |
1,928 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACSL-6300-50TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
2,193 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 3 | 3/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-2400-500EOPTOISO 3.75KV TRI-STATE 8DIP GW |
2,049 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-K73L-060EOPTOISO 5KV 2CH PUSH PULL 8SSO |
1,289 |
|
规格书 |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-2400-000EOPTOISO 3.75KV TRI-STATE 8DIP |
1,181 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
ACPL-K73L-560EOPTOISO 5KV 2CH PUSH PULL 8SSO |
1,411 |
|
规格书 |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-2231-000EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
2,022 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2231-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
23,734 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-074L-500EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
2,261 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
