购物车逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSL-6210-00REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
2,607 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
ACSL-6210-50REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
4,754 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
ACPL-064L-500EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
1,603 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
ACPL-064L-560EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
11,782 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0630-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
8,124 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0630-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
14,538 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-M61T-500EOPTOISO 4KV OPN COLLECTOR 5SO |
11,483 |
|
规格书 |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-074L-000EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
3,839 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0631-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,287 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0631-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
5,011 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL0611R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
882 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL-0710-000EOPTOISO 3.75KV PUSH PULL 8SO |
2,331 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0710-500EOPTOISO 3.75KV PUSH PULL 8SO |
9,691 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063L-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
4,621 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063L-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,768 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

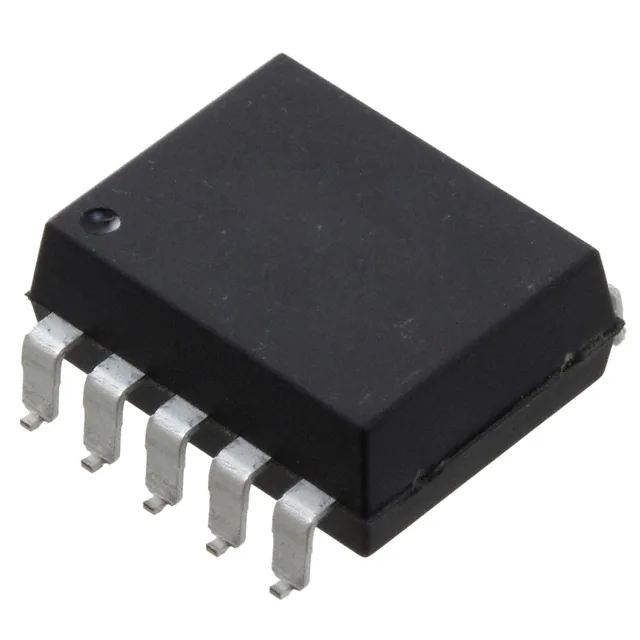

ACNV2601-500EOPTOISO 7.5KV OPEN COLL 10DIP GW |
653 |
|
规格书 |
- | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing |
|
HCPL-2630OPTOISO 3.75KV 2CH OPEN COL 8DIP |
2,250 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-7710-000EOPTOISO 3.75KV PUSH PULL 8DIP |
1,899 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
HCPL-7710-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
3,065 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-K64L-560EOPTOISO 5KV 2CH PUSH PULL 8SO |
11,672 |
|
规格书 |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
