购物车机器视觉 - 镜头
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

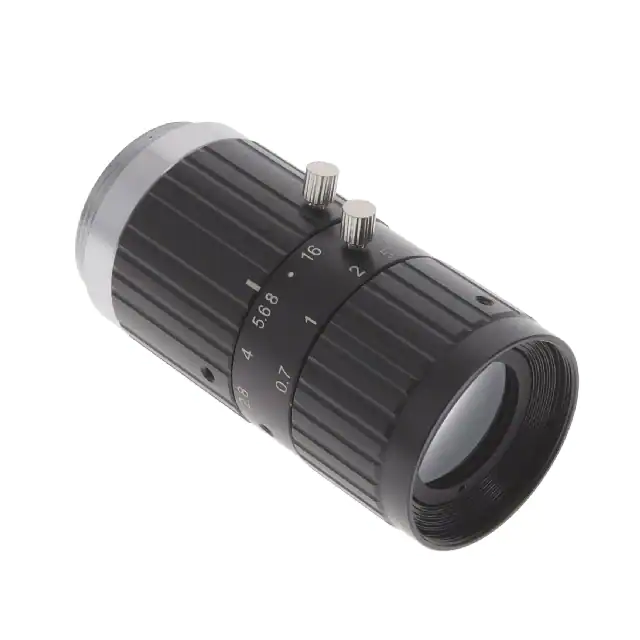

VFA1-230-10M50LENS STD F2.8-F16 0.11X-0.188X NEW TRY |
1,780 |
|
规格书 |
- | Case | Active | Standard | 50.0mm | 0.11x ~ 0.188x | F2.8 ~ F16 | 2/3" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 300mm | 12.4mm | - | 0.1% | M27 x 0.5 | 29.0mm Dia | 56.1mm | C-Mount | -10°C ~ 50°C |
|

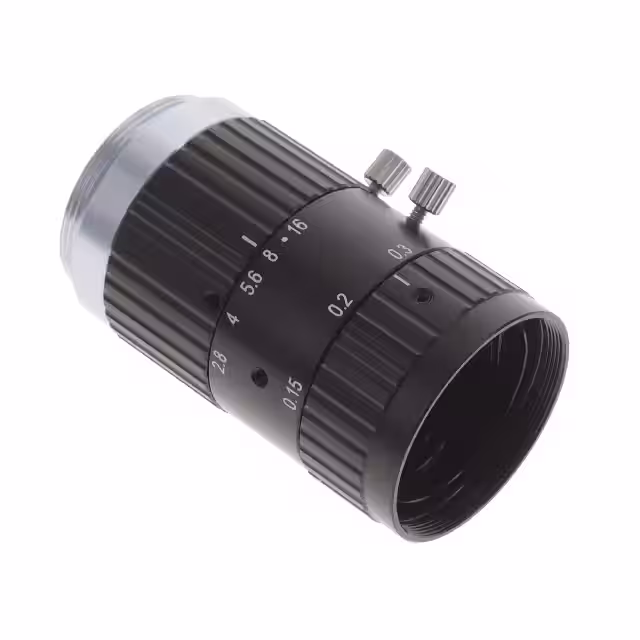

VFA1-230-10M35LENS STD F2.8-F16 0.007X-0.347X NEW TRY |
1,813 |
|
规格书 |
- | Case | Active | Standard | 35.0mm | 0.007x ~ 0.347x | F2.8 ~ F16 | 2/3" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 100mm | 16.6mm | - | 0.03% ~ 0.1% | M27 x 0.5 | 29.0mm Dia | 46.7mm | C-Mount | -10°C ~ 50°C |
|

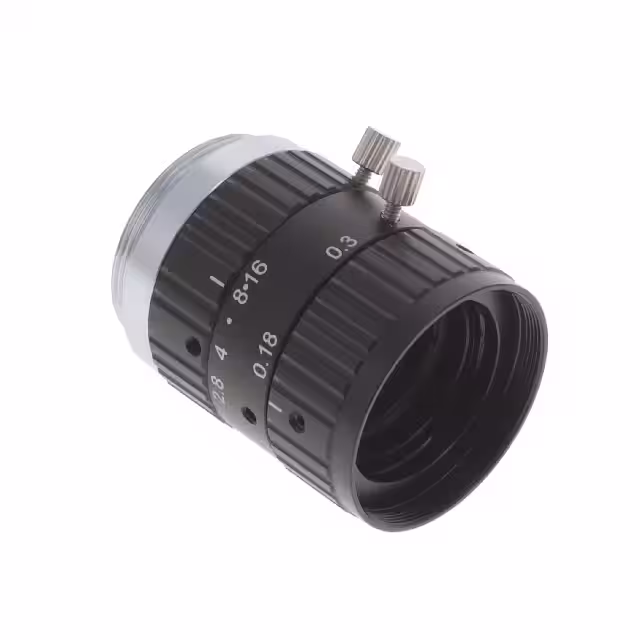

VFA1-230-10M25LENS W ANG F2.8-F16 0.005-0.246X NEW TRY |
1,156 |
|
规格书 |
- | Case | Active | Wide Angle | 25.0mm | 0.005x ~ 0.246x | F2.8 ~ F16 | 2/3" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 100mm | 14.3mm | - | 0.1% | M27 x 0.5 | 29.0mm Dia | 33.8mm | C-Mount | -10°C ~ 50°C |
|
VFA1-110-5M16LENS WIDE ANG F1.4-F16 C-MOUNT NEW TRY |
3,660 |
|
- |
- | Case | Active | Wide Angle | 16.0mm | - | F1.4 ~ F16 | 1" | 604.6 x 806.9mm ~ 66.0 x 88.2mm | 1000mm ~ 100mm | 22.8mm | - | 0.1% ~ 0.2% | M46 x 0.75 | 50.0mm Dia | 58.2mm | C-Mount | -10°C ~ 50°C |
|

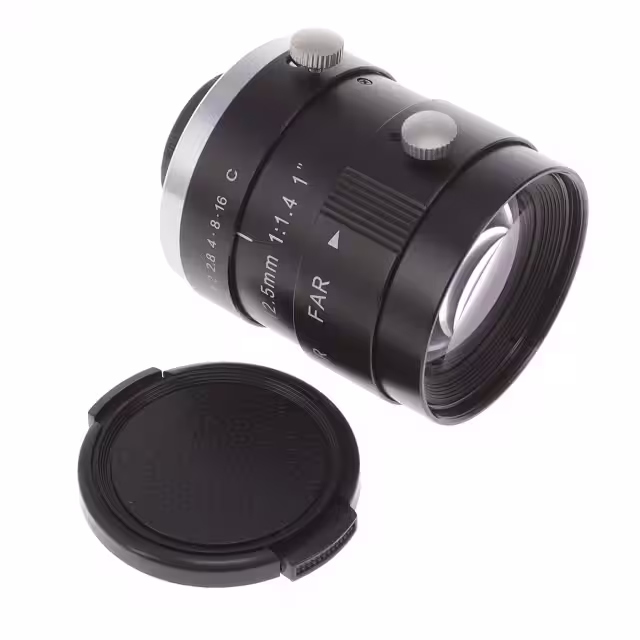

VFA1-110-5M12.5LENS WIDE ANG F1.4-F16 C-MOUNT NEW TRY |
3,860 |
|
- |
- | Case | Active | Wide Angle | 12.5mm | - | F1.4 ~ F16 | 1" | 705.9 x 941.2mm ~ 93.0 x 126.4mm | 900mm ~ 100mm | 15.7mm | - | 0.4% ~ 1.8% | M46 x 0.75 | 50.0mm Dia | 57.6mm | C-Mount | -10°C ~ 50°C |
|

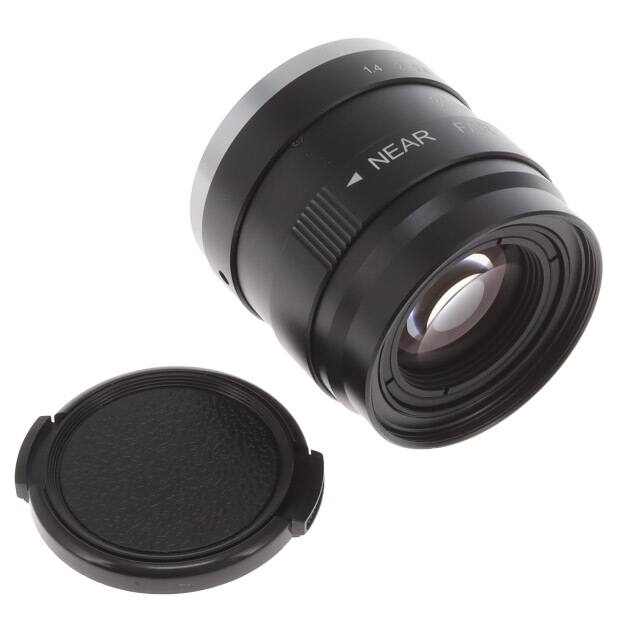

VFA1-110-5M35LENS STANDARD F1.4-F16 C-MOUNT NEW TRY |
3,320 |
|
- |
- | Case | Active | Standard | 35.0mm | - | F1.4 ~ F16 | 1" | 269.6 x 356.0mm ~ 39.7 x 53.2mm | 1000mm ~ 150mm | 11.2mm | - | 0.1% | M46 x 0.75 | 52.0mm Dia | 53.0mm | C-Mount | -10°C ~ 50°C |
|

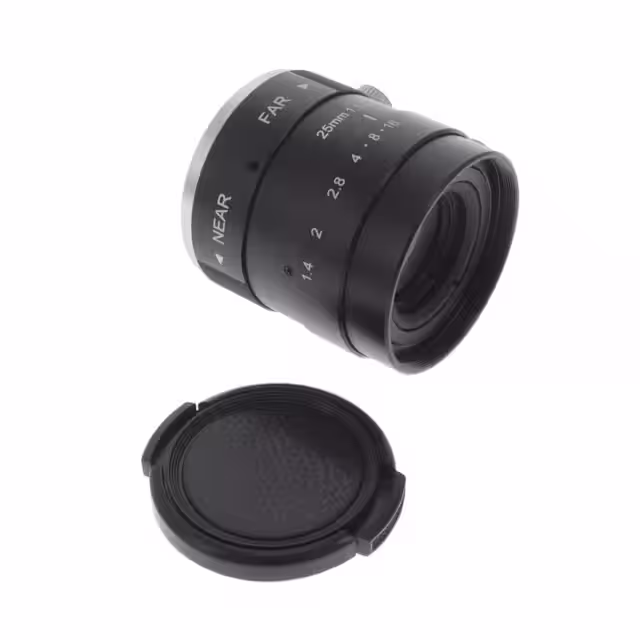

VFA1-110-5M25LENS WIDE ANG F1.4-F16 C-MOUNT NEW TRY |
4,021 |
|
- |
- | Case | Active | Wide Angle | 25.0mm | - | F1.4 ~ F16 | 1" | 295.4 x 393.9mm ~ 35.6 x 47.4mm | 800mm ~ 100mm | 23.0mm | - | 0.1% ~ 0.2% | M40.5 x P0.5 | 44.8mm Dia | 47.7mm | C-Mount | -10°C ~ 50°C |
|
VFA4-111-20M16LENS 1.1 20MP 16MM C-MOUNT NEW TRY |
3,295 |
|
- |
- | Case | Active | - | 16.0mm | - | - | 1.1" | - | - | - | - | - | - | - | - | C-Mount | - |
|

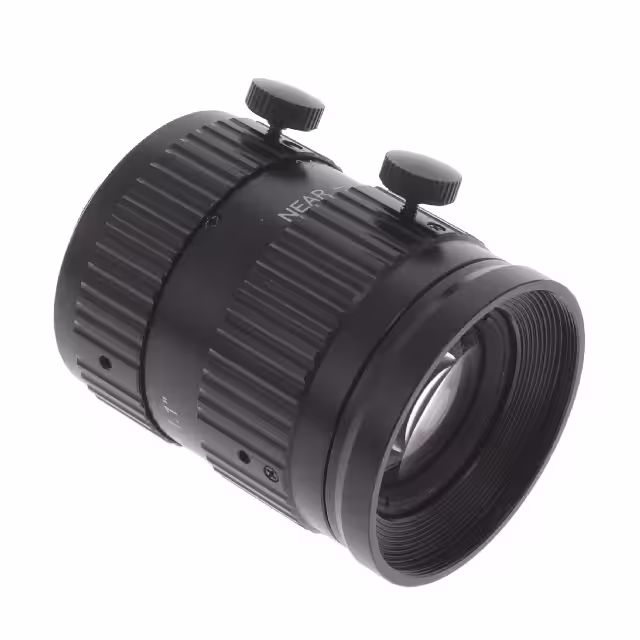

VFA4-111-20M35LENS STD F2.4-F16 0.007X-0.376X NEW TRY |
4,006 |
|
规格书 |
- | Case | Active | Standard | 35.0mm | 0.007x ~ 0.376x | F2.4 ~ F16 | 1.1" | 1559.3 x 2079.1mm ~ 28.2 x 37.5mm | 5000mm ~ 100mm | 22.2mm | - | 0.05% ~ 0.1% | M35.5 x P0.5 | 38.0mm Dia | 49.1mm | C-Mount | -40°C ~ 80°C |
|

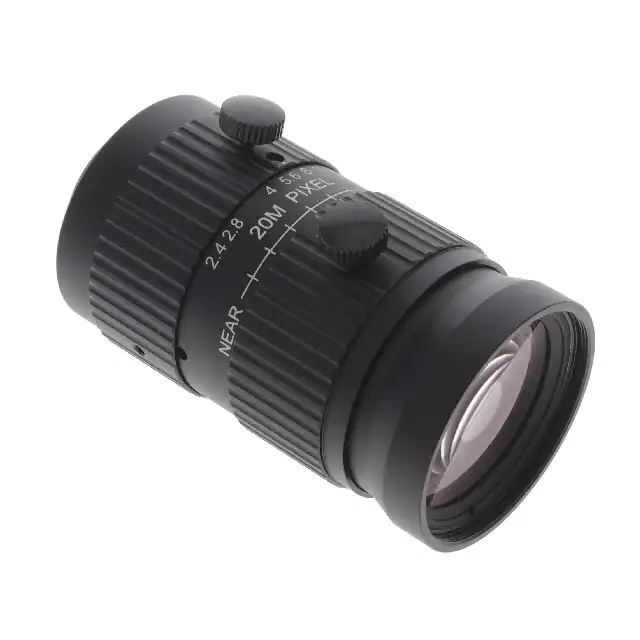

VFA4-111-20M25LENS W ANG F2.4-F16 0.005-0.216X NEW TRY |
1,149 |
|
规格书 |
- | Case | Active | Wide Angle | 25.0mm | 0.005x ~ 0.216x | F2.4 ~ F16 | 1.1" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 100mm | 34.0mm | - | 0.1% ~ 0.2% | M35.5 x P0.5 | 38.0mm Dia | 71.9mm | C-Mount | -40°C ~ 80°C |
