当前位置：首页 > 商品目录 > 光学检测设备 > 机器视觉 - 镜头

制造商	系列	包装	产品状态	类型	焦距	放大倍率	焦比	兼容的最大传感器尺寸	视场	工作距离	景深	分辨率	电视失真	滤镜尺寸	直径	长度	安装类型	工作温度
Balluff Banner Engineering Corporation Commonlands di-soric EDATEC Excelitas Technologies Festo Corporation Leopard Imaging Inc. NEW TRY NI Omron Automation and Safety Panasonic Industrial Automation Sales Pepperl+Fuchs, Inc. SICK, Inc.	* - 1.1" 20-25MP 1.2" Up to 25MP 2/3" 8-12MP 2/3" Up to 5MP 3Z4S-LE ML Apo-Rodagon Apo-Rodagon-D Apo-Rodagon-HR Apo-Rodagon-N Automotive Automotive/Ingress Protected FZ2 FZM1 inspec.x L Inspec.x M LC Linos® d.fine HR LM Low Distortion Low Distortion/Ingress Protected Macro CCD MeVis-C MeVis-CF Micro-Imagechecker® Rodagon Rodagon-F Rodagon-M42 Rodagon-WA Rogonar-S SV SV-H SV-V Telephoto VE VS-H1 VS-MC VS-MCL	- Bag Box Bulk Case Retail Package Tray	Active Discontinued at BomKey Obsolete	- Fast Fisheye Low Distortion Macro No Distortion Standard Telephoto Wide Angle	- 0.8mm 1.2mm 1.5mm 1.8mm 1.9mm 100.0mm 105.0mm 11.9mm 12.0mm 12.0mm ~ 36.0mm 12.5mm 120.0mm 128.0mm 135.0mm 15.0mm 16.0mm 18.0mm 2.0mm 2.2mm 2.7mm 2.8mm 2.9mm 20.0mm 24.0mm 25.0mm 28.0mm 3.1mm 3.2mm 3.3mm 3.5mm 3.6mm 3.8mm 3.9mm 35.0mm 4.0mm 4.2mm 4.3mm 4.4mm 40.0mm 5.0mm 50.0mm 6.0mm 6.2mm 6.5mm 6.8mm 60.0mm 7.8mm 75.0mm 8.0mm 8.5mm 80.0mm 85.0mm 90.0mm	- 0.002x ~ 0.074x 0.002x ~ 0.109x 0.0032x ~ 0.148x 0.0032x ~ 0.15x 0.003x ~ 0.087x 0.005x ~ 0.037x 0.005x ~ 0.216x 0.005x ~ 0.221x 0.005x ~ 0.246x 0.0069x ~ 0.1805x 0.007x ~ 0.058x 0.007x ~ 0.347x 0.007x ~ 0.376x 0.009x ~ 0.075x 0.009x ~ 0.076x 0.013x ~ 0.113x 0.013x ~ 0.178x 0.014x ~ 0.077x 0.018x ~ 0.145x 0.018x ~ 0.162x 0.01x ~ 0.179x 0.025x ~ 0.177x 0.028x ~ 0.253x 0.028x ~ 0.296x 0.033x ~ 0.5x 0.036x ~ 0.193x 0.03x ~ 0.2x 0.043x ~ 0.196x 0.05x ~ 0.5x 0.066x ~ 0.25x 0.066x ~ 0.5x 0.067x ~ 0.5x 0.06x ~ 0.52x 0.06x ~ 0.5x 0.075x ~ 0.4x 0.07x ~ 0.5x 0.11x ~ 0.188x 0.125x ~ 0.5x 0.1x 0.1x ~ 0.5x 0.25x ~ 0.45x 0.33x ~ 0.8x 0.35x ~ 0.65x 0.3x 0.3x ~ 3x 0.4x ~ 0.65x 0.4x ~ 0.8x 0.5x 0.6x ~ 0.9x 0.85x ~ 1.2x 0.8x ~ 1.2x 0x ~ 0.075x 0x ~ 0.15x 0x ~ 0.1x 0x ~ 0.25x 0x ~ 0.2x 0x ~ 0.5x 1.0x 2.0x 2.8x ~ 3.3x 3.2x ~ 3.5x 3.3x ~ 3.7x 3.3x ~ 4.0x 4.0x 4.8x ~ 5.2x	- F1 F1.3 F1.4 F1.4 ~ F16 F1.5 F1.6 F1.6 ~ F16 F1.8 F1.8 ~ F16 F1.9 F2 F2 ~ F16 F2.2 F2.2 ~ F16 F2.3 F2.4 F2.4 ~ F16 F2.5 F2.6 F2.7 F2.8 F2.8 ~ F16 F2.8 ~ F22 F3.0 F3.2 F3.5 F3.6 F4 F4.2 F4.4 F4.5 F5.2 F5.6 F8	- 1" 1.1" 1.2" 1.4" 1.8" 1/1.2" 1/1.7" 1/1.8" 1/2" 1/2.3" 1/2.5" 1/2.7" 1/3" 1/3.6" 1/4" 2.8" 2/3"	- 10.8° x 14.3° 10.8° x 14.4° 100.0mm 100° @ 8.0mm 102.0mm 1035.5 x 1379.0mm ~ 59.3 x 79.0mm 105.0mm 11.0mm 11.28° x 15.04° 1181.0 x 1574.0mm ~ 151.0 x 202.0mm 12.8° x 12.8° 121° @ 7.0mm 123° @ 8.8mm 1268.2 x 1690.9mm ~ 192.8 x 257.0mm 134° @ 7.0mm 13° @ 8.0mm 14.9° x 19.8° 140.5° x 185° 15.0° x 20.0° 1528.2 x 2029.0mm ~ 58.7 x 78.2mm 1559.3 x 2079.1mm ~ 28.2 x 37.5mm 16.0mm 16° @ 11mm 174.5 x 232.7mm ~ 83.5 x 111.3mm 17° @ 11mm 17° @ 19.4mm 18.3° x 18.3° 180° x 200° 186° @ 5.2mm 190.8 x 254.4mm ~ 18.3 x 24.4mm 190° @ 8.0mm 190° @ 9.1mm 192.3 x 256.6mm ~ 59.2 x 79.3mm 195° @ 4.7mm 19° @ 8.0mm 200° @ 6.4mm 2085.0 x 2780.0mm ~ 49.1 x 65.4mm 21.9° x 29° 21.9° x 38.9° 2120.0 x 2820.0mm ~ 48.0 x 63.8mm 215° @ 6.8mm 22.8° x 30.1° 220° @ 4.0mm 23.1° x 30.6° 25.1° x 25.1° 25° @ 11mm 269.6 x 356.0mm ~ 39.7 x 53.2mm 26° @ 11mm 28° @ 6.2mm 295.4 x 393.9mm ~ 35.6 x 47.4mm 3.6° x 4.8° 30.2° x 39.6° 30° x 40° 31° @ 19.4mm 32.0mm 3361.0 x 4473.2mm ~ 72.4 x 96.5mm 34.5° x 48° 36° x 61° 37° @ 11mm 38.6° x 38.6° 38° @ 11mm 39° @ 17.6mm 40.0mm 4065.3 x 5420.4mm ~ 121.0 x 161.3mm 42.3° x 54.6° 4295.3 x 5727.0mm ~ 105.6 x 141.0mm 42° @ 19.4mm 43.3mm 43.5° x 60.49° 44.0mm 44.6° x 57.3° 44.9° x 57.6° 45° x 57.8° 46.0mm 49.5° x 71° 49° @ 11mm 50.8° x 50.8° 51° @ 11mm 52° @ 7.6mm 56.0mm 56.7° x 71.9° 56.8° x 71.5° 6.6° x 6.6° 604.6 x 806.9mm ~ 66.0 x 88.2mm 60° @ 7.2mm 60° @ 8.8mm 61° x 77.5° 62.0mm 62° @ 8.0mm 63° @ 19.4mm 66° @ 7.0mm 67° @ 11mm 69° x 88° 7.5° x 10.0° 7.9° x 10.5° 70.4mm 70.8mm 705.9 x 941.2mm ~ 93.0 x 126.4mm 71.6° x 88.5° 71.8° x 71.8° 74.0mm 74° x 122° 769.5 x 1026.0mm ~ 94.3 x 125.7mm 76° @ 8.8mm 8.6° x 8.6° 82.0mm 82.7° x 100° 82° x 112° 84° @ 19.4mm 85° @ 7.9mm 85° x 102° 87.3° x 87.3° 8° @ 11mm 92° @ 8.0mm 966.9 x 1289.2mm ~ 149.4 x 199.2mm 9° @ 7.5mm	- 1000mm (Min) 1000mm ~ 100mm 1000mm ~ 150mm 1000mm ~ 200mm 1000mm ~ 300mm 100mm (Min) 100mm ~ 130mm 1200mm (Min) 1200mm ~ 300mm 122mm ~ 1025mm 123mm ~ 782mm 124mm (Min) 124mm ~ 1545mm 126.3mm (Min) 138mm ~ 232mm 1400mm ~ 800mm 143mm ~ 975mm 150mm (Min) 153.7 ~ 1025mm 153mm ~ 190mm 153mm ~ 707mm 159mm (Min) 159mm ~ 1067mm 159mm ~ 1275mm 172mm ~ 273mm 175mm ~ 625mm 183mm ~ 241mm 184.8mm (Min) 184mm ~ 1178mm 18mm ~ 20mm 2000mm (Min) 2000mm ~ 300mm 200mm (Min) 201mm ~ 793mm 216mm ~ 1406mm 218mm ~ 1298mm 228mm ~ 330mm 241mm ~ 1426mm 242mm ~ 456mm 252mm ~ 794mm 260mm (Min) 271mm ~ 729mm 280mm ~ 965mm 282mm ~ 1825mm 285 ~ 1725mm 28mm ~ 34mm 292mm ~ 1853mm 300mm 300mm (Min) 300mm ~ 488mm 302mm ~ 2037mm 30mm (Min) 325.5mm (Min) 334mm (Min) 34mm ~ 40mm 355mm (Min) 370mm (Min) 385mm ~ 1475mm 400mm (Min) 408.5 ~ 2050.2mm 42.3 ~ 492.2mm 5000mm ~ 100mm 5000mm ~ 200mm 5000mm ~ 300mm 500mm (Min) 52.8 ~ 1010.8mm 553mm (Min) 57.9 ~ 722.9mm 6000mm ~ 500mm 62.2 ~ 1437mm 66mm ~ 68mm 670mm (Min) 75mm 75mm ~ 79mm 78mm ~ 84mm 800mm ~ 100mm 82.4mm (Min) 900mm ~ 100mm 900mm ~ 150mm 90mm 94mm (Min) 94mm ~ 1027mm 99.6mm ~ 417.5mm	- 0.7mm 1.3 ~ 367.0mm 1.8 ~ 367.0mm 10.4mm 10.5mm 10.6mm 10.7mm 10.9mm 11.2mm 11.4mm 11.5mm 11.6mm 12.3mm 12.4mm 12.5mm 12.7mm 12.8 ~ 1050.0mm 12.8mm 12.9mm 13.0mm 13.6mm 13.7mm 13.8mm 14.0mm 14.3mm 14.9mm 15.7mm 16.0mm 16.6mm 17.4 ~ 27.1mm 19.0mm 2.0 ~ 97.6mm 2.0mm 2.3 ~ 183.1mm 2.7 ~ 735.0mm 21.1mm 22.2mm 22.4mm 22.8mm 22.9mm 23.0mm 29.6mm 3.2 ~ 94.1mm 3.5 ~ 134.0mm 3.8 ~ 1050.0mm 3.9 ~ 188.0mm 3.9 ~ 735.0mm 34.0mm 35.4mm 4.5 ~ 367.0mm 4.7mm 4.9 ~ 188.0mm 42.2 ~ 55.5mm 5.6 ~ 1050.0mm 5.6 ~ 269.0mm 6.5 ~ 188.0mm 7.1 ~ 269.0mm 8.7mm 9.0 ~ 735.0mm 9.0mm 9.2 ~ 269.0mm 9.2mm	- 10MP (1.55µm) 10MP (1.62µm) 10µm 11.6µm 12MP 12MP (1.55µm) 12MP (1.85µm) 12MP (2.74µm) 14MP (1.4µm) 14MP (1.55µm) 16MP (1.85µm) 20MP 25MP 2µm 30.5µm 3MP (3.0µm) 5MP (2.4µm) 5MP (3.45µm) 5MP (3µm) 5µm 6-8MP 7µm 8-12MP 8.2µm 8MP 8MP (1.62µm) 8MP (1.85µm) 8MP (2.0µm) 8MP (2.1µm)	+27% F-0 - -0.02% -0.07% -0.09% -0.10% -0.22% -0.5% -0.6% -0.8% -1% -1.36% -1.5% -10% -11% -13% -16.5% -2% -4.96% -5% -6% -7% -8% 0% 0.01% 0.01% ~ 0.02% 0.02% ~ 0.04% 0.03% ~ 0.1% 0.03% ~ 0.2% 0.05% 0.05% ~ 0.1% 0.05% ~ 0.2% 0.08% 0.09% 0.1% 0.1% ~ 0.2% 0.1% ~ 0.3% 0.1% ~ 0.5% 0.15% 0.3% 0.3% ~ 0.5% 0.35% 0.4% 0.4% ~ 0.8% 0.4% ~ 1.8% 0.5% 0.6% 0.8% ~ 1% 1% ~ 1.5% 1.2% 1.8% ~ 2.5% 3% ~ 5.5% <0.1% <0.2%	- M12 x P0.5 M22.5 x P0.5 M25.5 x P0.5 M27 x 0.5 M27 x P0.5 M30 x P0.75 M30.5 x 0.5 M30.5 x P0.5 M34 x P0.5 M35.5 x P0.5 M37 x 0.5 M37 x P0.75 M37.5 x P0.5 M40.5 x P0.5 M43 x P0.75 M46 x 0.75 M46 x P0.75 M49 x P0.75 M49 x P0.75/M40.5 x P0.5 M52 x P0.75 M55 x 0.75 M55 x P0.75 M58 x P0.75 M58 x P0.75/M40.5 x P0.5	- 13.0mm Dia 14.0mm Dia 16.0mm Dia 17.0mm Dia 17.4mm Dia 17.5mm Dia 18.0mm Dia 18.5mm Dia 19.0mm Dia 20.0mm Dia 22.0mm Dia 23.5mm Dia 24.0mm Dia 26.0mm Dia 26.8mm Dia 27.0mm Dia 28.0mm Dia 29.0mm Dia 29.5mm Dia 30.0mm Dia 30.5mm Dia 30.6mm Dia 31.0mm Dia 32.0mm Dia 32.9mm Dia 33.0mm Dia 33.5mm Dia 34.0mm Dia 35.0mm Dia 36.0mm Dia 37.0mm Dia 37.4mm Dia 37.5mm Dia 38.0mm Dia 38.2mm Dia 39.0mm Dia 39.3mm Dia 39.6mm Dia 39.8mm Dia 40.0mm Dia 40.5mm Dia 42.0mm Dia 43.0mm Dia 44.0mm Dia 44.8mm Dia 46.0mm Dia 47.0mm Dia 48.0mm Dia 50.0mm Dia 52.0mm Dia 53.0mm Dia 55.0mm Dia 57.0mm Dia 59.0mm Dia 60.0mm Dia 61.4mm Dia 62.0mm Dia 64.5mm Dia 65.6mm Dia 66.0mm Dia 70.0mm Dia 77.1mm Dia	- 105.0 ~ 130.2mm 105.3mm 107.6mm 110.0 ~ 135.0mm 111.1mm 14.6mm 14.7mm 14.9mm 15.5mm 15.9mm 16.4mm 16.5mm 16.8mm 18.1mm 18.3mm 18.4mm 18.6mm 18.7mm 19.0mm 19.6mm 19.9mm 20.6mm 21.0mm 21.5mm 22.0mm 22.1mm 22.4mm 22.5mm 22.9mm 23.4mm 23.5mm 24.0mm 24.4mm 24.5mm 24.9mm 25.0mm 25.4 ~ 29.5mm 25.4mm 27.3mm 27.8mm 27.9mm 29.0mm 29.5mm 29.9mm 30.0mm 30.1mm 30.3mm 30.4mm 30.9mm 31.1mm 31.3mm 31.4mm 31.6mm 32.4mm 32.8mm 33.0mm 33.5 ~ 35.6mm 33.5 ~ 37.5mm 33.8mm 33.9mm 34.0mm 34.4mm 34.5mm 35.0 ~ 39.1mm 35.0mm 35.9mm ~ 38.0mm 36.0mm 36.3mm 36.5mm 36.6mm 36.7mm 37.0 ~ 39.4mm 37.2mm 37.3mm 37.4mm 37.5mm 37.7mm 37.9mm 38.0mm 38.5mm 38.7mm 38.9mm 39.3mm 39.5mm 39.8mm 39.9mm 40.0mm 40.6mm 40.8mm 41.0mm 41.2mm 41.4mm 41.6mm 42.0 ~ 44.4mm 42.0mm 42.3mm 42.9mm 43.1mm 43.2mm 43.4mm 43.5mm 43.7mm 44.0mm 44.3mm 44.4mm 44.5 ~ 49.5mm 44.5mm 44.9mm 45.0 ~ 45.9mm 45.5mm 45.6mm 45.9mm 46.0mm 46.2mm 46.7mm 47.0mm 47.5mm 47.6mm 47.7mm 47.8mm 48.0 ~ 48.5mm 49.1mm 49.5 ~ 54.6mm 50.4mm 51.0mm 51.2mm 51.9mm 52.5mm 52.9mm 53.0mm 53.5mm 53.7mm 53.9mm 54.3mm 54.5mm 55.0mm 55.3mm 55.7mm 56.1mm 57.0mm 57.2mm 57.5mm 57.6mm 58.2mm 59.0mm 63.2mm 64.0 ~ 82.0mm 64.5mm 65.2mm 65.8mm 66.5 ~ 71.6mm 67.6mm 67.8mm 70.0mm 70.2mm 71.2mm 71.9mm 72.0 ~ 82.3mm 72.5mm 72.7mm 72.8mm 73.4mm 74.7mm 76.8mm 76.9mm 77.8mm 78.0mm 79.6mm 81.7mm 90.6mm 91.5 ~ 96.1mm 93.0mm 94.5mm 94.8mm 95.1mm 96.6mm 98.4mm 99.5 ~ 117.6mm	- C-Mount CS-Mount F-Mount Flexible M42-Mount S-Mount V-Groove	- -10°C ~ 50°C -20°C ~ 60°C -20°C ~ 70°C -30°C ~ 75°C -40°C ~ 80°C -40°C ~ 85°C -5°C ~ 50°C 0°C ~ 50°C

全部重置

应用所有

结果:

机器视觉 - 镜头

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	焦距	放大倍率	焦比	兼容的最大传感器尺寸	视场	工作距离	景深	分辨率	电视失真	滤镜尺寸	直径	长度	安装类型	工作温度
	VFA1-118-5M12 LENS W ANG F1 0.013X-0.113X C-MT NEW TRY	1,556	-	立即询价	规格书	-	Case	Active	Wide Angle	12.0mm	0.013x ~ 0.113x	F1	1/1.8"	2085.0 x 2780.0mm ~ 49.1 x 65.4mm	900mm ~ 100mm	12.5mm	-	0.3%	M25.5 x P0.5	26.8mm Dia	19.9mm	C-Mount	-10°C ~ 50°C

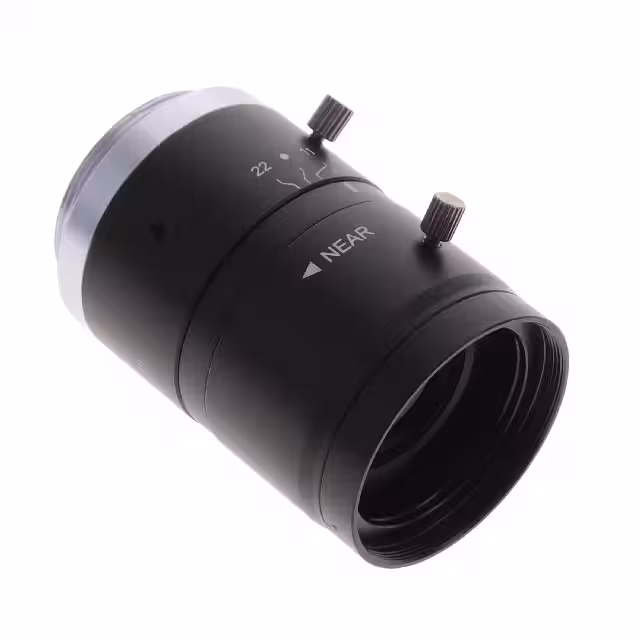

	VFA1-118-5M50 LENS STD F2.8-F22 0.043X-0.196X NEW TRY	3,789	-	立即询价	规格书	-	Case	Active	Standard	50.0mm	0.043x ~ 0.196x	F2.8 ~ F22	1/1.8"	4065.3 x 5420.4mm ~ 121.0 x 161.3mm	1200mm ~ 300mm	17.4 ~ 27.1mm	-	0.05%	-	30.6mm Dia	44.9mm	C-Mount	-10°C ~ 50°C

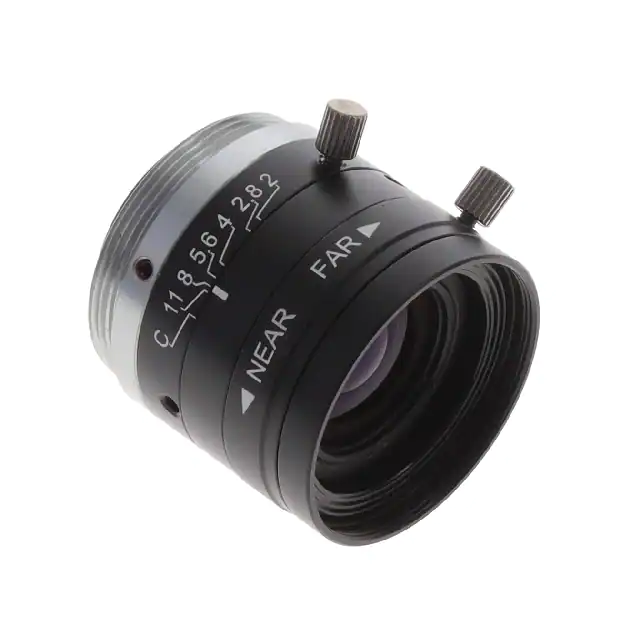

	VFA1-118-5M16 LENS W ANG F2 0.018X-0.162X C-MT NEW TRY	1,613	-	立即询价	规格书	-	Case	Active	Wide Angle	16.0mm	0.018x ~ 0.162x	F2	1/1.8"	4065.3 x 5420.4mm ~ 121.0 x 161.3mm	900mm ~ 100mm	12.7mm	-	0.1%	M25.5 x P0.5	26.8mm Dia	22.4mm	C-Mount	-10°C ~ 50°C

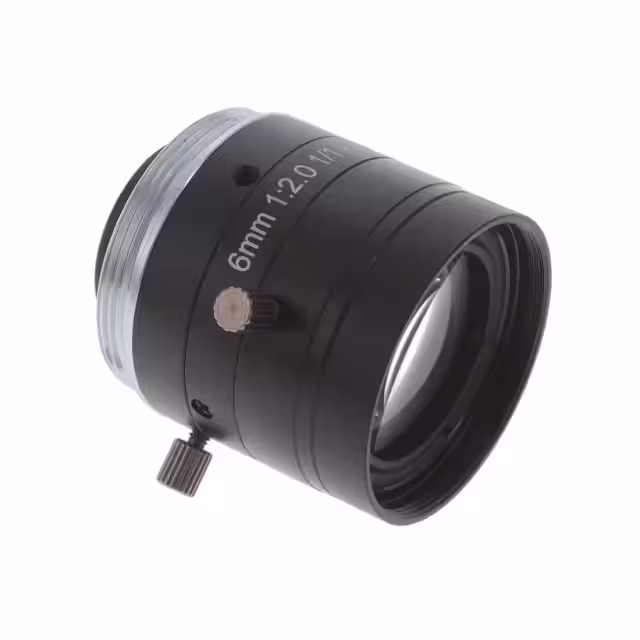

	VFA1-118-5M06 LENS W ANG F2 0.007X-0.058X C-MT NEW TRY	2,711	-	立即询价	规格书	-	Case	Active	Wide Angle	6.0mm	0.007x ~ 0.058x	F2	1/1.8"	769.5 x 1026.0mm ~ 94.3 x 125.7mm	900mm ~ 100mm	11.6mm	-	0.1%	M25.5 x P0.5	26.8mm Dia	23.5mm	C-Mount	-10°C ~ 50°C
	VFA1-118-5M08 LENS W ANG F2 0.009X-0.076X C-MT NEW TRY	1,792	-	立即询价	规格书	-	Case	Active	Wide Angle	8.0mm	0.009x ~ 0.076x	F2	1/1.8"	2085.0 x 2780.0mm ~ 49.1 x 65.4mm	900mm ~ 100mm	11.4mm	-	0.1%	M25.5 x P0.5	26.8mm Dia	25.0mm	C-Mount	-10°C ~ 50°C

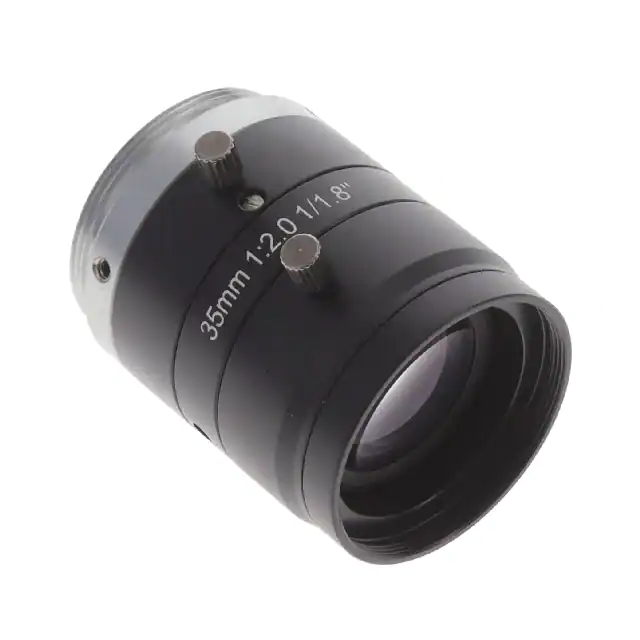

	VFA1-118-5M35 LENS STD F2 0.036X-0.193X C-MT NEW TRY	1,552	-	立即询价	规格书	-	Case	Active	Standard	35.0mm	0.036x ~ 0.193x	F2	1/1.8"	4065.3 x 5420.4mm ~ 121.0 x 161.3mm	1000mm ~ 200mm	19.0mm	-	0.1%	M25.5 x P0.5	28.0mm Dia	33.0mm	C-Mount	-10°C ~ 50°C

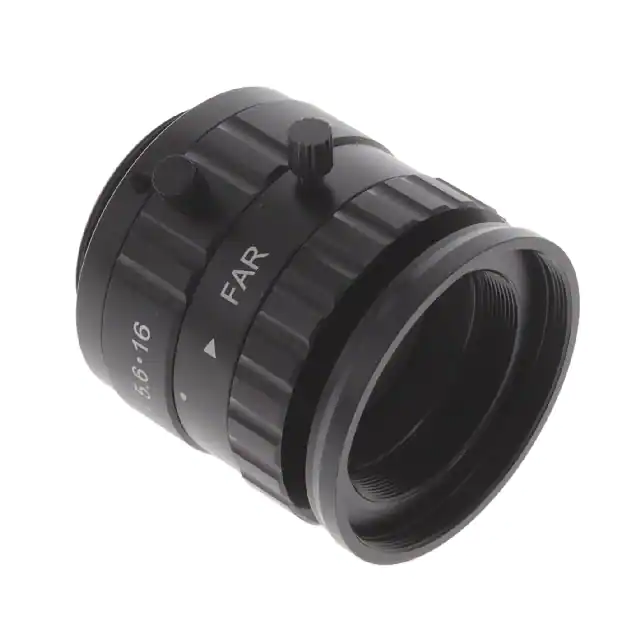

	VFA4-230-5M25 LENS WIDE ANG F1.6-F16 C-MOUNT NEW TRY	3,450	-	立即询价	规格书	-	Case	Active	Wide Angle	25.0mm	-	F1.6 ~ F16	2/3"	-	-	10.5mm	-	0.1%	-	33.0mm Dia	36.5mm	C-Mount	-
	VFA4-230-5M16 LENS WIDE ANG F1.6-F16 C-MOUNT NEW TRY	1,921	-	立即询价	规格书	-	Case	Active	Wide Angle	16.0mm	-	F1.6 ~ F16	2/3"	-	-	14.9mm	-	0.1%	-	33.0mm Dia	39.3mm	C-Mount	-
	VFA4-230-5M12 LENS WIDE ANG F1.6-F16 C-MOUNT NEW TRY	1,762	-	立即询价	规格书	-	Case	Active	Wide Angle	12.0mm	-	F1.6 ~ F16	2/3"	-	-	14.0mm	-	0.15%	-	37.0mm Dia	41.4mm	C-Mount	-
	VFA4-230-5M08 LENS WIDE ANG F1.6-F16 C-MOUNT NEW TRY	3,222	-	立即询价	规格书	-	Case	Active	Wide Angle	8.0mm	-	F1.6 ~ F16	2/3"	-	-	9.0mm	-	0.3%	-	37.0mm Dia	44.3mm	C-Mount	-

共 45 记录«上一页12 3 4 5 下一页»
