购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

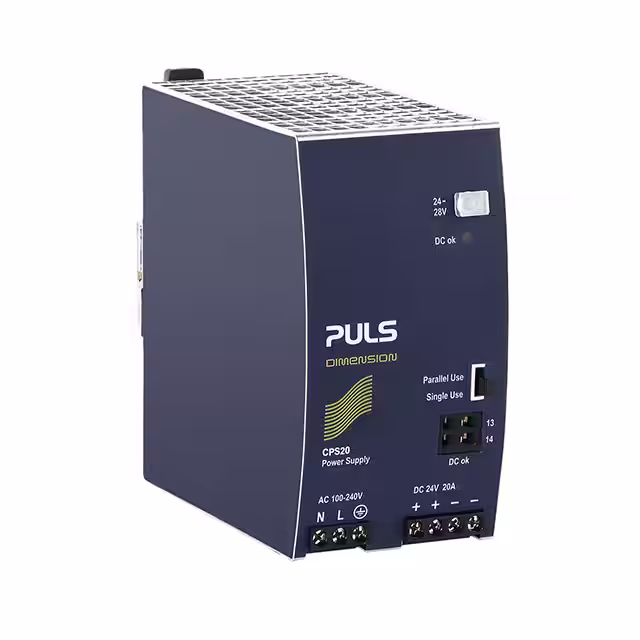

CPS20.241-C1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,933 |
|
规格书 |
DIMENSION C (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, EN, IEC, IECEx, UL | Class I Div 2; 508; 50155; 60950-1; 61010-2-201 |
|
XT40.362AC/DC DIN RAIL SUPPLY 36V 960W PULS, LP |
1,452 |
|
规格书 |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

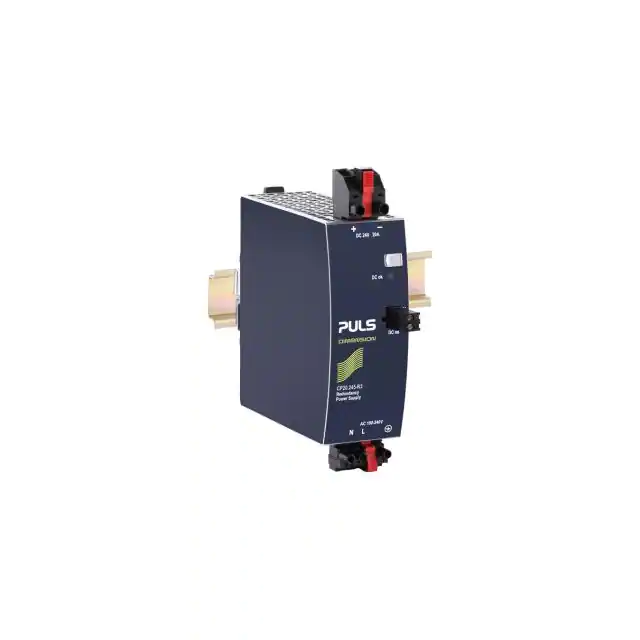

CP20.245-R2AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
3,952 |
|
规格书 |
CP | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial), Laboratory | 95.2% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | ATEX; IECEx; 60950-1; 61010-1; 62368-1 |
|

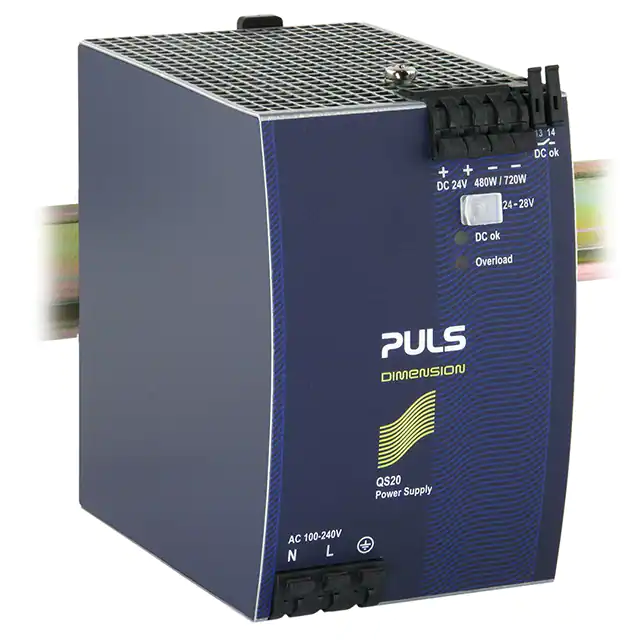

QS20.241-A1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,427 |
|
规格书 |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 93.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

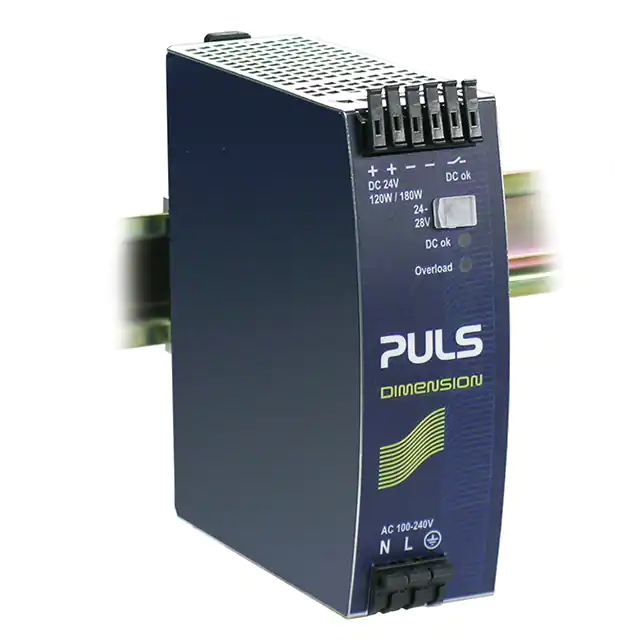

QS5.241-A1AC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
2,159 |
|
规格书 |
DIMENSION Q (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | 88V | 360V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Hazardous Locations, ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
QS10.481AC/DC DIN RAIL SUPPLY 48V 240W PULS, LP |
4,006 |
|
规格书 |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

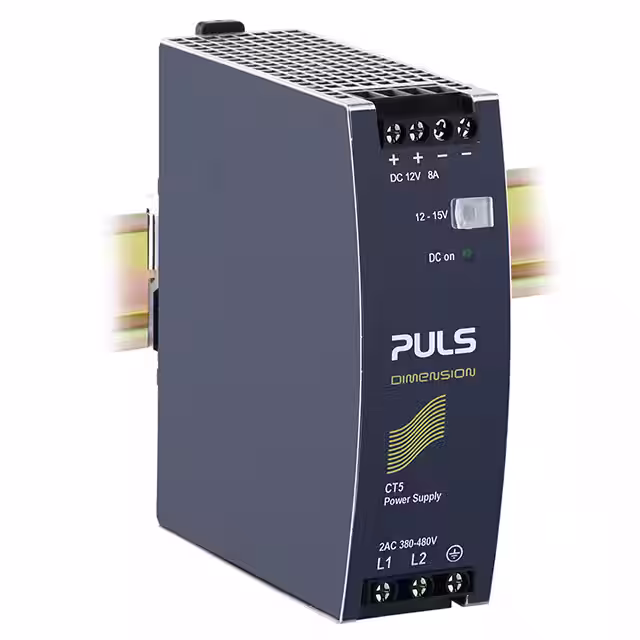

CT5.121AC/DC DIN RAIL SUPPLY 12V 96W PULS, LP |
1,391 |
|
规格书 |
DIMENSION C (96W) | Box | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 12V | - | - | - | - | - | 8A | 96W | 500 V | ITE (Commercial) | 85.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CD10.482DC/DC DIN RAIL SUPPLY 48V 240W PULS, LP |
3,889 |
|
规格书 |
DIMENSION CD (240W) | Box | Active | DC | 1 | - | 36V | 60V | 48V | - | - | - | - | - | 5A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 95.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | EAC, IEC, UL | 60950-1; 61010-2-201 |
|
CP20.241-R2-C1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,212 |
|
规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 93.8% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CE, cULus, EAC | - |
|
QS40.484AC/DC DIN RAIL SUPPLY 48V 960W PULS, LP |
3,877 |
|
规格书 |
DIMENSION Q (960W) | Box | Active | AC | 1 | 170 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
