购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT10.481AC/DC DIN RAIL SUPPLY 48V 240W PULS, LP |
3,448 |
|
规格书 |
DIMENSION C (240W) | Box | Active | AC | 1 | 380 ~ 480 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
QS10.241-D1AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
4,081 |
|
规格书 |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

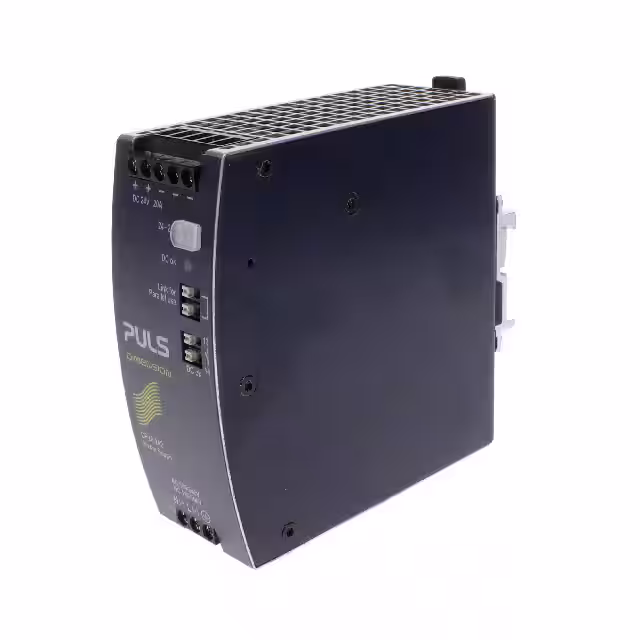

CP20.242AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
2,144 |
|
规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | EAC, IEC, UL | 61010-2-201 |
|
QS20.244AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,902 |
|
规格书 |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

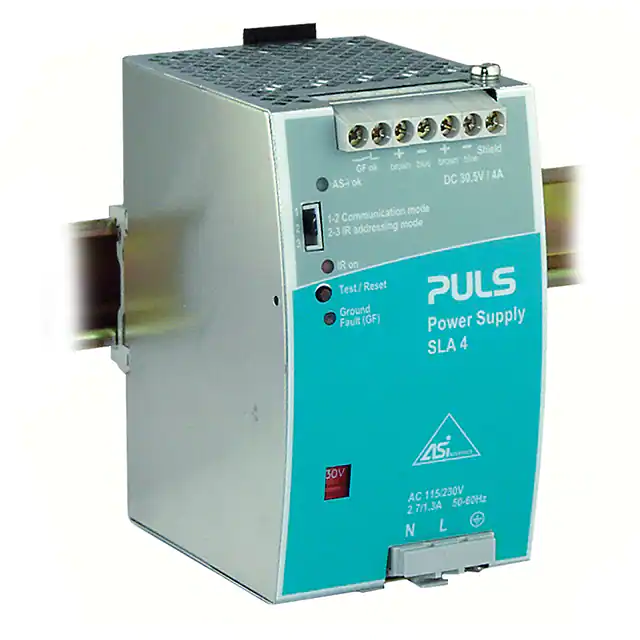

SLA4.100AC/DC DIN RAIL SUPPLY 30.6V 122W PULS, LP |
1,159 |
|
规格书 |
SilverLine, AS-Interface® | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 30.6V | - | - | - | - | - | 4A | 122W | - | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | IP20 | EAC, UL | 508; 60950-1 |
|
QS10.241-A1AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
3,267 |
|
规格书 |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
ML50.105AC/DC DIN RAIL SUPPLY 48V 50W PULS, LP |
3,311 |
|
规格书 |
MiniLine (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.05A | 50W | - | ITE (Commercial) | 90.3% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | EAC, IEC, NEC, UL | Class 2; 508; 60950-1; 61010-2-201 |
|
CP5.242AC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
4,655 |
|
规格书 |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | EAC, IEC, UL | 61010-2-201; 62368-1 |
|

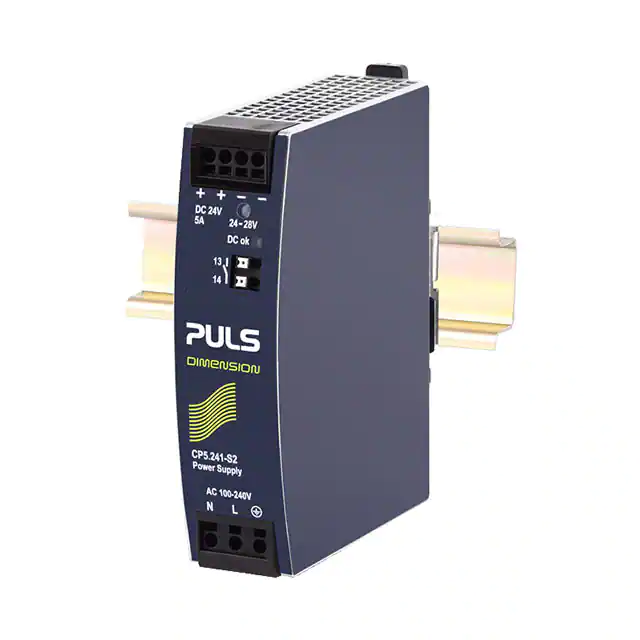

CP5.241-S2AC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
3,334 |
|
规格书 |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201; 62368-1 |
|

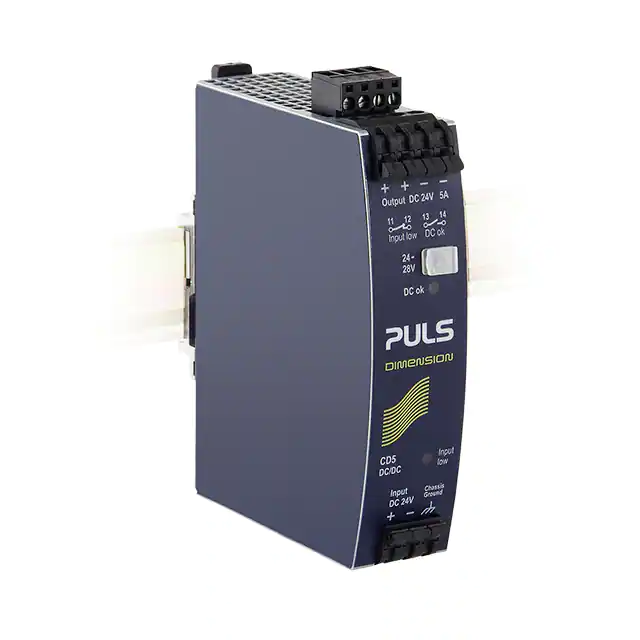

CD5.241-S1DC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
3,605 |
|
规格书 |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 18V | 32.4V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | - | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
